Part Number : 579-416-51

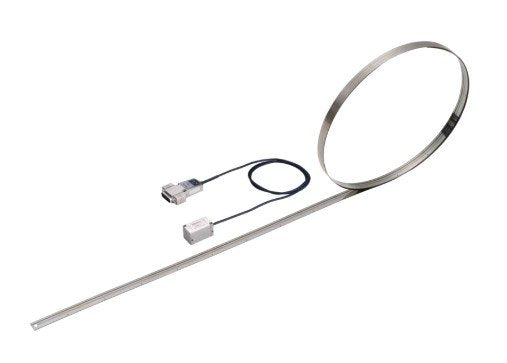

The Mitutoyo 579-416-51 Absolute Tape Scale is engineered for high-precision linear measurements in industrial automation and motion control systems. It offers a maximum effective length of 12 meters, making it suitable for large-scale applications. With an impressive minimum resolution of 0.001 µm, it ensures ultra-fine measurement accuracy. The system supports a maximum response speed of 8 m/s, enabling rapid and precise positioning. Utilizing absolute measurement technology, it retains position data even after power interruptions, eliminating the need for re-zeroing.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Interface	FANUC high-speed serial interface (+/- and +/-i interface are available)
Length	12 m
Max. Response Speed	8 m/s
Model Number	ABSST1351A-00800E
Resolution	0.001 µm
Series	ST1300
Type	Absolute Tape Scale

Absolute Encoder Technology – Retains precise position data after power loss without needing re-zeroing.
Long Measurement Range – Supports a maximum effective length of 12 meters, ideal for extended machine setups.
Exceptional Resolution – Provides a minimum resolution of 0.001 µm for ultra-precise measurements.
High-Speed Capability – Operates efficiently at speeds up to 8 m/s, ensuring fast and reliable positioning.
Rugged and Flexible Design – Designed to withstand tough industrial environments and varied installation conditions.
Optimized for Automation – Ideal for CNC machines, robotics, and other motion control applications requiring high accuracy.

DOWNLOAD CATALOG
