Part Number : 810-401-13

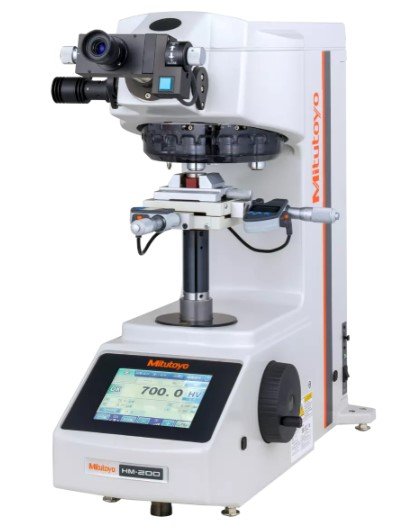

The Mitutoyo 810-401-13 Micro Vickers Hardness Testing Machine (HM-210 Manual Main Unit) is designed for precise microhardness testing of materials. It operates effectively within a temperature range of 5 to 40°C and is sensitive to vibrations above 5 Hz. This unit ensures accurate indentation measurements for quality control and material research. With a robust construction, it weighs 38.5 kg, offering stability during operation. Ideal for labs requiring consistent and reliable microhardness data.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Light Source	Light source illumination unit : White LED
Mass (main unit)	38.5 kg
Operation temperature	Operation temperature °C : 5-40
Optical system	Infinitely corrected
POWER CONSUMPTION	31
Power Supply	AC100 -240V Auto-selection
Relative Humidity	80% or lower without condensation
Series	810
Standard	Standard objective lenses : MH Plan 10x and 50x
Type	Micro Vickers Hardness Testing Machines
Vibration	5Hz or lower

High Precision Microhardness Testing – Delivers accurate and repeatable Vickers hardness measurements for small samples and thin materials.
Manual Operation Unit – Ideal for controlled, hands-on testing procedures in lab environments.
Stable Performance – Designed to operate within 5 to 40°C and resist interference from vibrations up to 5 Hz.
Compact and Durable – Weighs 38.5 kg for solid placement and reduced measurement error due to movement.
Quality Optics System – Integrated microscope ensures clear indentation visibility for precise measurements.

DOWNLOAD CATALOG
