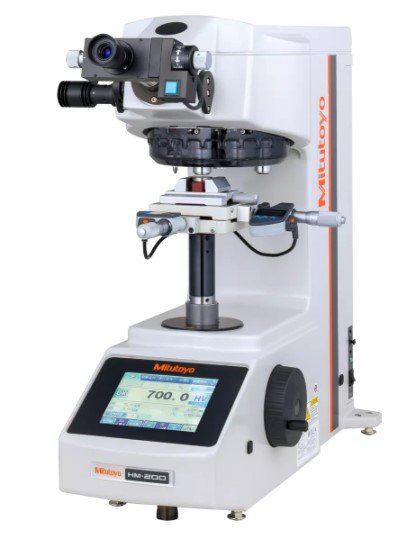

Mitutoyo 810-406-13-ASET1 | Micro Vickers Hardness Testing Machine | HM-220 A-Type Set | Operation Temperature 5 to 40°C | Vibration Frequency 5Hz or lower | Mass 41 kg

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 810-406-13-ASET1

The Mitutoyo 810-406-13-ASET1 HM-220 A-Type Set is a high-precision Micro Vickers hardness testing machine designed for detailed microhardness measurements. It operates effectively in standard laboratory conditions (5 to 40°C) and low-vibration environments (≤5 Hz). With a mass of 41 kg, it offers excellent stability during testing. This model features automated test force control and a user-friendly LCD touch interface. It is ideal for advanced materials analysis, quality control, and metallurgical research.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Dimensions	External dimensions WxDxH : 341x670x581 mm
Light Source	Light source illumination unit : White LED
Mass (main unit)	41 kg
Operation temperature	5-40
Optical system	Infinitely corrected
POWER CONSUMPTION	44
Power Supply	AC100 -240V Auto-selection
Relative Humidity	80% or lower without condensation
Series	810
Standard	Standard objective lenses : MH Plan 10x and 50x
Type	Micro Vickers Hardness Testing Machine
Vibration	5Hz or lower

High-Precision Micro Vickers Testing
Offers accurate hardness measurement for small and thin materials, ideal for microstructure analysis.
Wide Test Force Range
Supports a broad range of test forces (0.05 g to 2 kg), allowing versatility in testing various materials and coatings.
Automated Test Force Control
Features electromagnetic and automatic control for precise loading, dwelling, and unloading of the test force, ensuring repeatable results.
Infinity-Correction Optical System
Provides clear and precise indentation imaging, with high-resolution objectives (10x, 20x, 50x) for accurate measurements.
Intuitive LCD Touchscreen Interface
The user-friendly interface simplifies operation, with clear data display and easy access to test parameters and results.
Stable and Robust Construction
Weighing 41 kg, the unit is designed for stable operation, minimizing vibration impact during sensitive microhardness tests.
Multiple Data Output Options
Equipped with RS-232, Digimatic, and USB 2.0 interfaces for easy data transfer and integration with other systems.
Temperature & Vibration Resistance
Designed to operate in temperatures ranging from 5°C to 40°C and resistant to vibrations up to 5 Hz, ensuring reliability in varying conditions.

DOWNLOAD CATALOG
