Mitutoyo 810-440-13-ASET | Vickers Hardness Testing Machines | HV-110 A-Type Set | Operation Temperature 5 to 40°C | Vibration Frequency 10Hz or Lower | Mass 60.1 kg

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 810-440-13-ASET

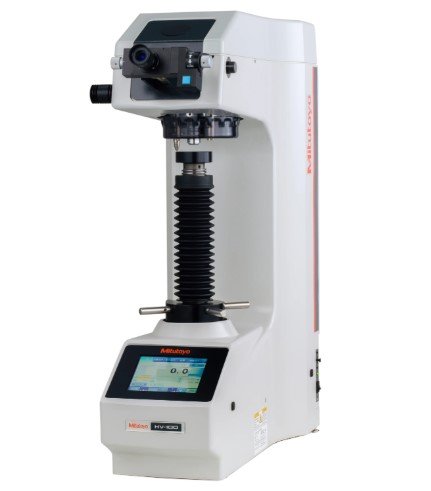

The Mitutoyo 810-440-13-ASET Vickers Hardness Testing Machine (HV-110 A-Type Set) is a high-precision hardness tester designed for reliable Vickers hardness measurement. It operates within a temperature range of 5°C to 40°C, ensuring stable performance in varying conditions. With a vibration frequency of 10Hz or lower, it minimizes external interference for accurate results. Weighing 60.1 kg, the machine offers solid stability during tests. The HV-110 A-Type Set comes with additional accessories, enhancing its versatility for different testing applications. It provides consistent and repeatable results, making it ideal for material analysis and quality control.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Control Type	5.7" touch screen display control
Control Type	Turret: Touch panel
Drive method	Turret: Motor/Manual
Height	Specimen: 210 mm
Indenters	Approach Speed: selectable 60 1/4m/s/150µm/s
Light Source	White LED
Mass (main unit)	60.1 kg
Objective Zoom	MH Plan 10x and 20x
Operation temperature	5-40°C
Optical system	Infinitely corrected
Port	Indenter: 1 (equipped)
Port	Objective Lens: 3 (2 equipped)
POWER CONSUMPTION	24 W
Power Supply	AC100 -240V Auto-selection
Range	Test Force: 9.807-490N (1-50kgf)
Relative Humidity	80% or lower without condensation
Resolution	RS-232C, SPC Digimatic D-type connection, USB
Standards	Vickers: ISO 6507-2, ASTM E92, ASTM E384, JIS B 7725
Switch Type	Test Force: Touch panel
Test force duration	5-999s. 1 s. increments
Throat Depth	170 mm
Type	Vickers Hardness Testing Machine
Vibration	10Hz or lower
WATER VOLUME	11AAB941
Weight	Specimen: 20 kg
XY Stage Size	Optional

Vickers Hardness Testing: Accurately measures hardness using the Vickers scale for a wide range of materials.
Temperature Range: Operates between 5°C and 40°C, ensuring stable and reliable performance across different environments.
Low Vibration: Vibration frequency of 10Hz or lower minimizes interference, providing precise and accurate test results.
Heavy-Duty Build: Weighs 60.1 kg, providing excellent stability for consistent and repeatable testing.
A-Type Set Accessories: Includes additional accessories, enhancing the machine's versatility for different hardness testing needs.
Reliable and Consistent: Ideal for material analysis and quality control, ensuring high-precision, repeatable results.
