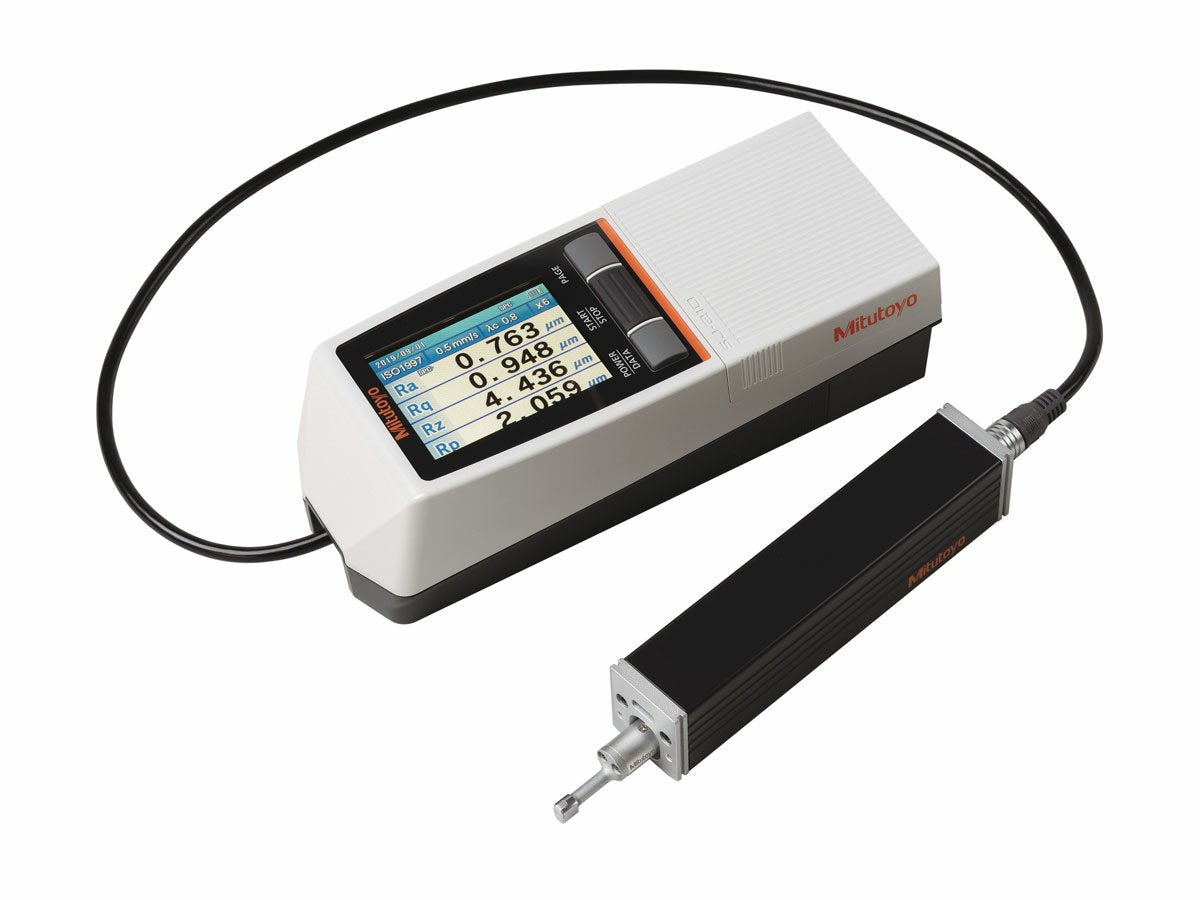

Mitutoyo Surftest SJ-210 | 4mN Measuring Force
This is a portable measuring instrument that allows you to easily and accurately measure surface roughness.
The Surftest SJ-210 offers you the following benefits:
- Skid system gives you user friendly and intuitive menu navigation.
- It works independently of mains power, allowing you to make on-site measurements.
- The 6.0 cm [2.4“] colour graphic, back-lit LCD gives you excellent readability.
- It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
- Different drivers expanding the range of applications.
- Calculation results, assessed profiles, bearing and amplitude curves can be displayed.
- Support of 16 languages.
- Operation by keys on the front and under the sliding cover.
- Specifications
- Features
- Downloads
| Digital filter | Gauss, 2CR75, PC75 |
| Mass (main unit) | 500 g |
| Measuring method | Differential inductance |
| Measuring range | 16 mm, 4.8 mm [S-type] |
| Measuring speed | 0.25 mm/s; 0.5 mm/s; 0.75 mm/s |
| Power Supply | AC adapter or rechargeable battery |
| Profiles | Roughness Profile (R), R-Motif, DF-Profile and more |
| Range | 360 µm |
| Roughness standard | EN ISO, VDA, JIS, ANSI and customize settings |
| Skid radius | 40 mm |
| Stylus | Diamond Tip |
- This is a portable measuring instrument that allows you to easily and accurately measure surface roughness.
The Surftest SJ-210 offers you the following benefits: - Skid system gives you user friendly and intuitive menu navigation.
- It works independently of mains power, allowing you to make on-site measurements.
- The 6.0 cm [2.4“] colour graphic, back-lit LCD gives you excellent readability.
- It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
- Different drivers expanding the range of applications.
- Calculation results, assessed profiles, bearing and amplitude curves can be displayed.
- Support of 16 languages.
- Operation by keys on the front and under the sliding cover.
