Noise Dosimeter | Measurement Range 55 dBA RMS to 140.1 dBA Peak
In order to measure occupational noise levels and hearing protection in accordance with health and safety requirements, the SV 104 noise dosimeter complies with IEC 61252 and ANSI S1.25-1991 specifications. In the wide measurement range of 55 dB to 140 dB, the equipment monitors noise dose and noise levels. Because the results are stored in three separately customizable profiles, the measurement can be carried out simultaneously for three different sets of settings (such exchange rates or time constants). A lifetime guarantee is provided for the proprietary MEMS microphone used in the SV 104 noise dosimeter. In accordance with the requirements of ISO 9612, OSHA, MSHA, and ACGIH, this guarantees that the noise exposure measurements are as precise as feasible.
- Specifications
- Features
- Downloads
| Dimensions | 88 x 49.5 x 19.2 mm |
| Frequency (Hz) | 20 Hz to 10 kHz |
| Memory Capacity | 8 GB |
| Operating Temperature | -10 oC to 50 oC |
| Range | 55 dBA RMS to 140.1 dBA Peak |
| Weight | 121 grams |
Acoustic Dosimeter conforming to IEC 61252 and ANSI S1.25-1991
Robust microphone and shock detection
Auto-calibration
OLED display
Audio recording and 1/1 octave analysis
ISO 9612 noise exposure
TWA and DOSE calculator
Related Products
Brannan 13/461/0 | Professional Sound Level Meter | 30 to 130 dB, IEC 61672-1 Class 2
Brannan 13/461/0 | Professional Sound Level Meter | 30 to 130 dB, IEC 61672-1 Class 2

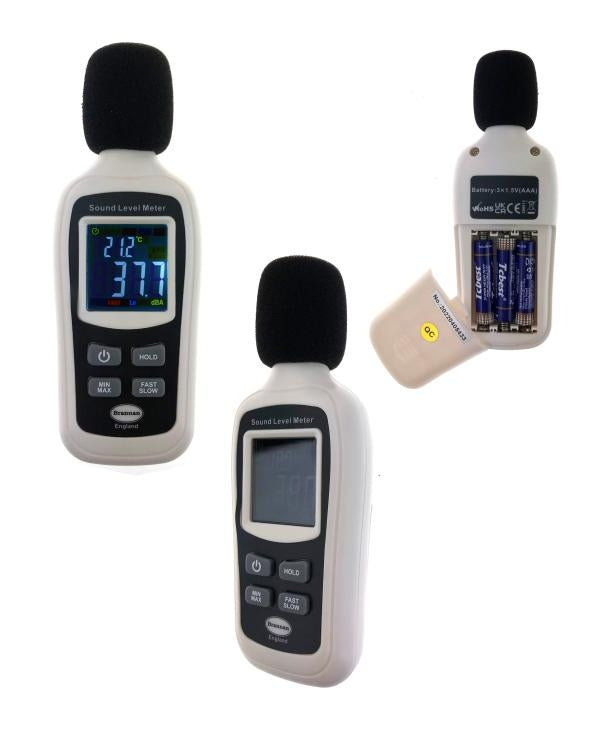

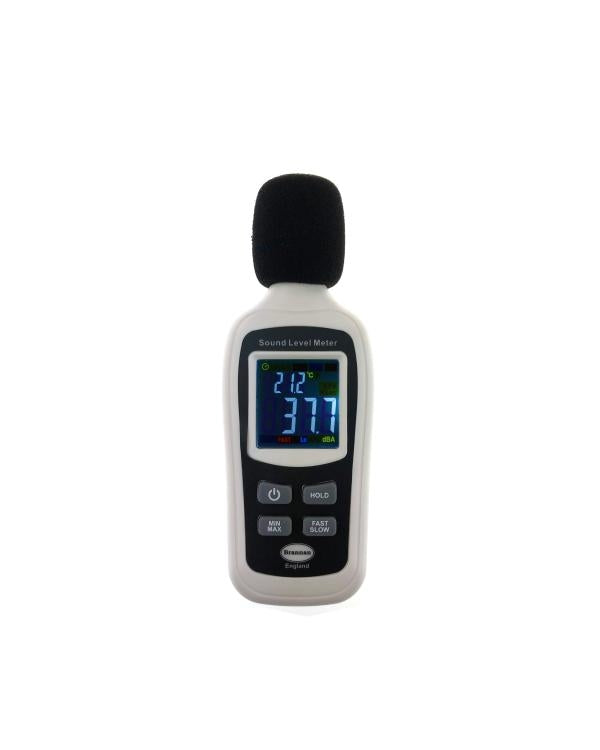

Brannan 13/471/0 | Mini Thermo-Sound Level Meter | 35 to 135 dB(A), -20 to +70 °C
Brannan 13/471/0 | Mini Thermo-Sound Level Meter | 35 to 135 dB(A), -20 to +70 °C

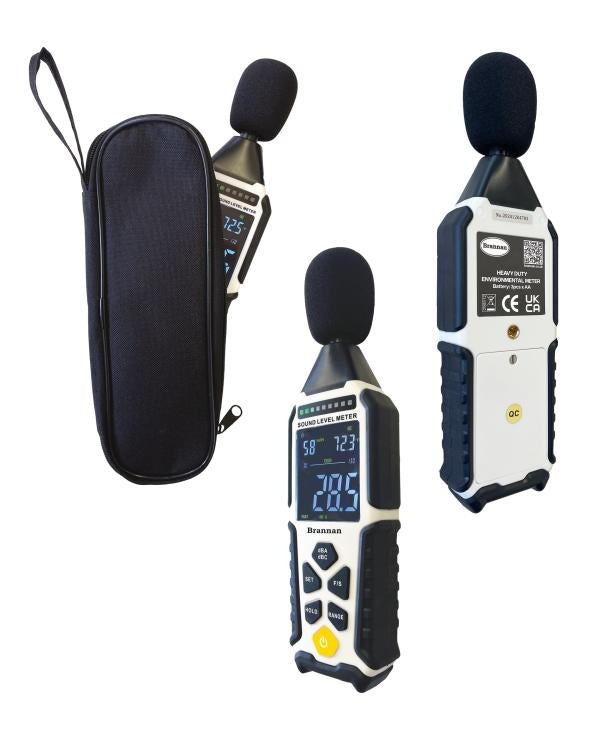

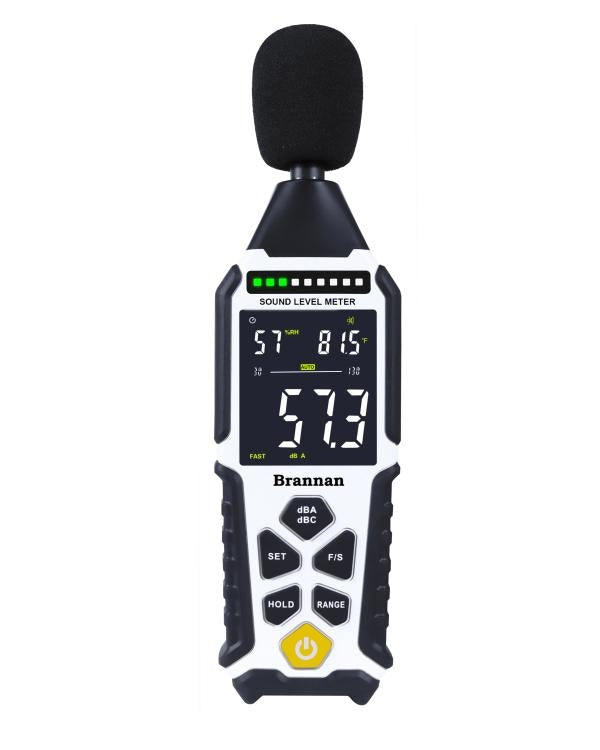

Brannan 13/491/0 | Heavy Duty Sound Level Meter with Temperature & Humidity | 30 to 130 dB, A/C
Brannan 13/491/0 | Heavy Duty Sound Level Meter with Temperature & Humidity | 30 to 130 dB, A/C

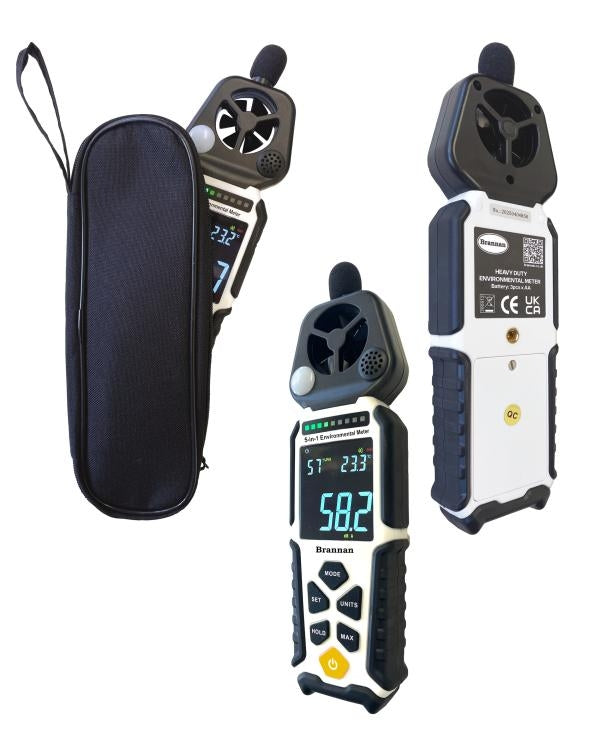

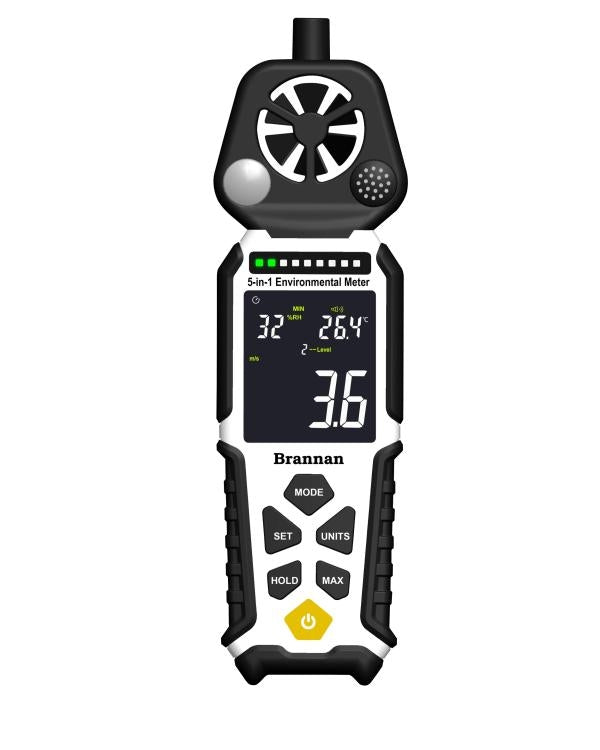

Brannan 13/494/0 | Heavy Duty 5-in-1 Environmental Meter | Wind, Light, Sound, Temperature, RH
