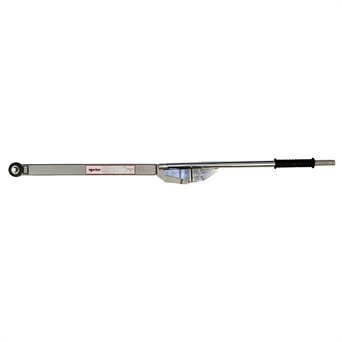

Norbar 5R Torque Wrenches 300-1000NM

Name: Norbar 5R Torque Wrenches 300-1000NM
Brand: Norbar
SKU: 120115
Availability: InStock

Part Number : 120115

A long-time customer favourite has been redesigned to be more compact, durable, and simple to use. Heavy-duty applications are ideal.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-4%
Brand	Norbar
EAN Bar Code	5060207560436
Length	1475 mm
Model Number	5R
NATO number	5120-99-122-3208
Product Number	120115
Range Imperial	200 - 750 lbf·ft (10 Increment)
Range Metric	300 - 1000 N·m (20 Increment)
Ratchet Teeth	36
Ratchet Type	push-through
Square Size	3/4"
Torque Radius	: 1272.4 mm
Weight	7.3 Kg

Easy to read scale is shielded from dust, dirt and spray
Unique profiled cam and reaction plate - gives much clearer ' torque break point' reducing the possibility of over torqueing
Robust construction gives accurate results to ±4% even in arduous working conditions
Easy to set accurately
Can be split and packed in two parts for a smaller, easier to transport package
Push-through ratchet allows two direction torqueing
Designed to be cost effectively serviced
New handle - more comfortable and guides operator's hand to correct position
