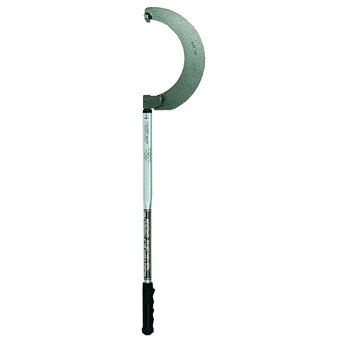

Norbar 8 Electrode Torque Wrenches 44-312NM,

Name: Norbar 8 Electrode Torque Wrenches 44-312NM,
Brand: Norbar
SKU: 12506
Availability: InStock

Part Number : 12506

Carbon/graphite electrodes that are properly tightened boost the energy efficiency of electric arc furnaces and prevent electrode pieces from being lost in the furnace. Norbar Electrode Wrenches are based on two well-proven torque wrench designs: the 'Professional' type for electrodes up to 8 inches, and the 'Industrial' type for electrodes 9 inches and up.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-4%
Brand	Norbar
Diameter	8" (200mm)
Electrode Diameter	: 8" (200mm)
Model Number	8" Electrode
Overall Length	928 mm
Product Number	12506
Range Imperial	33 - 230 lbf·ft
Range Metric	44 - 312 N·m
Torque Radius	: 723 mm
Weight	3.2 Kg

Unmistakable signal when set torque is reached.
Positive torque control increases energy efficiency.
Self-clamping action speeds the tightening operation.
A wide range of electrode sizes, 3 to 24 inches, can be tightened.
