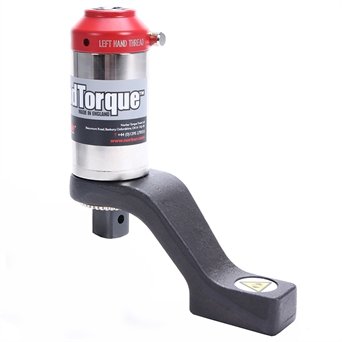

Norbar HandTorque HT-52 manual torque multiplier with reaction arm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Norbar 18186 | Manual Torque Multiplier | 148 - 738 lbf·ft, 200 - 1000 N·m

Name: Norbar 18186 | Manual Torque Multiplier | 148 - 738 lbf·ft, 200 - 1000 N·m
Brand: Norbar
SKU: 18186
Availability: InStock

Part Number : 18186

The Norbar 18186 is a manual torque multiplier with accuracy +/-4%, depth 135 mm and length 360 mm. Norbar lists supplied in a robust carry case, with space for accessories such as sockets. among its features.

Accuracy: +/-4%
Depth: 135 mm
Length: 360 mm
Model Number: HT-52
Product Number: 18186
Range Imperial: 148 - 738 lbf·ft
Range Metric: 200 - 1000 N·m
Weight: 5.4 Kg

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-4%
Brand	Norbar
Depth	135 mm
Length	360 mm
Model Number	HT-52
Product Number	18186
Range Imperial	148 - 738 lbf·ft
Range Metric	200 - 1000 N·m
Weight	5.4 Kg
Width	228 mm
Series	HandTorque Compact Series
Multiplication Ratio	4.7:1 or 22.2:1 (confirm at quotation)
Input Square	1/2" or 3/8" (confirm)
Output Square	3/4"
Anti-Wind-Up Ratchet	Depends on model – confirm at quotation
Power Source	Manual – none required
Tool Weight	1.0–1.4 kg depending on model

Supplied in a robust carry case, with space for accessories such as sockets.
