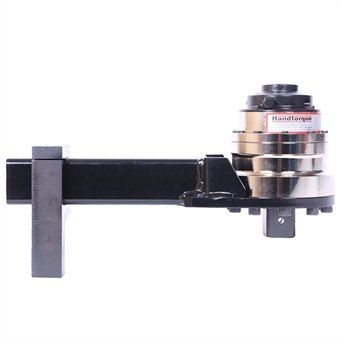

Norbar HT 7/25 AWUR Manual Torque Multipliers 600-6000NM, Output Square: 1 1/2", Input Square: 1/2"

Name: Norbar HT 7/25 AWUR Manual Torque Multipliers 600-6000NM, Output Square: 1 1/2", Input Square: 1/2"
Brand: Norbar
SKU: 16065
Availability: InStock

Part Number : 16065

Multiple stages of epicyclic gearing are used in Norbar's 'HandTorque' multipliers to provide a wide range of torque outputs and ratios to suit most applications. The torque multiplication ratio is always quoted, not the velocity ratio as some competitors' goods claim. For example, a velocity ratio of 29.8:1 would result in a torque multiplication of 25:14%.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-4%
Brand	Norbar
Input Square	1/2"
Max Input Speed	58 revs/min
Model Number	HT 7/25 AWUR
Multiplication Ratio	25:1
NATO number	5120-99-397-4378
Output Square	1 1/2"
Plate Torque	75 N.m
Plate Weight	6.3 Kg
Product Number	16065
Range Imperial	450 - 4500 lbf·ft
Range Metric	600 - 6000 N·m
Tool Weight	10.7 Kg
Velocity Ratio	29.091:1

Electronic torque transducers can be fitted for precise torque monitoring.
True torque multiplication guaranteed better than +/-4%.
High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
Anti Wind-Up Ratchet available on models of 25:1 ratio and above.
