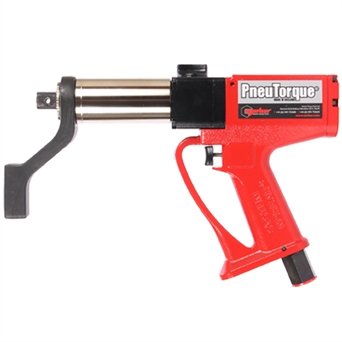

Norbar PneuTorque PTM-52-800-B Pneumatic Torque Multiplier, 800 N·m, Bi-Directional, Stall, 3/4"

Name: Norbar PneuTorque PTM-52-800-B Pneumatic Torque Multiplier, 800 N·m, Bi-Directional, Stall, 3/4"
Brand: Norbar
SKU: 18101.B06
Availability: InStock

Part Number : 18101.B06

The PTM-52 has been designed to be one of the lightest and fastest tools of its kind available. The tool is finely balanced, light weight, and provides great access to bolts because to the extremely tiny 52mm diameter gearbox.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-5%
Air Consumption	19 litres/sec (40 CFM)
Brand	Norbar
Free Speed	148 rpm
Max Air Pressure	6.3 bar
Model Number	PTM-52-800-B
Product Number	18101.B06
Range Imperial	118 - 590 lbf·ft
Range Metric	160 - 800 N·m
Reaction Plate Weight	0.85 kg
Square Size	3/4"
Tool Weight	4.1 kg

Square Size: 3/4"
Max Air Pressure: 6.3 bar
Air Consumption: 19 litres/sec (40 CFM)
Tool Weight: 4.1 kg
Reaction Plate Weight: 0.85 kg
Free Speed: 148 rpm

Norbar PneuTorque PTM-52-800-B Pneumatic Torque Multiplier, 800 N·m, Bi-Directional, Stall, 3/4"
