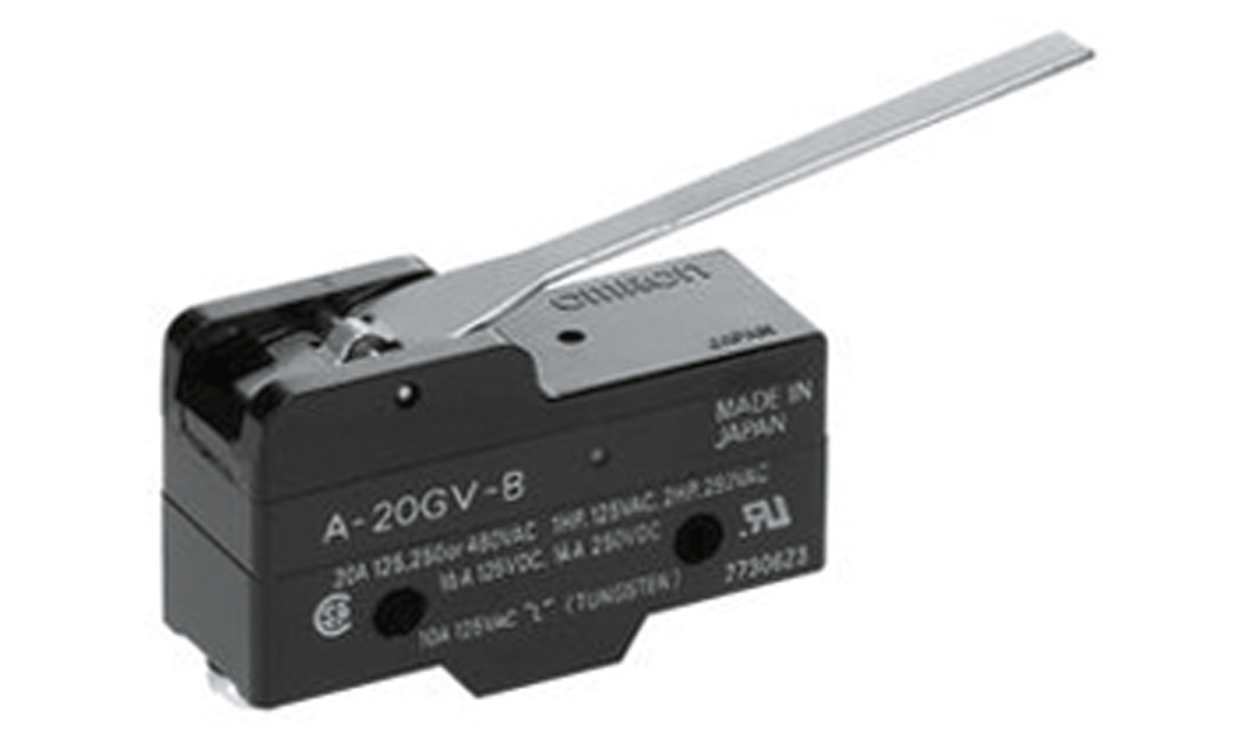

OMRON A-20GV-B | Lever Limit Switch | SPDT, 20 A, 500 V AC, CSA
The OMRON A-20GV-B uses a lever actuator on an SPDT snap-action limit switch with NO/NC contacts. It is rated 20 A, 500 V AC and 250 V DC maximum, meets CSA, and mounts on panel or side. Refer to the OMRON datasheet for complete specifications.
- Lever actuator
- CSA
- IP00, screw connection
- -25 to +85 °C
- 1,000,000 operations mechanical life
- 49.2 x 17.45 x 29.4 mm
- Detailed Description
- Specifications
- Downloads
Omron Limit Switch, Lever Actuator, 20A High Current - A-20GV-B
Features & Benefits
• SPDT configuration permits versatile wiring options
• Snap action mechanism provides rapid response times
• Mechanical life rated for over 1,000,000 operations
• Compact panel mount design facilitates easy installation
Applications
• Control circuits for machine tools
• Packaging machinery requiring precise control
• Material handling needing limit detection
What is the maximum voltage that can be applied?
How do I install it securely?
Is there a specific temperature range for operation?
| Brand | Omron |
| Actuator Type | Lever |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 20A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Width | 17.45 mm (0.687 in) |
| Depth | 29.4 mm (1.16 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 1000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Standards Met | CSA |
| Mounting Orientation | Panel, Side |
