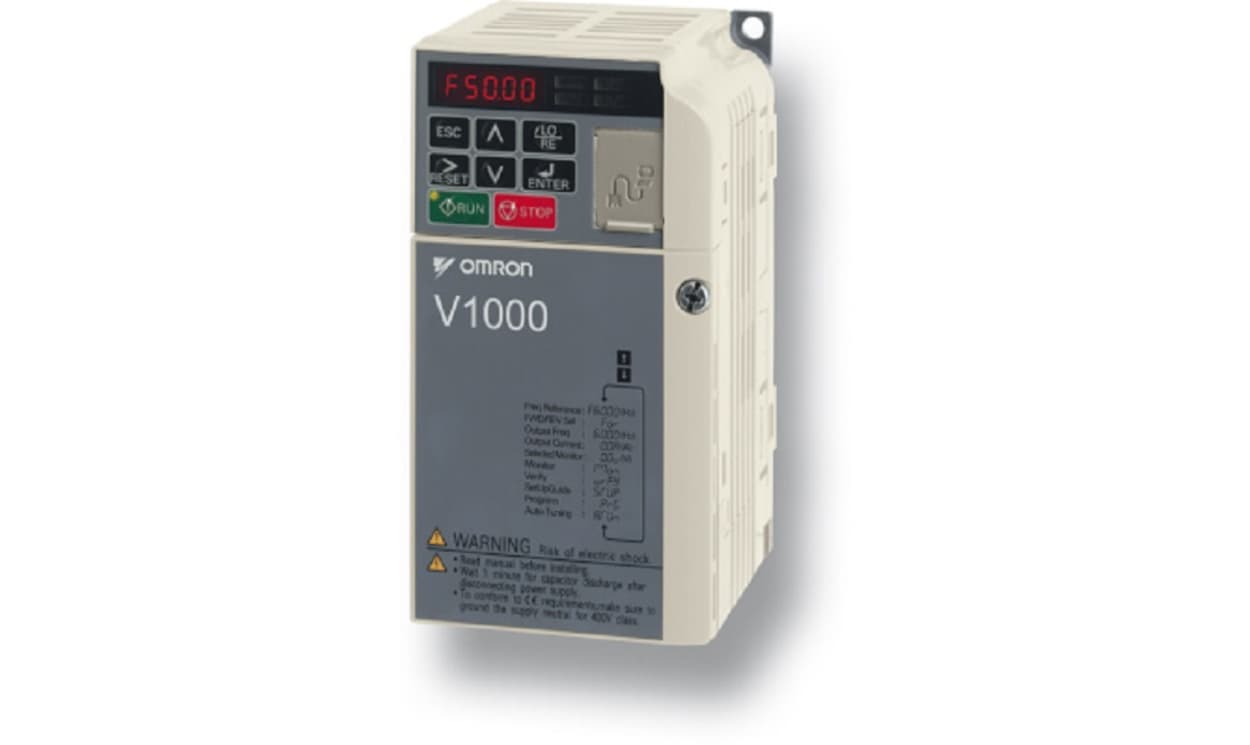

OMRON CIMR-VCBA0002JAB | CIMR Series Inverter Drive | 0.4 kW, 1-Phase 230 V

Name: OMRON CIMR-VCBA0002JAB | CIMR Series Inverter Drive | 0.4 kW, 1-Phase 230 V
Brand: OMRON
SKU: CIMR-VCBA0002JAB
Availability: InStock

Part Number : CIMR-VCBA0002JAB

This 0.4 kW OMRON inverter drive, part number CIMR-VCBA0002JAB, is a CIMR series model for 1-phase 230 V mains. Its listed output frequency is 400 Hz for the 0.4 kW rating.

Power rating: 0.4 kW
Supply: 1-phase 230 V
Output frequency: 400 Hz
Protection: IP20
Dimensions: width 68 mm, depth 71 mm
Series: CIMR

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron variable frequency drive has 230 V three phase drive supply voltage, 0.2/0.4 kW constant and variable torque, induction or asynchronous compatible motor type, maximum output frequency 400 Hz and 1:100 speed control range with IP20 degree of protection.

Current vector control
Online tuning
Low-noise low carrier technology
Fieldbus communications - Modbus, Profibus, CANopen, DeviceNet, LONworks, CompoNet, Ethernet, ML-II, PROFINET and EtherCAT
Communication port - MODBUS Slave, Serial RS-422, Serial RS-485
