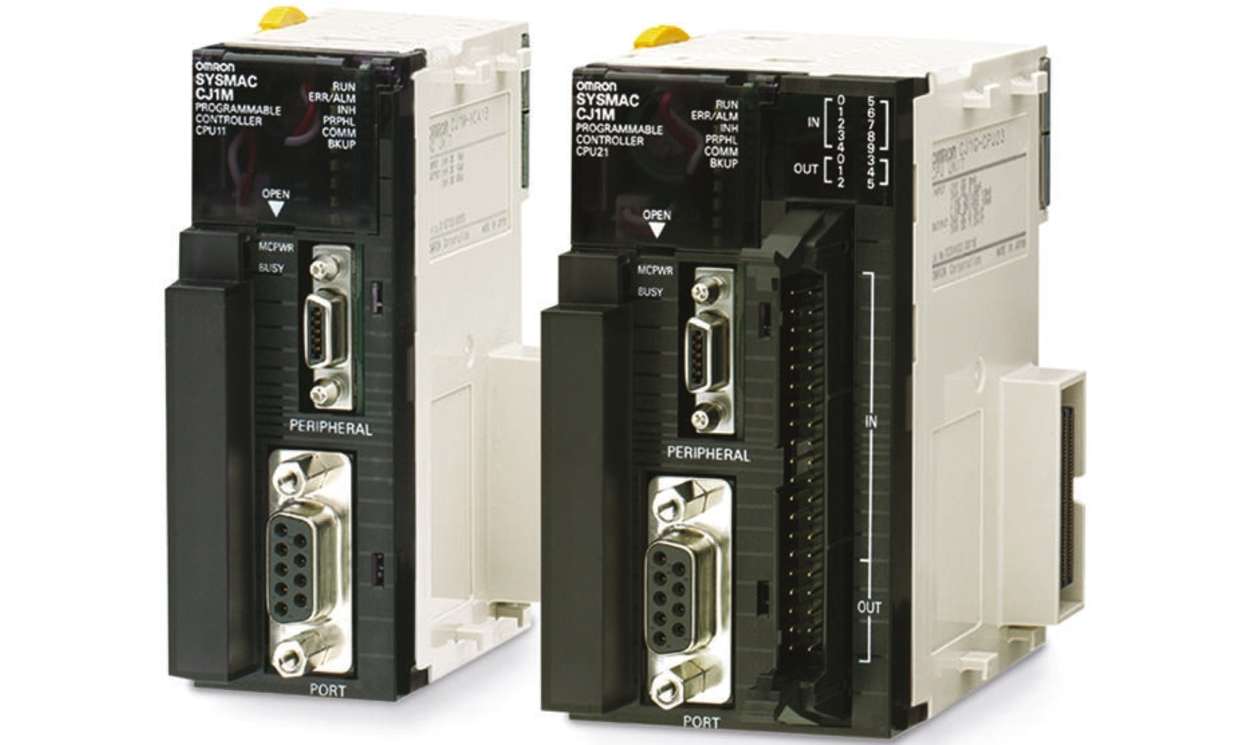

Omron CJ1M-CPU11-ETN, CJ1M Series PLC CPU for Use with CJ1M Series, Pulse Output, Interrupt Input

Name: Omron CJ1M-CPU11-ETN, CJ1M Series PLC CPU for Use with CJ1M Series, Pulse Output, Interrupt Input
Brand: OMRON
SKU: CJ1M-CPU11-ETN
Availability: OutOfStock

Part Number : CJ1M-CPU11-ETN

Availability: Sold out

Detailed Description
Specifications

CPU - CJ1M-CPU1

Ideal for applications requiring up to 640 I/O points
2 x RS-232 ports
Compact Flash card slot for optional program and data storage. Data can be stored in .CSV format, ideal for data/alarm logging and recipe handling as these files can be handled with standard spreadsheet software. Additionally, files of any other format can be stored, such as technical machine files in .pdf format
Part numbers ending in ETN signify the functionality of an Ethernet unit, however these also maintain the functionality of the CJ1M-CPU11/12 and 13

Omron CJ1M CPU's, PSU's and Expansion Control/Interface Modules

The CJ1M is a powerful and compact PLC family, covering applications requiring up to 640 I/O. CPU models are available with built in pulse outputs for stepper or servo control, and all CPUs in the CJ1M family enjoy optional modules for many types of I/O and communications. The CJ1M is the next generation of PLC from the earlier CQM1 series, and program compatibility eases migration between them.As with other Omron PLCs, the CJ1M series is programmed with CX-Programmer (RS stock no. 400-6440), designed for compliance with IEC61131-3. The backplane-less construction of the CJ1M series makes selection and installation simple; choose the CPU and power supply unit, then the I/O modules to suit the application. These items are simply plugged together end to end and then mounted on DIN rail.

Brand	Omron
Manufacturer Series	CJ1M
Output Type	Pulse
For Use With	CJ1M Series
Input Type	Interrupt
Voltage Category	5 V
Network Type	Ethernet
Communication Port Type	Peripheral, RS232C
Program Capacity	5000 Steps
Depth	73.9mm
Length	62mm
Width	95.4mm
Maximum Operating Temperature	+55°C
Dimensions	62 x 95.4 x 73.9 mm
Battery Backup	Yes
Minimum Operating Temperature	0°C
Programming Interface	Computer
Programming Language Used	Ladder Logic, Mnemonic, SFC, Structured Text
Number of Communication Ports	3
Memory	32K (Data Memory) Words, 5K (Program Memory) Steps
