Omron CJ1W-TC104, CJ1 DIN Rail PID Temperature Controller 2 Input, 1 Output Open collector PNP output, 5 V Supply Voltage PID

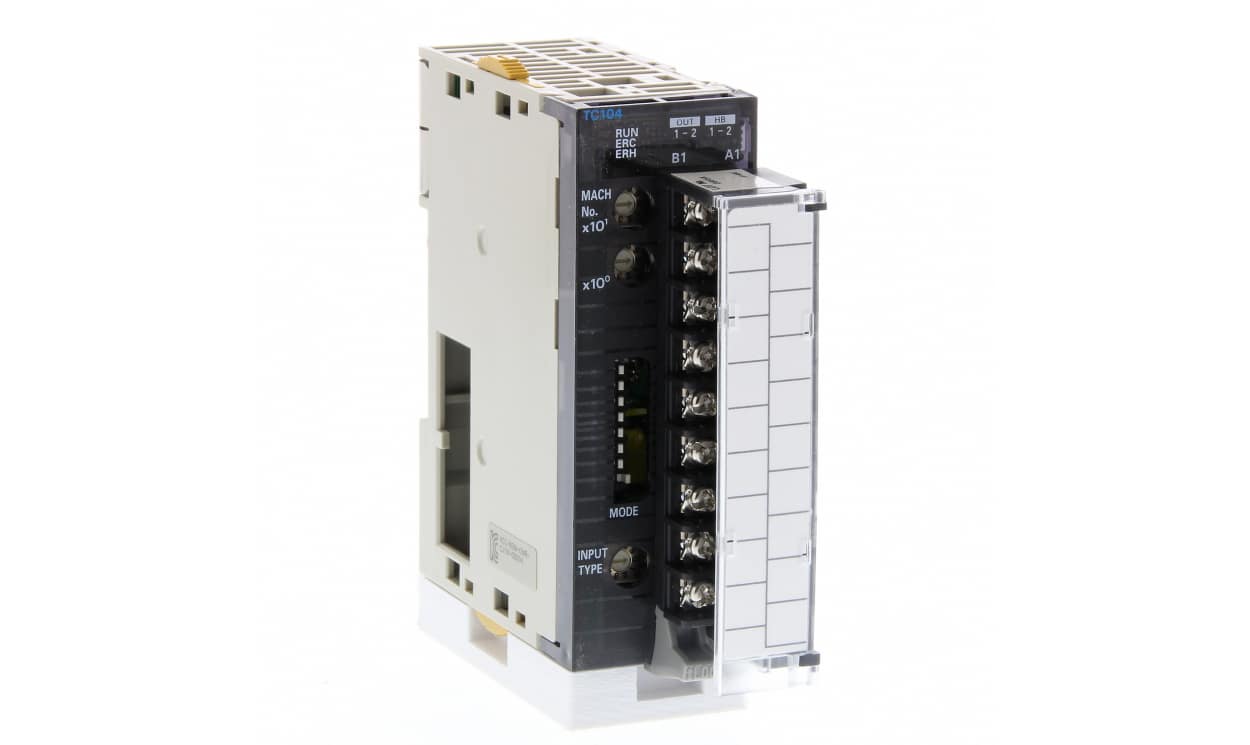

Name: Omron CJ1W-TC104, CJ1 DIN Rail PID Temperature Controller 2 Input, 1 Output Open collector PNP output, 5 V Supply Voltage PID
Brand: OMRON
SKU: CJ1W-TC104
Availability: InStock

Part Number : CJ1W-TC104

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron CJ-series special I/O unit temperature control unit has 2 control loops, (JPt100,Pt100) platinum resistance thermometer temperature sensor inputs, and PNP outputs. It has heater burnout detection function

Standard and high inertia servo motor models
Peak torque 300% of rated torque during 3 seconds
or more depending on model
High resolution serial encoder provided by 20 bits
encoder
IP67 protection in all models
Ultra-light and compact size motor
Low speed ripple and low torque ripple due to low
torque cogging
Various shaft, brake and seal options

Brand	Omron
Output Type	Open collector PNP output
Supply Voltage	5 V
Number of Inputs	2
Number of Outputs	1
Control Type	PID Controller
Series	CJ1
Mounting Type	DIN Rail
Input Type	Platinum Resistance Thermometer ; PT100
Termination Type	Screw, Removable terminal block
