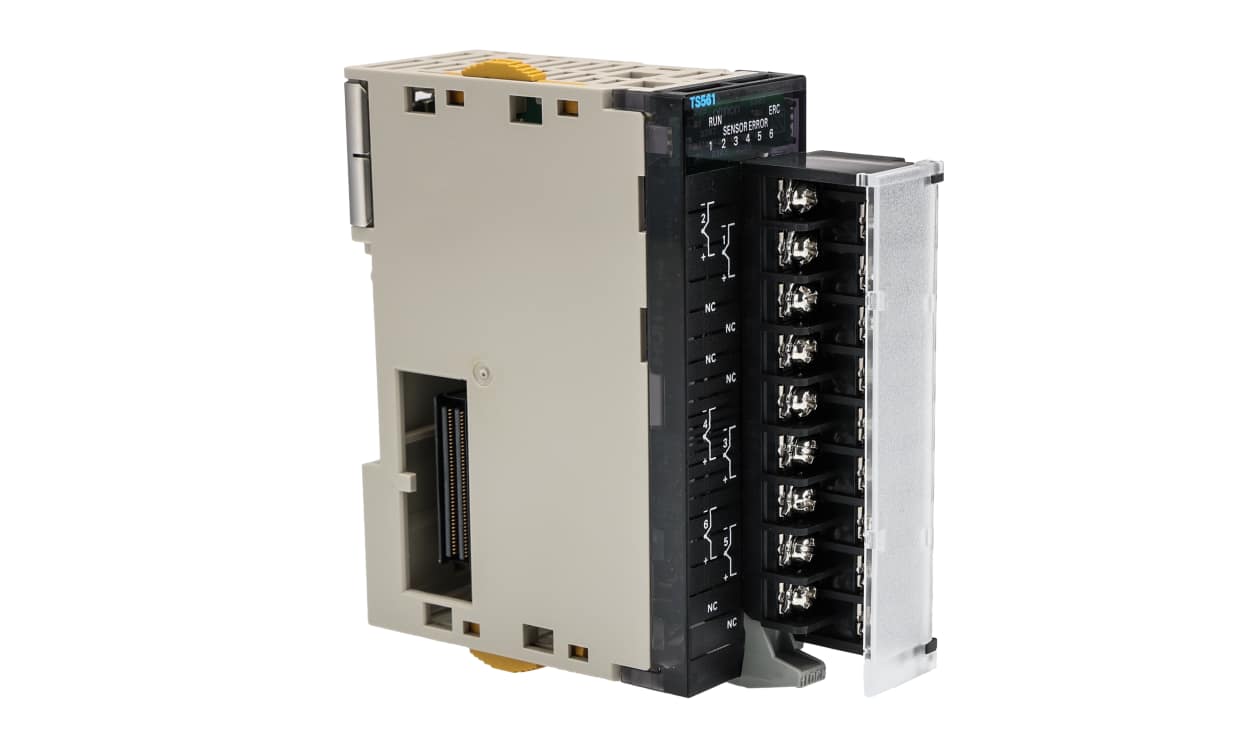

OMRON CJ1W-TS561 | Thermocouple Input Module | 6 Inputs, CJ1W Series

Name: OMRON CJ1W-TS561 | Thermocouple Input Module | 6 Inputs, CJ1W Series
Brand: OMRON
SKU: CJ1W-TS561
Availability: InStock

Part Number : CJ1W-TS561

OMRON CJ1W-TS561 is a CJ1W Series PLC expansion module with six thermocouple inputs and no outputs, for CJ1 Series PLCs.

Inputs: 6, thermocouple
Outputs: None
Series: CJ1W
For use with: CJ1 Series

Availability: low stock

Detailed Description
Specifications
Downloads

Omron CJ1W Series PLC Expansion Module, 6 Inputs, Thermocouple Input - CJ1W-TS561

This PLC expansion module is designed for integration with CJ series systems, serving as a highly efficient thermocouple input module. It allows for 6 individual thermocouple inputs, making it ideal for precise temperature measurement in industrial environments. The module does not require outputs, focusing solely on expanding input capabilities.

Features & Benefits

• Supports up to 6 thermocouple inputs for versatile temperature measurement
• Facilitates seamless integration into CJ series PLCs for enhanced functionality
• Eliminates the need for ladder programming to collect data
• Compact dimensions of 51mm x 90mm x 65mm enhance installation flexibility
• Enables rapid data acquisition to improve process efficiency
• Designed for reliability in demanding industrial automation usage

Applications

• Used for temperature data collection in manufacturing processes
• Ideal for requiring extensive temperature monitoring
• Enhances existing CJ series setups for specific thermocouple requirements
• Utilised in industries focused on automation and control systems
• Suitable for environments where quick data storage is essential

How does this module eliminate the need for ladder programming?

The module simplifies data collection by allowing users to mount it directly to the I/O tables, facilitating automatic data acquisition without any additional programming needed.

What is the maximum number of units that can be installed with this module?

You can install up to 16 units per PLC, providing extensive expandability for input capabilities in your system.

Which types of thermocouples are compatible with this module?

Thermocouple types K, J, T, E, R, S, and B are generally supported, enabling a broad range of temperature sensing options.

How does this module contribute to data collection efficiency?

By allowing the collection of temperature data quickly and storing it directly to external media, it streamlines data management and reduces potential downtime.

Omron CJ1M Digital and Analogue I/O Modules

CJ1 Digital I/O, Analogue I/O, and Communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. A further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.

Dimensions: Height 90mm, Width 31mm, Depth 89mm
All modules have removable screw terminal blocks for I/O connections, except screwless (SL)
