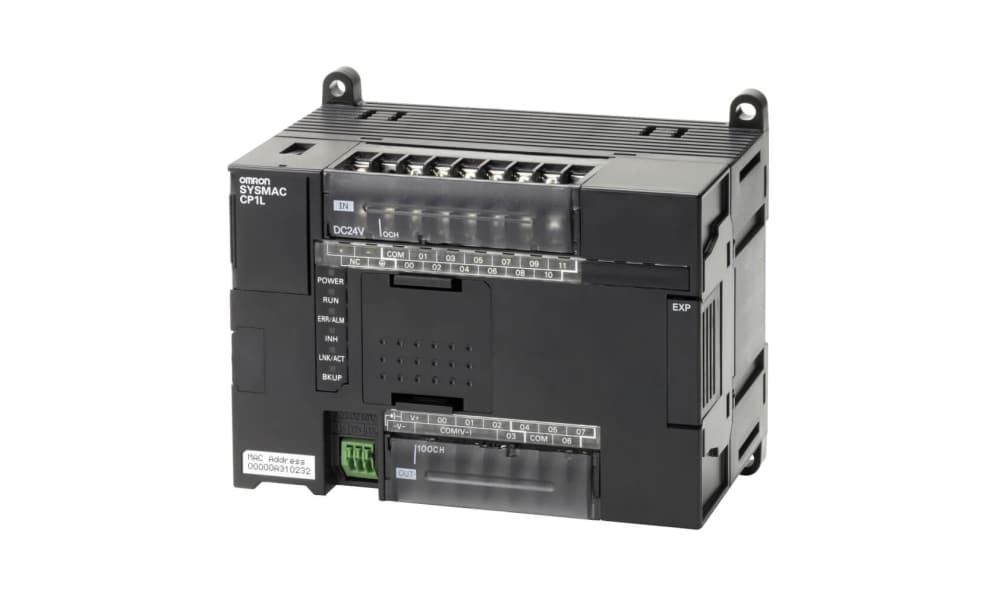

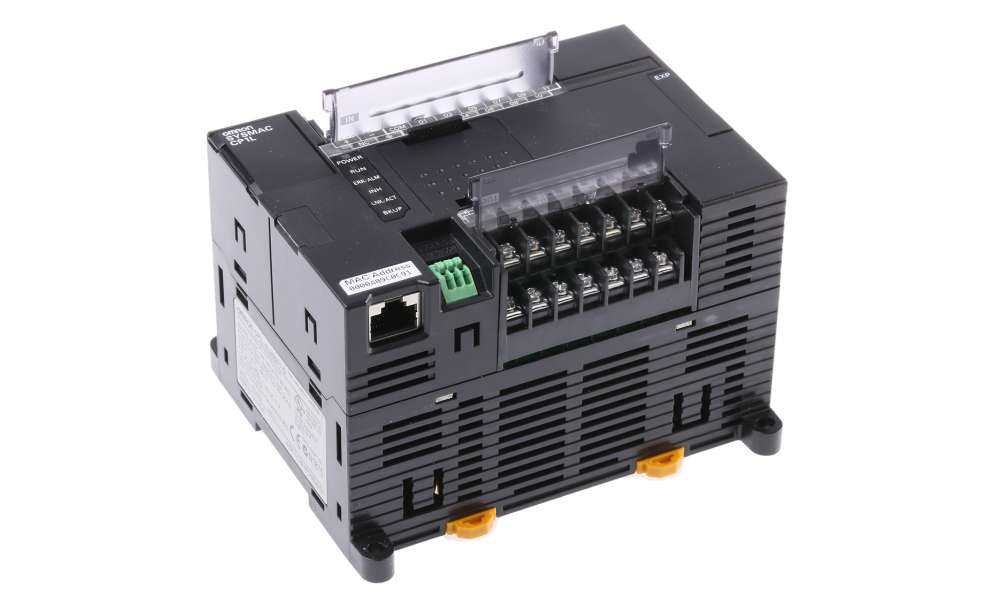

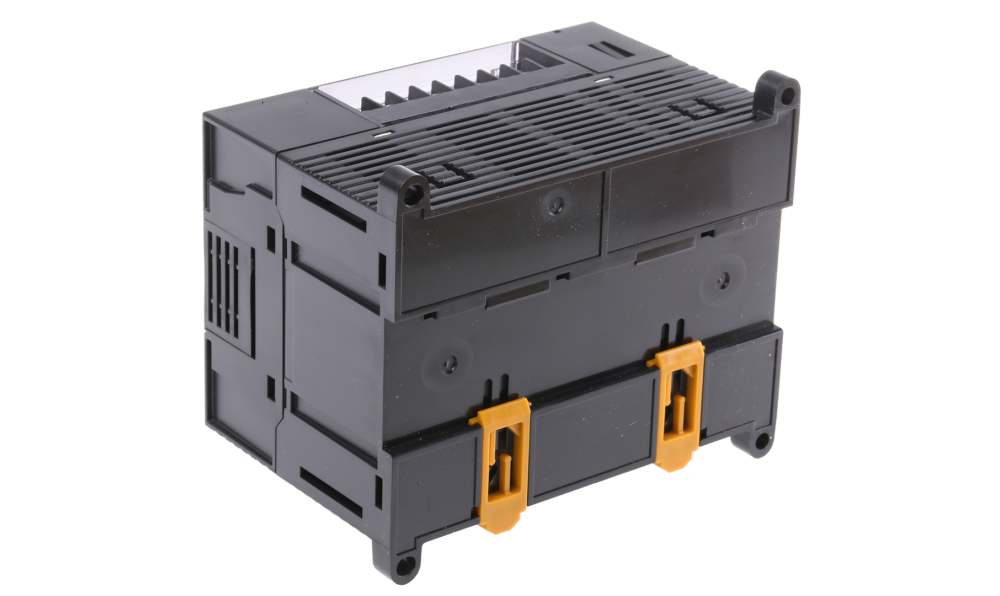

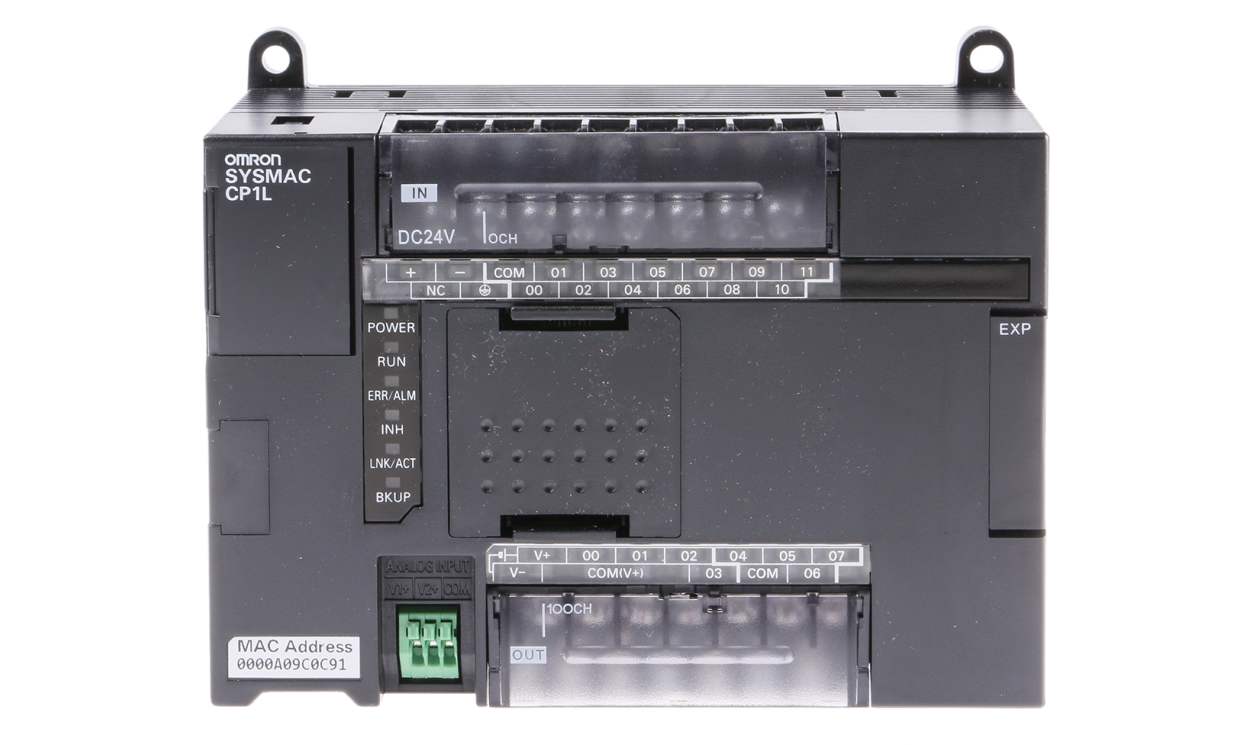

Omron CP1L-EL20DT1-D, CP1L-EL Series PLC CPU for Use with CP Series, PNP Output, 12-Input, PNP/NPN Input

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron CP1L-EL20DT1-D, CP1L-EL Series PLC CPU for Use with CP Series, PNP Output, 12-Input, PNP/NPN Input

Name: Omron CP1L-EL20DT1-D, CP1L-EL Series PLC CPU for Use with CP Series, PNP Output, 12-Input, PNP/NPN Input
Brand: OMRON
SKU: CP1L-EL20DT1-D
Availability: OutOfStock

Part Number : CP1L-EL20DT1-D

Availability: Sold out

Detailed Description
Specifications

Omron CP1L-EL Series PLC CPU, PNP Output, For Use With CP Series - CP1L-EL20DT1-D

This PLC CPU is an advanced Programmemable Logic Controller suitable for various industrial automation applications. Measuring 85x130x90mm, it includes Ethernet connectivity for networked operations. The device supports both PNP and NPN input types and operates effectively in temperatures ranging from 0 to +55°C. With battery backup, it ensures continued functionality during power interruptions.

Features & Benefits

• Programme capacity of 15K steps for complex tasks
• Integrated Ethernet port for seamless networking
• Supports 12 digital inputs for versatile control
• Eight digital outputs for direct device control
• DIN Rail mounting type for flexible installation
• Built-in battery backup for operation continuity during outages

Applications

• Control in manufacturing processes
• Networked communications
• Environments with mixed PNP/NPN inputs
• Real-time monitoring and diagnostics

Is it suitable for harsh ambient conditions?

Yes, it operates effectively in temperatures between 0 and +55°C.

How many digital inputs and outputs does the CP1L-EL20DT1-D have?

This PLC features 12 digital inputs and 8 PNP transistor outputs, providing a total of 20 I/O points suitable for various automation applications.

What is the program capacity of the CP1L-EL20DT1-D?

It offers a program capacity of 5K steps, allowing for the implementation of moderately complex control logic.

Omron CP1L CPU's, Expansion Modules and Accessories

Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.

Brand	Omron
Manufacturer Series	CP1L-EL
Number of Inputs	12
Output Type	PNP
For Use With	CP Series
Input Type	PNP/NPN
Number of Digital Inputs	12
Voltage Category	20.4 → 26.4 V dc
Number of Outputs	8
Network Type	Ethernet
Number of Digital Outputs	8
Programming Interface	Computer
Memory	10000 Words
Dimensions	85 x 130 x 90 mm
Minimum Operating Temperature	0°C
Battery Backup	Yes
Maximum Operating Temperature	+55°C
Number of Communication Ports	1
Depth	85mm
Program Capacity	15 K Steps
