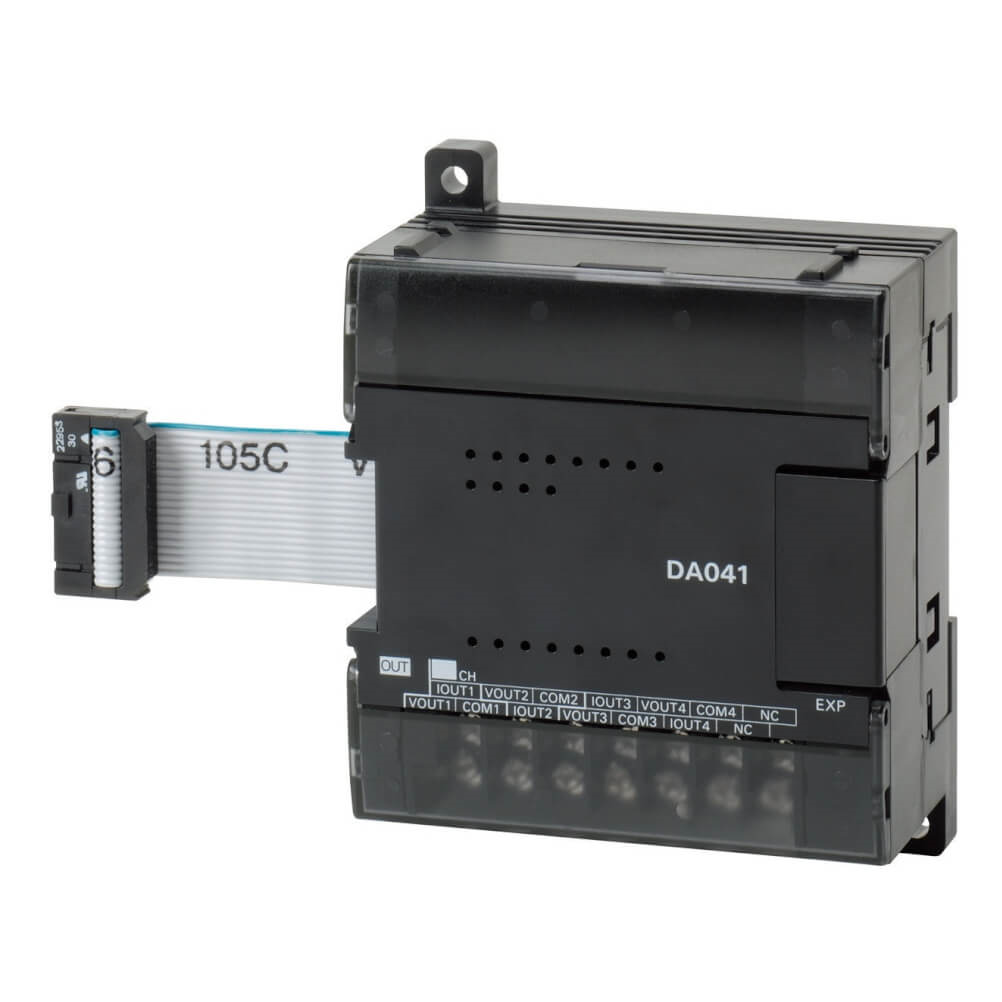

OMRON CP1W-DA041 | Analogue Output Expansion Unit | 4 Outputs, 1:6000

Name: OMRON CP1W-DA041 | Analogue Output Expansion Unit | 4 Outputs, 1:6000
Brand: OMRON
SKU: CP1W-DA041
Availability: InStock

Part Number : CP1W-DA041

OMRON CP1W-DA041 is a CP1W Series I/O expansion unit with four analogue outputs. Each can be set to 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA or 4 to 20 mA, at 1:6000 resolution.

Outputs: 4 analogue
Output ranges: 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA
Resolution: 1:6000
Series: CP1W
Dimensions: 100 x 86 x 50 mm

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron CP1W Series PLC Expansion Module, 5V DC Supply Voltage, 4 Analogue Outputs - CP1W-DA041

This PLC expansion module is an essential component for enhancing automation systems. Designed for use with the SYSMAC CJ Series, it operates at a supply voltage of 5V DC and accommodates four analogue outputs. Compactly constructed with dimensions of 100 x 86 x 50 mm, this module plays a crucial role in various industrial applications.

Features & Benefits

• Compatible with SYSMAC CJ series for seamless integration
• Operates with a 5V DC supply voltage for efficiency
• Offers 20mA output current for robust data transmission
• Ideal for expanding automation capabilities in compact machines
• Enhances system flexibility and communication capabilities

Applications

• Used with programmable controllers for enhanced machine control
• Facilitates precise process monitoring in industrial environments
• Integrates with various automation systems to ensure streamlined operations
• Suitable for controlling motors and drives in complex systems

What types of signals can the outputs effectively manage within an automation system?

The outputs are capable of handling various analogue signals, making it suitable for applications requiring precise control over actuator movements and monitoring sensor data. This flexibility allows for accurate operation in numerous settings.

How does the integration with SYSMAC CJ Series enhance functionality?

Integrating this module with the SYSMAC CJ Series allows for effortless communication and control across devices, optimising performance and facilitating more complex automation tasks that demand high precision.

What are the dimensional constraints for the installation of this module?

With dimensions of 100 x 86 x 50 mm, installation requires sufficient space within the control cabinet or panel while ensuring easy access for maintenance and adjustments.

How does the 5V DC operation affect overall power consumption?

Operating at 5V DC ensures minimal power consumption, making it an eco-friendly choice while sustaining reliable performance across connected components within the automation framework.

Omron CP1L CPU's, Expansion Modules and Accessories

Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.
