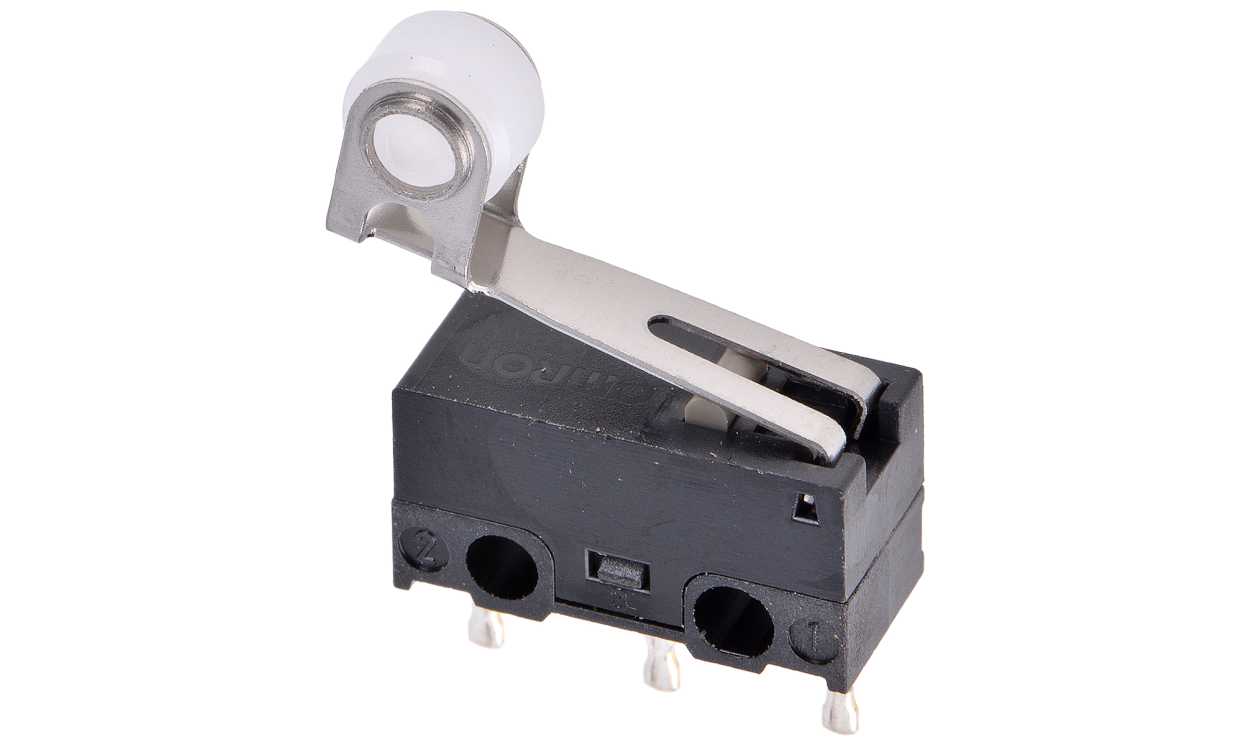

Omron D2F-FL2, Roller Lever Micro Switch, PCB Terminal, 1 A @ 125 V ac, SPDT, IP40

Name: Omron D2F-FL2, Roller Lever Micro Switch, PCB Terminal, 1 A @ 125 V ac, SPDT, IP40
Brand: OMRON
SKU: D2F-FL2
Availability: OutOfStock

Part Number : D2F-FL2

Availability: Sold out

Detailed Description
Specifications
Downloads

Ultra Sub-Miniature Micro-switch

Snap action sub-miniature microswitch ideal for home appliances, audio equipment and communications equipment.

RoHS compliant
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action

Approvals: UL & CSA

Brand	Omron
Actuator Type	Roller Lever
Terminal Type	PCB
Contact Current Rating	1 A @ 125 V ac
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.39 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+65°C
Contact Material	Silver Alloy
Mechanical Life	1000000Operations
Release Force	0.02N
Operating Temperature Range	-25 → +65°C
