Omron D2FD-2L30-1H, Simulated Roller Lever Micro Switch, Solder Lug Terminal, 2 A @ 30 V dc, SP-CO, IP6X

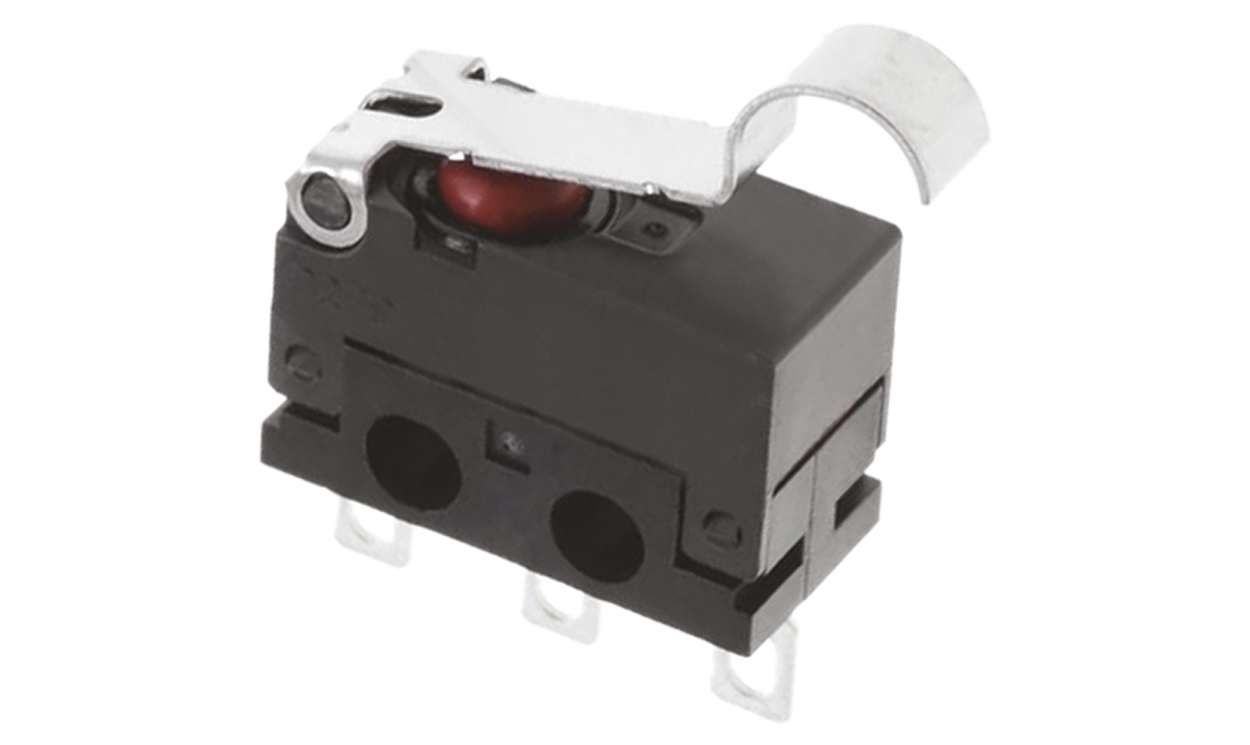

Name: Omron D2FD-2L30-1H, Simulated Roller Lever Micro Switch, Solder Lug Terminal, 2 A @ 30 V dc, SP-CO, IP6X
Brand: OMRON
SKU: D2FD-2L30-1H
Availability: OutOfStock

Part Number : D2FD-2L30-1H

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Subminiature Switches - D2FD Series

The Omron D2FD series of ultra subminiature switches are sealed using rubber packing which enables the switch to be used in dust proof environments. With a switch rating of 2A at 125Vac the Omron D2FD series subminiature switch is a versatile solution and suitable for a wide range of applications.

Ultra compact IEC IP6X conforming design

Brand	Omron
Actuator Type	Simulated Roller Lever
Terminal Type	Solder Lug
Contact Current Rating	2 A @ 30 V dc
Contact Configuration	SP-CO
IP Rating	IP6X
Operating Force	0.65 N
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
Contact Material	Silver Alloy
Case Material	Rubber
Mechanical Life	300000Operations
Release Force	0.05N
Operating Temperature Range	-20 → +70°C

Omron D2FD-2L30-1H, Simulated Roller Lever Micro Switch, Solder Lug Terminal, 2 A @ 30 V dc, SP-CO, IP6X

DOWNLOAD CATALOG
