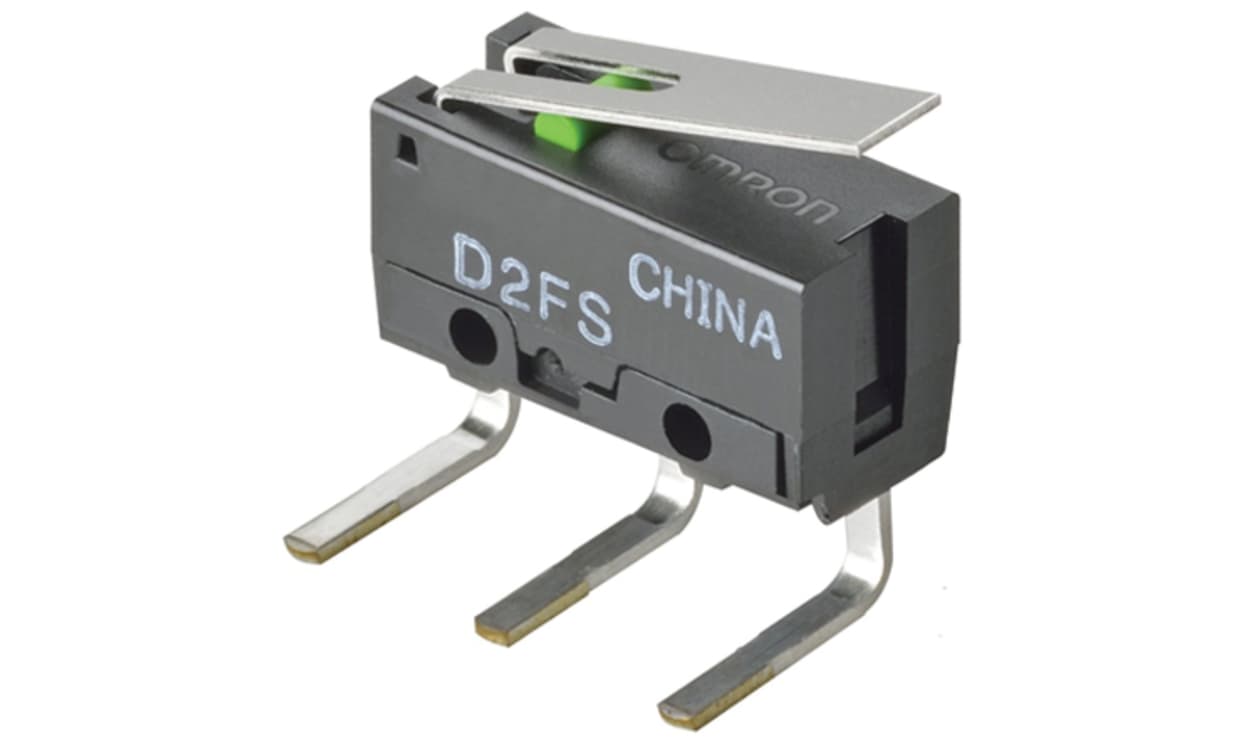

Omron D2FS-FL-N-A1, Hinge Lever Micro Switch, Left Angle PCB Terminal, 100 mA @ 5 V dc, SPST, IP40

Name: Omron D2FS-FL-N-A1, Hinge Lever Micro Switch, Left Angle PCB Terminal, 100 mA @ 5 V dc, SPST, IP40
Brand: OMRON
SKU: D2FS-FL-N-A1
Availability: OutOfStock

Part Number : D2FS-FL-N-A1

Availability: Sold out

Detailed Description
Specifications
Downloads

D2FS Series Ultra Subminiature Basic Switch

The D2FS series switches from Omron were developed primarily for applications that require minimal switching actions over the period of use. Suitable for applications such as door-detection to prevent the misuse of meters.

Self-clinching variants available
Simple construction with single leaf movable spring

Brand	Omron
Actuator Type	Hinge Lever
Terminal Type	Left Angle PCB
Contact Current Rating	100 mA @ 5 V dc
Contact Configuration	SPST
IP Rating	IP40
Operating Force	0.25 N
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
Contact Material	Silver
Mechanical Life	100000Operations
Release Force	0.02N
Operating Temperature Range	-20 → +70°C

Omron D2FS-FL-N-A1, Hinge Lever Micro Switch, Left Angle PCB Terminal, 100 mA @ 5 V dc, SPST, IP40
