Omron D2HW-BL201M, Plunger Micro Switch, Through Hole Terminal, 2 A @ 12 V dc, SPDT, IP67

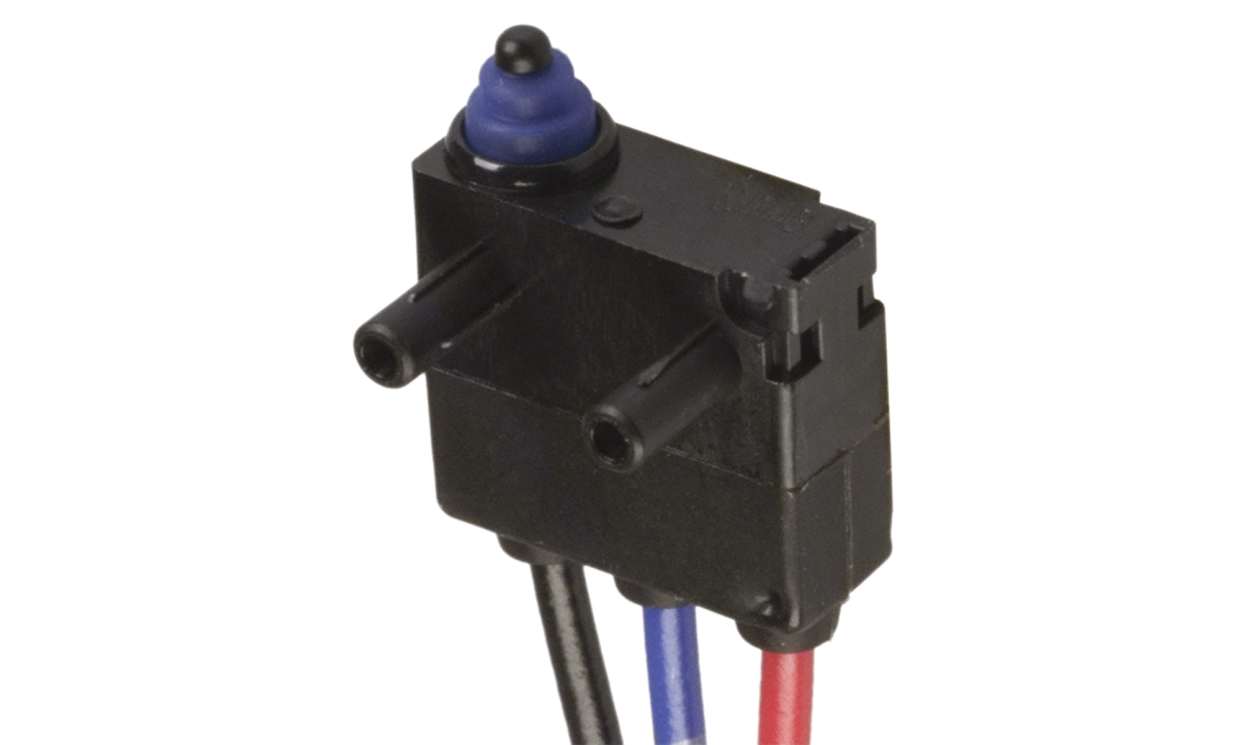

Name: Omron D2HW-BL201M, Plunger Micro Switch, Through Hole Terminal, 2 A @ 12 V dc, SPDT, IP67
Brand: OMRON
SKU: D2HW-BL201M
Availability: OutOfStock

Part Number : D2HW-BL201M

Availability: Sold out

Detailed Description
Specifications
Downloads

Ultra Subminiature Sealed Microswitch ,( D2HW )

Smallest sealed snap action switch in the industry with a very long stroke for reliable ON/OFF action.

RoHS compliant
Extra long stroke
Dimensions are 78% of conventional models
PCB terminal versions have straight and right angled terminals
Contact rating: 2A @ 12Vdc, 0.1A @ 125Vac
Minimum Load: 1mA @ 5Vdc
Contact configuration: SPDT

Brand	Omron
Actuator Type	Plunger
Terminal Type	Through Hole
Contact Current Rating	2 A @ 12 V dc
Contact Configuration	SPDT
IP Rating	IP67
Operating Force	0.75 N
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Gold Alloy
Mechanical Life	1000000Operations
Release Force	0.1N
Operating Temperature Range	-40 → +85°C

Omron D2HW-BL201M, Plunger Micro Switch, Through Hole Terminal, 2 A @ 12 V dc, SPDT, IP67

DOWNLOAD CATALOG
