Omron D2MQ-1L-105, Leaf Lever Micro Switch, PCB Terminal, 50 mA, SP-CO, IP40

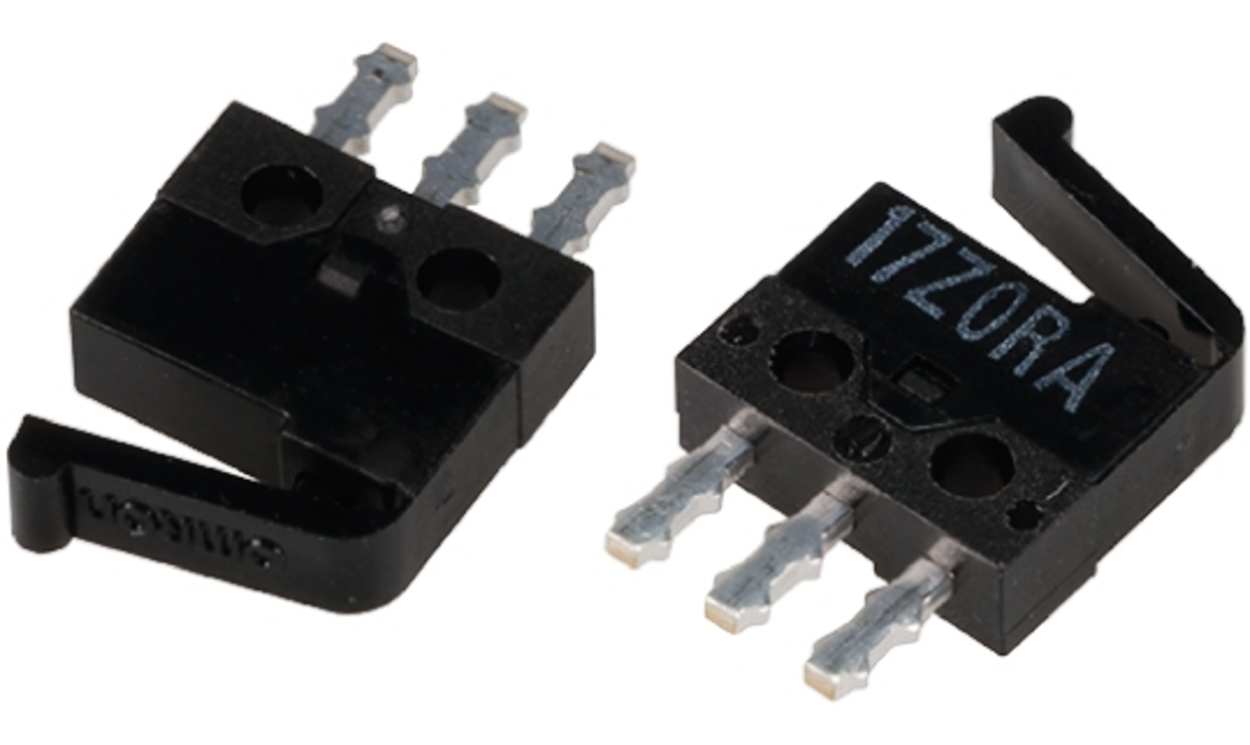

Name: Omron D2MQ-1L-105, Leaf Lever Micro Switch, PCB Terminal, 50 mA, SP-CO, IP40
Brand: General Tech Services LLC
SKU: D2MQ-1L-105
Availability: OutOfStock

Part Number : D2MQ-1L-105

Availability: Sold out

Detailed Description
Specifications

Ultra Subminiature Basic Microswitch

Ultra-subminiature microswitch ideal for applications where size and weight requirements are crucial.

RoHS compliant
Snap action mechanism
Available with straight PCB mounting and right angle terminals
Contact configuration: SPDT

Brand	Omron
Actuator Type	Leaf Lever
Terminal Type	PCB
Contact Current Rating	50 mA
Contact Configuration	SP-CO
IP Rating	IP40
Operating Force	0.59 N
Minimum Operating Temperature	-15°C
Maximum Operating Temperature	+70°C
Contact Material	Gold Plated
Case Material	Plastic
Mechanical Life	30000Operations
Release Force	0.08N
Operating Temperature Range	-15 → +70°C

Omron D2MQ-1L-105, Leaf Lever Micro Switch, PCB Terminal, 50 mA, SP-CO, IP40

Omron D2MQ-1L-105, Leaf Lever Micro Switch, PCB Terminal, 50 mA, SP-CO, IP40

Ultra Subminiature Basic Microswitch
