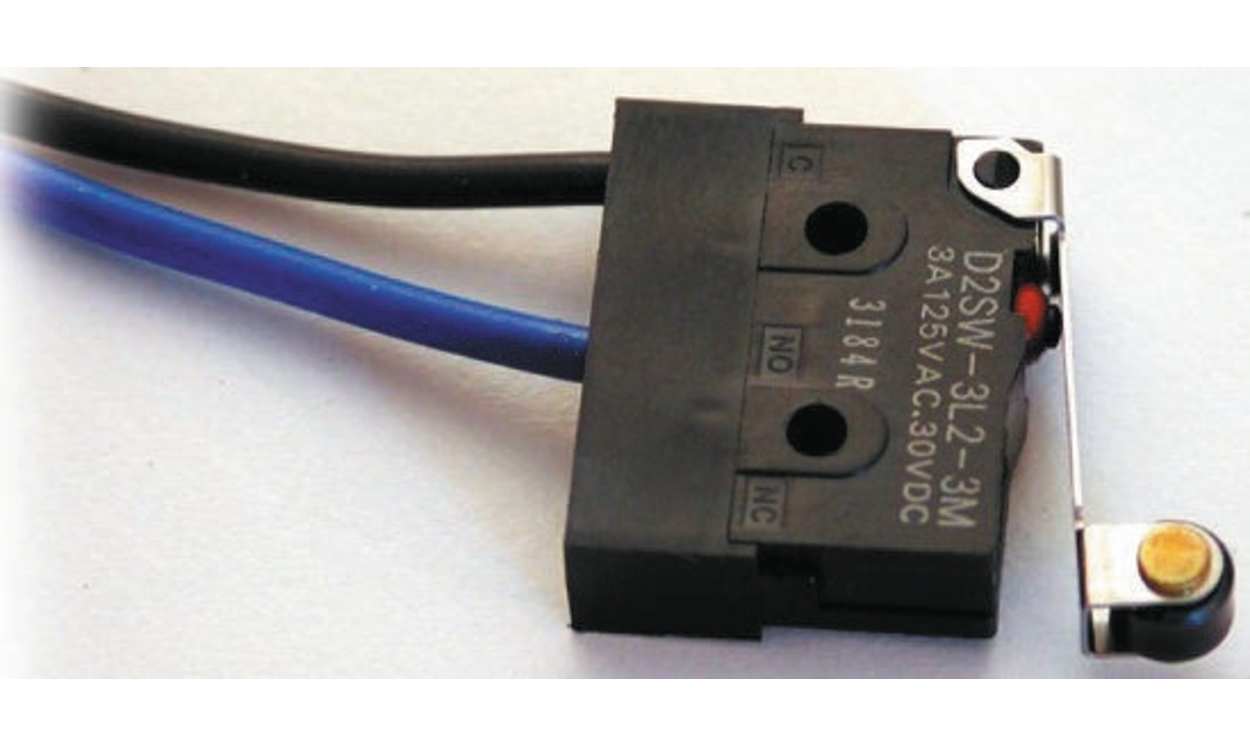

Name: Omron D2SW-3L2-3M, Roller Lever Micro Switch, Pre-wired Terminal, 3 A @ 30 V dc, SPST, IP67
Brand: OMRON
SKU: D2SW-3L2-3M
Availability: OutOfStock

Omron D2SW-3L2-3M, Roller Lever Micro Switch, Pre-wired Terminal, 3 A @ 30 V dc, SPST, IP67

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D2SW-3L2-3M, Roller Lever Micro Switch, Pre-wired Terminal, 3 A @ 30 V dc, SPST, IP67

Part Number : D2SW-3L2-3M

Availability: Sold out

Detailed Description
Specifications
Downloads

Sealed Miniature Microswitches

High quality sealed miniature microswitch in industry standard V4 housing

Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
RoHS compliant
Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
Contact configuration: SPDT
Operating temperature range: -40 to +80°C

Brand	Omron
Actuator Type	Roller Lever
Terminal Type	Pre-wired
Contact Current Rating	3 A @ 30 V dc
Contact Configuration	SPST
IP Rating	IP67
Operating Force	0.59 N
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Silver
Mechanical Life	5000000Operations
Release Force	0.06N
Operating Temperature Range	-40 → +85°C

Omron D2SW-3L2-3M, Roller Lever Micro Switch, Pre-wired Terminal, 3 A @ 30 V dc, SPST, IP67
