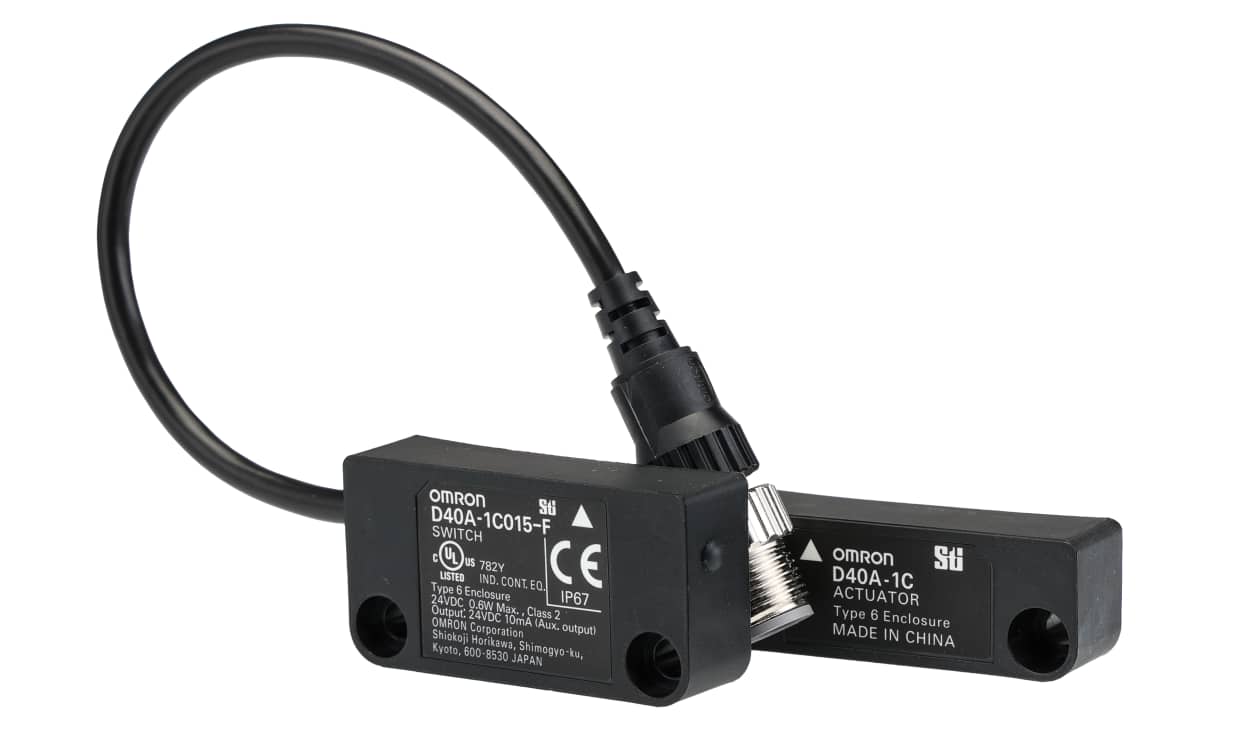

Name: Omron D40A-1C015-F, D40A Series Electronic Detection Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, 1NO, M12
Brand: OMRON
SKU: D40A-1C015-F
Availability: OutOfStock

Omron D40A-1C015-F, D40A Series Electronic Detection Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, 1NO, M12

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D40A-1C015-F, D40A Series Electronic Detection Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, 1NO, M12

Part Number : D40A-1C015-F

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D40A Series Non-Contact Safety Switch, 24V DC Supply Voltage, 1NO Safety Contacts - D40A-1C015-F

This non-contact safety switch is designed for maximum reliability in industrial applications. It features electronic detection, ensuring stable operation without physical contact. Measuring 48mm in depth, 25mm in width, and 13mm in length, it seamlessly integrates into safety control systems, enabling precise monitoring of door positions.

Features & Benefits

• Utilises electronic detection for enhanced stability in operation
• Compact actuator design saves space during installation
• Supports connection of up to 30 switches to a single controller
• Robust PBT housing offers exceptional durability and resistance
• Quick and easy M12 connector type simplifies wiring tasks

Applications

• Ideal for safety systems in industrial machinery
• Used in automated doors for reliable entry monitoring
• Suitable for requiring dual-function safety and monitoring
• Integrates well into control systems with emergency stop functions

How does the electronic detection mechanism improve performance?

The electronic detection mechanism ensures accurate door status detection, eliminating errors associated with conventional reed switches, especially in cases where doors close slowly.

What types of environments are suitable for this switch?

It is suitable for enclosed environments, including those exposed to dust and water, due to its IP67 rating, making it a robust option for various industrial settings.

Can it be mounted on different types of doors?

Yes, the versatile design allows for mounting on both swinging and sliding doors, accommodating various configurations for optimal safety integration.

What is the significance of using a connector type for wiring?

The connector type streamlines the installation process, reduces the need for extensive wiring, and allows for easy replacement during maintenance.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	1NO
Housing Material	Polybutylene Terephthalate (PBT)
Connection Type	M12
Sensor Principle	Electronic Detection
Actuator Included	Yes
Switching Distance	5 → 15mm
Series	D40A
IP Rating	IP67
Length	13mm
Width	25mm
Depth	48mm

Omron D40A-1C015-F, D40A Series Electronic Detection Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, 1NO, M12

DOWNLOAD CATALOG

D40A-1C015-F Selection Guide - Safety Components A700000014068218

D40A-1C015-F Brochure - Safety Interlock Switches A700000014068375
