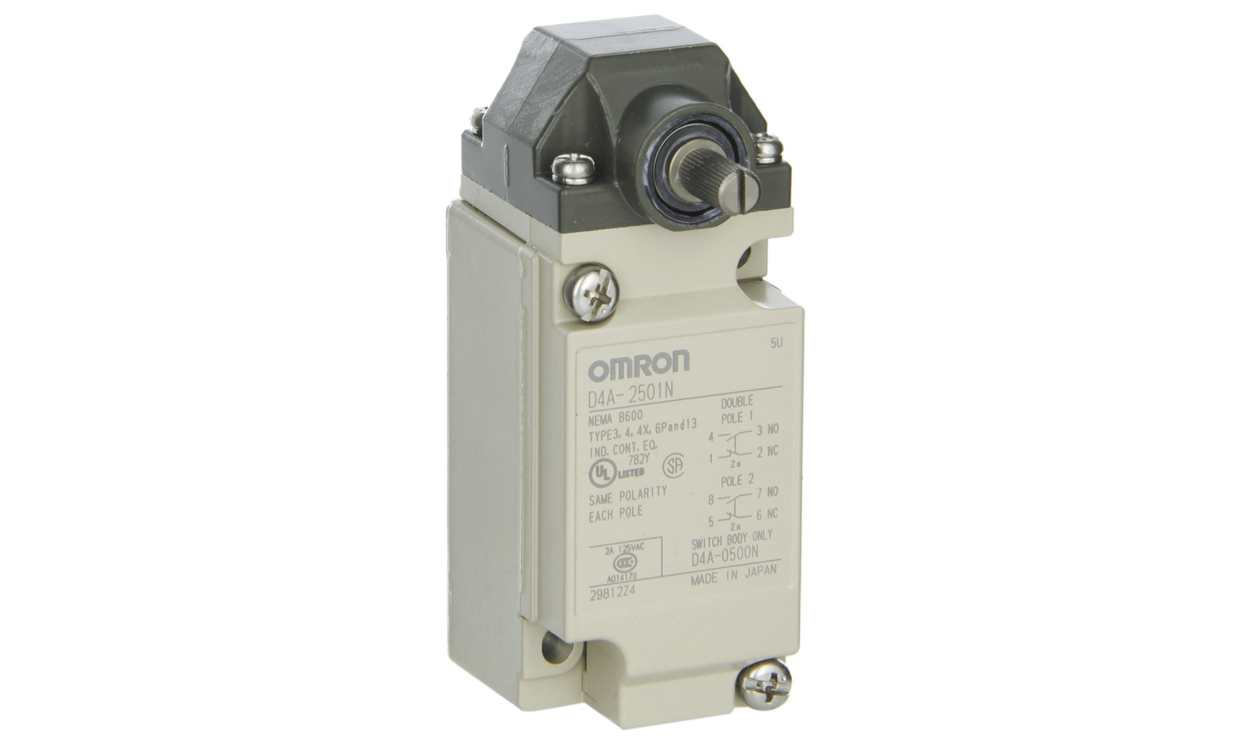

Omron D4A-2501N, Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, 600V ac Max, 5A Max

Name: Omron D4A-2501N, Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, 600V ac Max, 5A Max
Brand: OMRON
SKU: D4A-2501N
Availability: InStock

Part Number : D4A-2501N

Availability: low stock

Detailed Description
Specifications
Downloads

D4A- N General Purpose Limit Switch

A limit switch with better seal, shock resistance and strength

A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13)
Wide standard operating temperature range: -40 °C to +100 °C (standard type)
Models with fluoro-rubber available for greater resistance to chemicals
Block mounting method also reduces downtime for maintenance
DPDT, double-break models available for complex operations
Complete limit switch consists of several parts (receptacle, switch Box, head and lever) which must be ordered separately

Standards

UL, CSA and CCC

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	DPDT
Normal State Configuration	2NO/2NC
IP Rating	IP67
Maximum Current	5A
Maximum AC Voltage	600V
Maximum DC Voltage	250V
Connection Type	G1/2
Action Type	Snap Action
Length	75.5mm
Width	42mm
Depth	44mm
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+100°C
Mechanical Life	30000000Operations
Mounting Orientation	Back, Front
