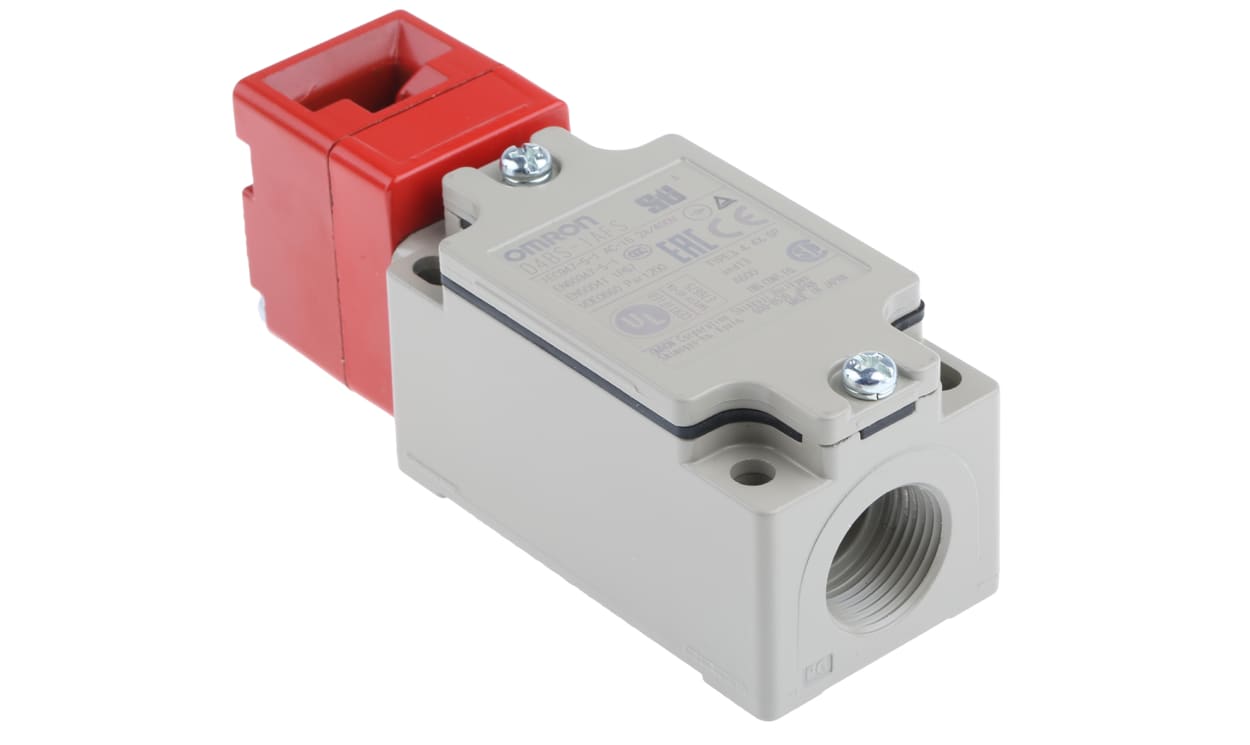

OMRON D4BS-1AFS | Safety Door Switch | 2NC, Slow Action, PG13.5, IP67
The OMRON D4BS-1AFS is a D4BS series safety door switch with 2NC slow-action contacts and one PG13.5 conduit. Its plastic housing is IP67 and the contacts are rated 2 A at 400 V AC.
- 2NC, slow action
- 2 A, 400 V AC max
- IP67, plastic housing, PG13.5
- CCC, CE, CSA, UL
- -40 to +80 °C
- 111.5 x 40 x 43 mm
- Detailed Description
- Specifications
- Features
- Downloads
D4BS — Safety position switch
Metal case IP67
2 NC contacts or one NC and one NO
Standard format as per EN 50047
Standards
EN 1088
Approvals
Omron D4BS Series Safety Interlock Switch, 2A Maximum Current, IP67 - D4BS-1AFS
Features & Benefits
• Direct opening mechanism increases safety during maintenance
• Lightweight plastic housing ensures durability in industrial applications
• Supports a maximum current of 2A for dependable performance
• Compatible with PG13.5, G1/2, and M20 conduit types for flexible installation
Applications
• Protection of automated production lines
• Utilisation with heavy-duty doors in manufacturing settings
• Integration into systems requiring compliance with EN standards
What type of conduit can be used with this switch?
How does the switch perform in high-temperature environments?
What steps should be taken for proper installation?
Is there a specific type of fuse recommended for protection?
| Brand | Omron |
| Series | D4BS |
| IP Rating | IP67 |
| Normal State Configuration | 2NC |
| Maximum Current | 2A |
| Maximum AC Voltage | 400V |
| Housing Material | Plastic |
| Length | 111.5 mm (4.39 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 40 mm (1.57 in) |
| Depth | 43 mm (1.69 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Connection Type | PG13.5 |
| Standards Met | CCC, CE, CSA, UL |
Safety-door switch, D4BS, PG13.5 (1 conduit), 2NC (slow-action)
