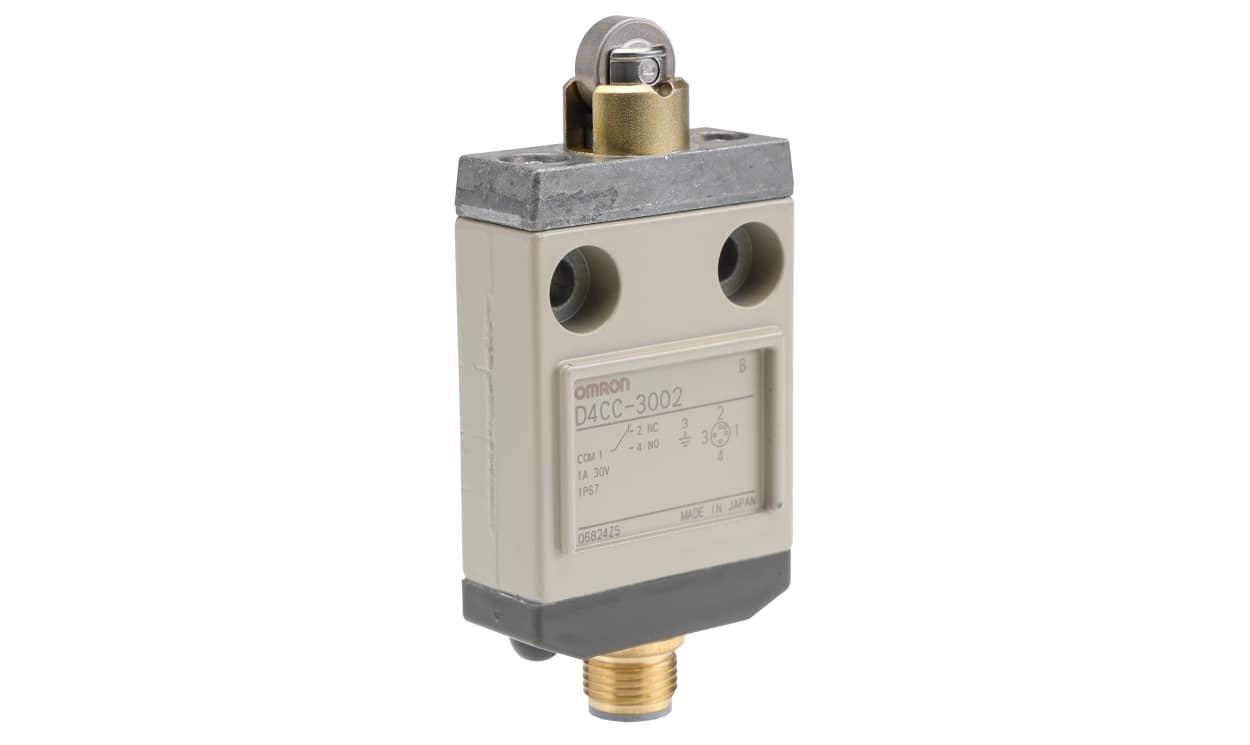

OMRON D4CC-3002 | Roller Plunger Limit Switch | SPDT, 1 A, 30 V DC, IP67
The OMRON D4CC-3002 is a roller plunger limit switch with SPDT NO/NC contacts rated 1 A and 30 V DC maximum. It is IP67 with an 11.77 N operating force. Full ratings and dimensions are given in the OMRON datasheet.
- Roller plunger, 11.77 N
- SPDT, NO/NC
- 1 A, 30 V DC max
- IP67
- -10 to +70 °C
- Detailed Description
- Specifications
- Downloads
Omron Limit Switch, SPDT Configuration, Roller Plunger Actuator Type - D4CC-3002
Features & Benefits
• SPDT configuration ensures versatility in switching
• Mechanical life of 120 operations guarantees longevity
• Operating force of 11.77N allows for efficient actuation
• Dual normal state configuration supports NO and NC connections
Applications
• Essential for conveyor systems to detect product placement
• Compatible with safety devices in industrial automation
• Used for monitoring in packaging machinery
• Suitable for use in outdoor installations due to robust design
What are the operational limits regarding current and voltage for this model?
How does the product perform under extreme weather conditions?
What types of environments are ideal for deploying this device?
How can I determine the appropriate actuator type for my application?
| Brand | Omron |
| Actuator Type | Roller Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 1A |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 120Operations |
| Maximum DC Voltage | 30V dc |
| Operating Force | 11.77 N |
