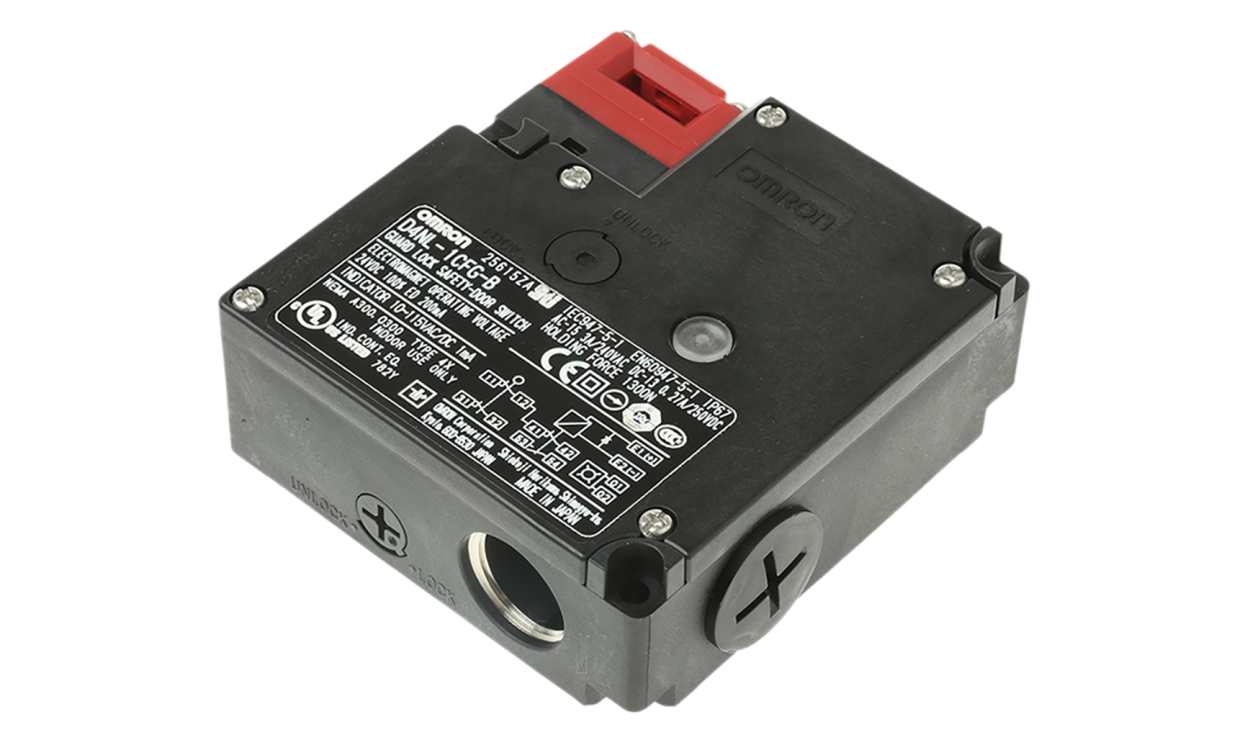

Name: Omron D4NL-1CFG-B, D4NL Series Solenoid Interlock Switch, Power to Lock, 24V dc, 2NC + 1NC/1NO
Brand: OMRON
SKU: D4NL-1CFG-B
Availability: OutOfStock

Omron D4NL-1CFG-B, D4NL Series Solenoid Interlock Switch, Power to Lock, 24V dc, 2NC + 1NC/1NO

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4NL-1CFG-B, D4NL Series Solenoid Interlock Switch, Power to Lock, 24V dc, 2NC + 1NC/1NO

Part Number : D4NL-1CFG-B

Safety door-lock switch, solenoid lock, 24 VDC, 2NC + 1NC/1NO, 10 A, PG 13.5 entry

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron D4NL Series Solenoid Interlock Switch, Power to Lock, Power to Lock Supply Voltage - D4NL-1CFG-B

This solenoid interlock switch is designed for safety applications in automation and machinery. The D4NL series combines a key-operated mechanism and robust plastic housing for reliable operation. Measuring 95mm in length, it features a power-to-lock system powered by a 24V DC supply.

Features & Benefits

• High holding force of 1,300N prevents unauthorised access
• IP67 rating guarantees protection against dust and water
• 2NC + 1NC/1NO safety contacts enhance operational safety
• Operates effectively for both standard and micro loads

Applications

• Ideal for securing access to machinery during maintenance
• Utilised in safety systems to monitor door open/close status
• Applied in access control for hazardous areas
• Designed for integration in automated systems
• Used in industrial environments requiring reliable safety mechanisms

What type of loads can the switch manage effectively?

This switch efficiently handles both standard and micro-load applications, providing versatility in various settings.

Can this switch be used in wet conditions?

Yes, the IP67 rating ensures that it can operate in wet environments, fully protecting it from dust and water ingress.

What is the typical lifespan of this switch's functionality?

The switch features a mechanical durability of over 1,000,000 operations, while electrical durability is rated for 500,000 operations under 3 A at 250 VAC.

How does the key-operated mechanism enhance safety?

The key-operated feature ensures that only authorised personnel can access the machinery, significantly reducing the risk of accidental operation during maintenance.

Brand	Omron
Power to Lock / Unlock	Power to Lock
Supply Voltage	24V dc
Series	D4NL
Actuator Included	No
Actuator Type	Key Operated Switch
Safety Contacts	NO/NC
Conduit Entry	1/2 in NPT
Normal State Configuration	2NC + 1NC/1NO
Auxiliary Contacts	2NC
Housing Material	Plastic
IP Rating	IP67
Length	95mm
Width	88.5mm
Depth	35.5mm
Maximum DC Voltage	250V dc
Standards Met	CCC, CE Certified, cULus Listed

Safety door-lock switch, solenoid lock, 24 VDC, 2NC + 1NC/1NO, 10 A, PG 13.5 entry

Omron D4NL-1CFG-B, D4NL Series Solenoid Interlock Switch, Power to Lock, 24V dc, 2NC + 1NC/1NO

DOWNLOAD CATALOG

D4NL-1CFG-B Datasheet 0900766b814b3d81

D4NL-1CFG-B Omron Machine Safety 0900766b814c686b

D4NL-1CFG-B Brochure - Safety Interlock Switches A700000013017583

D4NL-1CFG-B Guide - Safety Solution A700000013017597

D4NL-1CFG-B Selection Guide - Safety Components A700000013017613

D4NL-1CFG-B Instruction Sheet - D4NL Series A700000013018809
