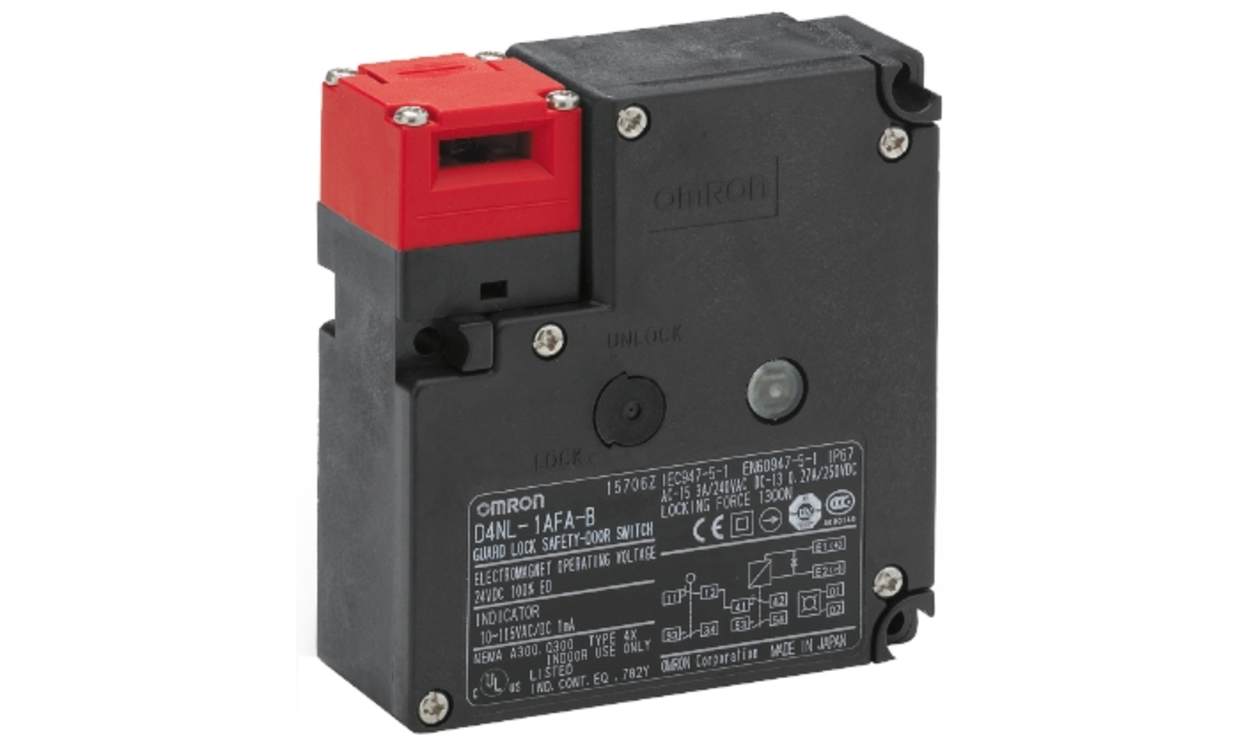

Name: Omron D4NL-4CFA-B4, D4NL Series Solenoid Interlock Switch, Power to Unlock, 24V dc, 2NC + 1NC/1NO
Brand: OMRON
SKU: D4NL-4CFA-B4
Availability: OutOfStock

Omron D4NL-4CFA-B4, D4NL Series Solenoid Interlock Switch, Power to Unlock, 24V dc, 2NC + 1NC/1NO

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4NL-4CFA-B4, D4NL Series Solenoid Interlock Switch, Power to Unlock, 24V dc, 2NC + 1NC/1NO

Part Number : D4NL-4CFA-B4

Availability: Sold out

Detailed Description
Specifications
Downloads

D4NL Safety Guard-lock Door Switch

A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). Sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches.

Safety door switch with either electromagnetic lock or unlock mechanism
Four head mounting directions possible
Four built-in contacts
Strong key holding force, 1300 N
For standard loads and micro loads
IP67 rating (applies to switch only, key hole is IP00)
Contains no harmful substances, such as lead or cadmium, reducing the burden on the environment

Note

Actuators sold separately.
Stock nos. 746-7289 and 746-7132 have a special release key included.

Standards

IEC/EN60947-5-1

Approvals

cULus, TUV, CE, CCC

Brand	Omron
Power to Lock / Unlock	Power to Unlock
Supply Voltage	24V dc
Series	D4NL
Range	D4NL
Safety Contacts	2NC
Conduit Entry	M20
Normal State Configuration	2NC + 1NC/1NO
Auxiliary Contacts	1NO/1NC
Housing Material	Plastic
IP Rating	IP67
Length	88.5mm
Width	95mm
Depth	35.5mm

Omron D4NL-4CFA-B4, D4NL Series Solenoid Interlock Switch, Power to Unlock, 24V dc, 2NC + 1NC/1NO

DOWNLOAD CATALOG

D4NL-4CFA-B4 Machine Guarding and Safety Range Overview 0900766b81451702

D4NL-4CFA-B4 Omron Machine Safety 0900766b814c686b
