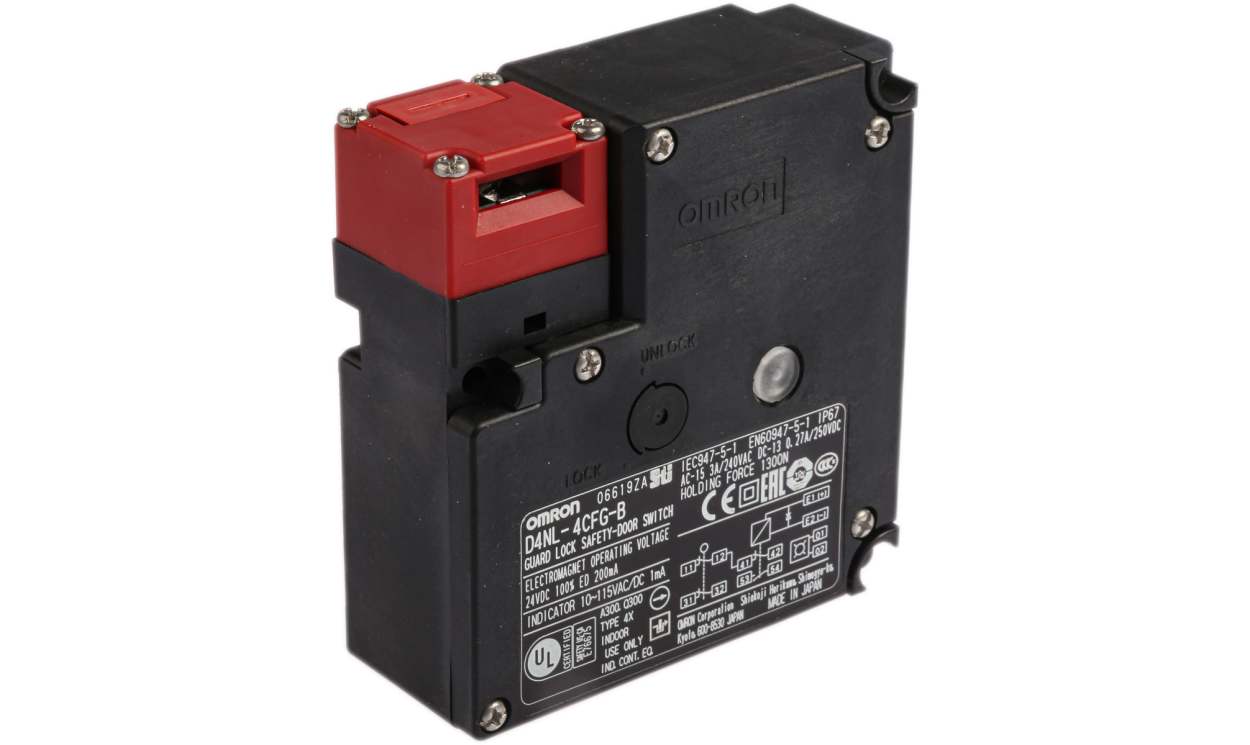

Omron D4NL-4CFG-B, D4NL Series Safety Switch, Power to Lock, 24V dc, 2NC + 1NC/1NO

Name: Omron D4NL-4CFG-B, D4NL Series Safety Switch, Power to Lock, 24V dc, 2NC + 1NC/1NO
Brand: OMRON
SKU: D4NL-4CFG-B
Availability: OutOfStock

Part Number : D4NL-4CFG-B

Guard lock safety-door switch, D4NL, M20, 2NC + 1NC/1NO (slow-action), head: plastic, 24-VDC solenoid lock/mechanical release, 10 to 115 VAC/VDC LED indicator

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron D4NL Series Safety Switch, 24V DC Supply Voltage, IP67 - D4NL-4CFG-B

This safety switch is intended for use in various automation and industrial settings, providing a dependable solution to uphold safety protocols. With its power-to-lock functionality, it is pivotal in preventing unauthorised access to hazardous areas. Its robust construction and IP67 rating make it suitable for challenging environments.

Features & Benefits

• Operates at a supply voltage of 24Vdc, compatible with automation systems
• Provides both normally open and normally closed safety contacts
• A lightweight plastic housing for durability
• Equipped with M20 conduit entry for straightforward installation

Applications

• Utilised with machinery to secure safety enclosures
• Integrated into automated systems for safety interlock
• Employed in manufacturing facilities to improve worker protection
• Suitable for scenarios requiring reliable access control

What type of actuator is compatible with this device?

The device does not include an actuator, allowing flexibility in selection based on specific application requirements.

What is the significance of having both NO and NC contacts?

Having both normally open and normally closed contacts provides versatility in circuit design, accommodating varied operational requirements.

Is it straightforward to install the device?

Yes, the M20 conduit entry facilitates the installation process, making integration into existing systems more efficient.

Brand	Omron
Power to Lock / Unlock	Power to Lock
Supply Voltage	24V dc
Series	D4NL
Actuator Included	No
Safety Contacts	NO/NC
Normal State Configuration	2NC + 1NC/1NO
Conduit Entry	M20
Auxiliary Contacts	2NC
Housing Material	Plastic
IP Rating	IP67
Length	95mm
Width	88.5mm
Depth	35.5mm

Guard lock safety-door switch, D4NL, M20, 2NC + 1NC/1NO (slow-action), head: plastic, 24-VDC solenoid lock/mechanical release, 10 to 115 VAC/VDC LED indicator

Omron D4NL-4CFG-B, D4NL Series Safety Switch, Power to Lock, 24V dc, 2NC + 1NC/1NO

DOWNLOAD CATALOG

D4NL-4CFG-B Datasheet 0900766b814b3d87

D4NL-4CFG-B Omron Machine Safety 0900766b814c686b

D4NL-4CFG-B Selection Guide - Safety Components A700000012779080

D4NL-4CFG-B Guide - D4 Series A700000012779362

D4NL-4CFG-B Brochure - Safety Interlock Switches A700000012779436

D4NL-4CFG-B Instruction Sheet - D4NL Series A700000012781090
