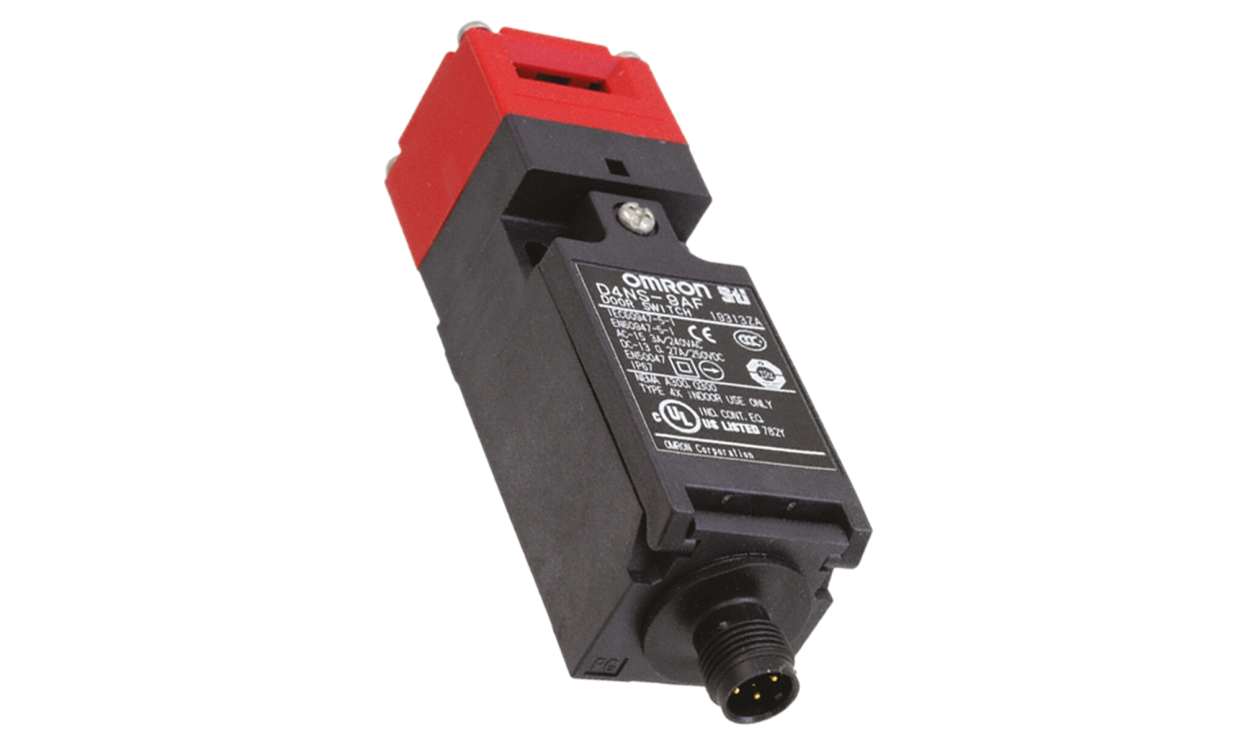

Name: Omron D4NS-9BF, D4NS Series Safety Interlock Switch, 2NC
Brand: OMRON
SKU: D4NS-9BF
Availability: OutOfStock

Omron D4NS-9BF, D4NS Series Safety Interlock Switch, 2NC

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4NS-9BF, D4NS Series Safety Interlock Switch, 2NC

Part Number : D4NS-9BF

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4NS Safety Door Switch, Plastic

The D4NS is a labour saving and environmentally friendly safety door switch with separate actuator and make-before-break contacts (MBB). This interlock switch is ideal for use in applications with sliding, hinged and removable guards that need to be closed for operational safety.

Standardised gold-clad contacts for high contact reliability
Applicable to both standard loads and micro loads
Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment
Conforms to the Machinery Directive and Low Voltage Directive

Note

Actuators are sold separately.

Standards

EN60947-5-1 (approved direct opening), UL508 CSA C22.2 No.14, GS-ET-15, GB14048.5, EN50047, EN1088.

Approvals

TUV, UL, CCC, CSA.

Interlock Switch

Brand	Omron
Series	D4NS
Safety Contacts	2NC
Conduit Entry	M12
Normal State Configuration	2NC
Housing Material	Plastic
IP Rating	IP67
Maximum AC Voltage	240V
Width	31mm
Length	96mm
Maximum DC Voltage	250V
Depth	30mm

Omron D4NS-9BF, D4NS Series Safety Interlock Switch, 2NC

DOWNLOAD CATALOG

D4NS-9BF Omron Machine Safety 0900766b814c686b

D4NS-9BF Datasheet 0900766b8157dcb5
