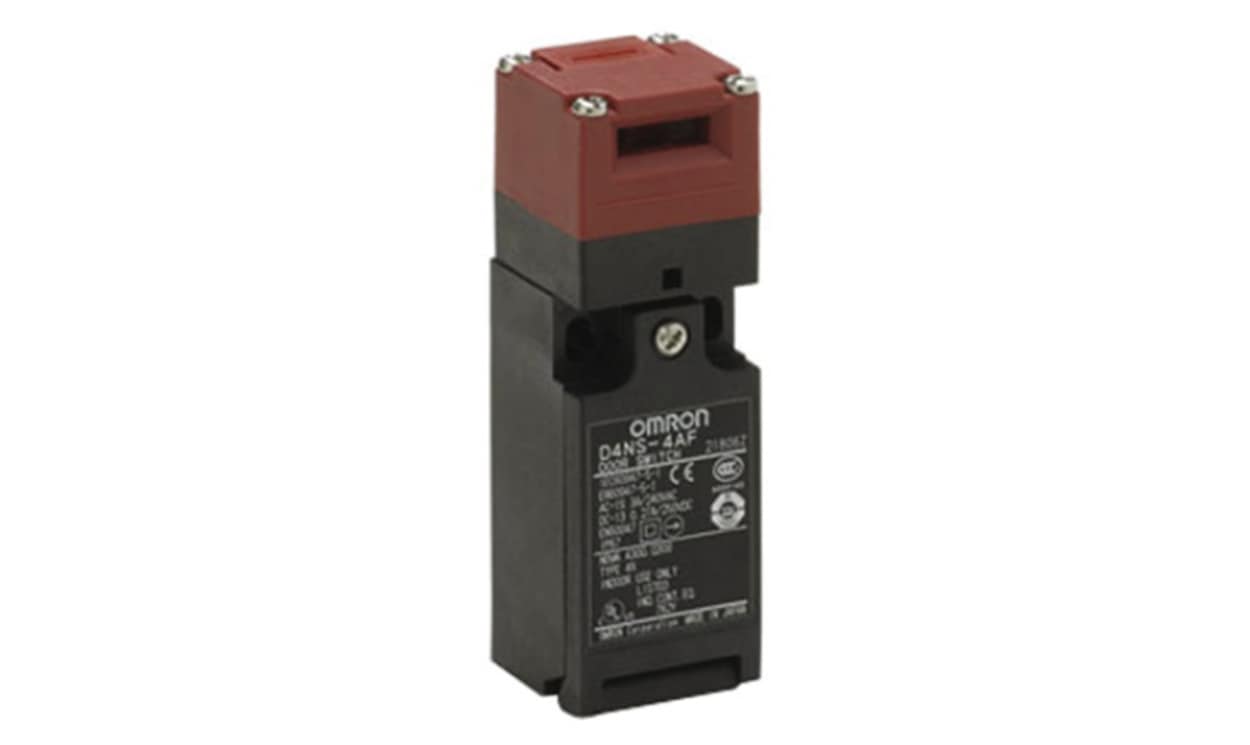

Omron D4NS Safety Door Switch, Plastic

The D4NS is a labour saving and environmentally friendly safety door switch with separate actuator and make-before-break contacts (MBB). This interlock switch is ideal for use in applications with sliding, hinged and removable guards that need to be closed for operational safety.

Standardised gold-clad contacts for high contact reliability
Applicable to both standard loads and micro loads
Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment
Conforms to the Machinery Directive and Low Voltage Directive

Note

Actuators are sold separately.

Standards

EN60947-5-1 (approved direct opening), UL508 CSA C22.2 No.14, GS-ET-15, GB14048.5, EN50047, EN1088.

Approvals

TUV, UL, CCC, CSA.

Interlock Switch

Brand	Omron
Series	D4NS
Actuator Included	No
Conduit Entry	PG13.5
Normal State Configuration	2NC/1NO
Housing Material	Plastic
IP Rating	IP67
Maximum AC Voltage	240V
Depth	30.6mm
Maximum DC Voltage	250V
Width	31mm
Length	96mm
