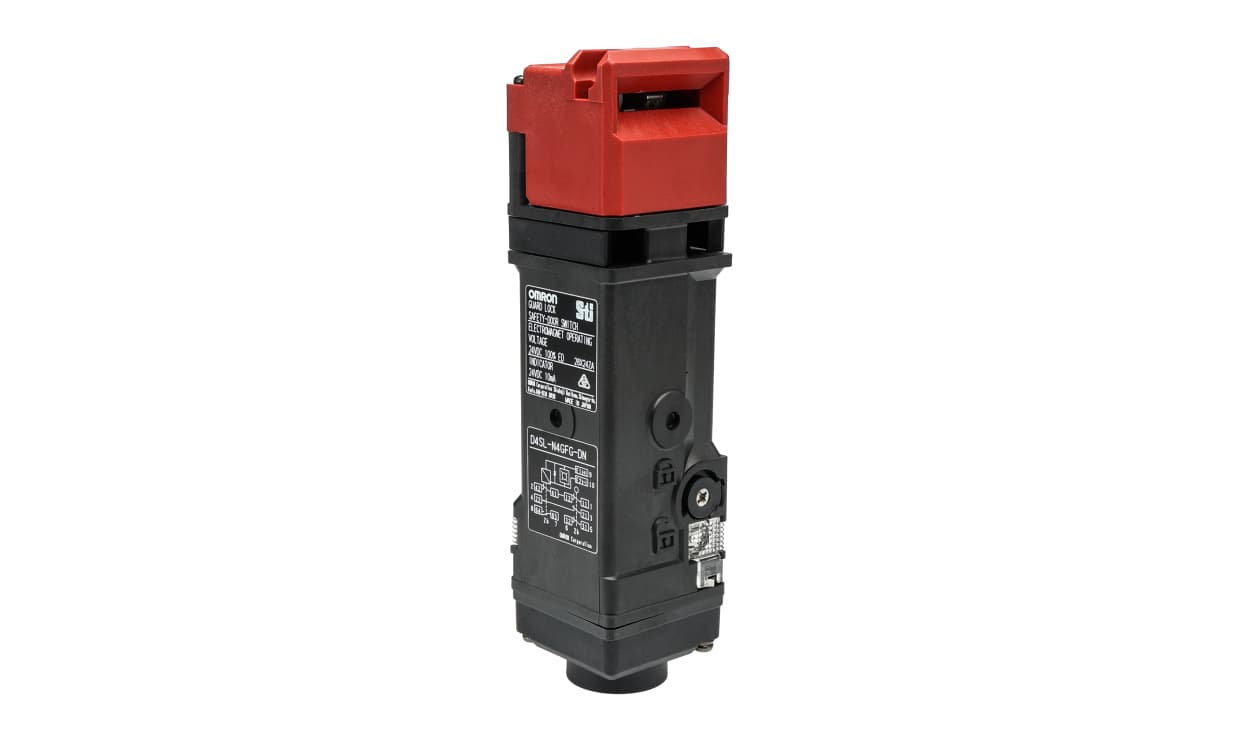

Name: Omron D4SL-N4GFG-DN, D4SL Series Solenoid Interlock Switch, Power to Lock, 24V dc, 3NC + 1NC/1NO
Brand: OMRON
SKU: D4SL-N4GFG-DN
Availability: OutOfStock

Omron D4SL-N4GFG-DN, D4SL Series Solenoid Interlock Switch, Power to Lock, 24V dc, 3NC + 1NC/1NO

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4SL-N4GFG-DN, D4SL Series Solenoid Interlock Switch, Power to Lock, 24V dc, 3NC + 1NC/1NO

Part Number : D4SL-N4GFG-DN

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4SL Series Solenoid Interlock Switch, 24V DC Supply Voltage, IP67 Rated Switch - D4SL-N4GFG-DN

This solenoid interlock switch is designed to enhance safety in automation settings. With a robust plastic housing, it features a compact design measuring 155mm in length, 39mm in width, and 39mm in depth. The switch operates at a supply voltage of 24V DC and is certified with UL 508, ensuring reliability in various applications.

Features & Benefits

• IP67 rating protects against dust and water ingress
• Quick wiring setup with one-touch connection methods
• Supports a significant key holding force of 1,300 N
• Directly drives solenoids from a control system for simplicity

Applications

• Used for securing access to hazardous machinery
• Effective in safety circuits for industrial automation
• Ideal for requiring compact guard locking solutions
• Assists in monitoring door status in automated systems
• Utilised in environments demanding high safety compliance

How does the IP67 rating enhance operational longevity?

The IP67 rating ensures that the switch is protected against dust ingress and can withstand temporary immersion in water, which prolongs its operational lifespan in challenging environments.

What types of applications benefit from the 3NC + 1NC/1NO configuration?

This configuration is advantageous for applications where multiple safety circuits are needed, providing flexibility in monitoring and controlling multiple points of access simultaneously.

Can this switch be directly interfaced with a control system?

Yes, the switch can be integrated with a control system, allowing for straightforward direct solenoid activation, making installation and operation efficient.

Brand	Omron
Power to Lock / Unlock	Power to Lock
Supply Voltage	24V dc
Series	D4SL
Normal State Configuration	3NC + 1NC/1NO
Length	155mm
Width	39mm
Pole Configuration	3PST-NC + DPST-NO/NC
Depth	39mm

Omron D4SL-N4GFG-DN, D4SL Series Solenoid Interlock Switch, Power to Lock, 24V dc, 3NC + 1NC/1NO

DOWNLOAD CATALOG

D4SL-N4GFG-DN Selection Guide - Safety Components A700000014065477

D4SL-N4GFG-DN Guide - Safety Solution A700000014065587

D4SL-N4GFG-DN Brochure - Safety Interlock Switches A700000014065654
