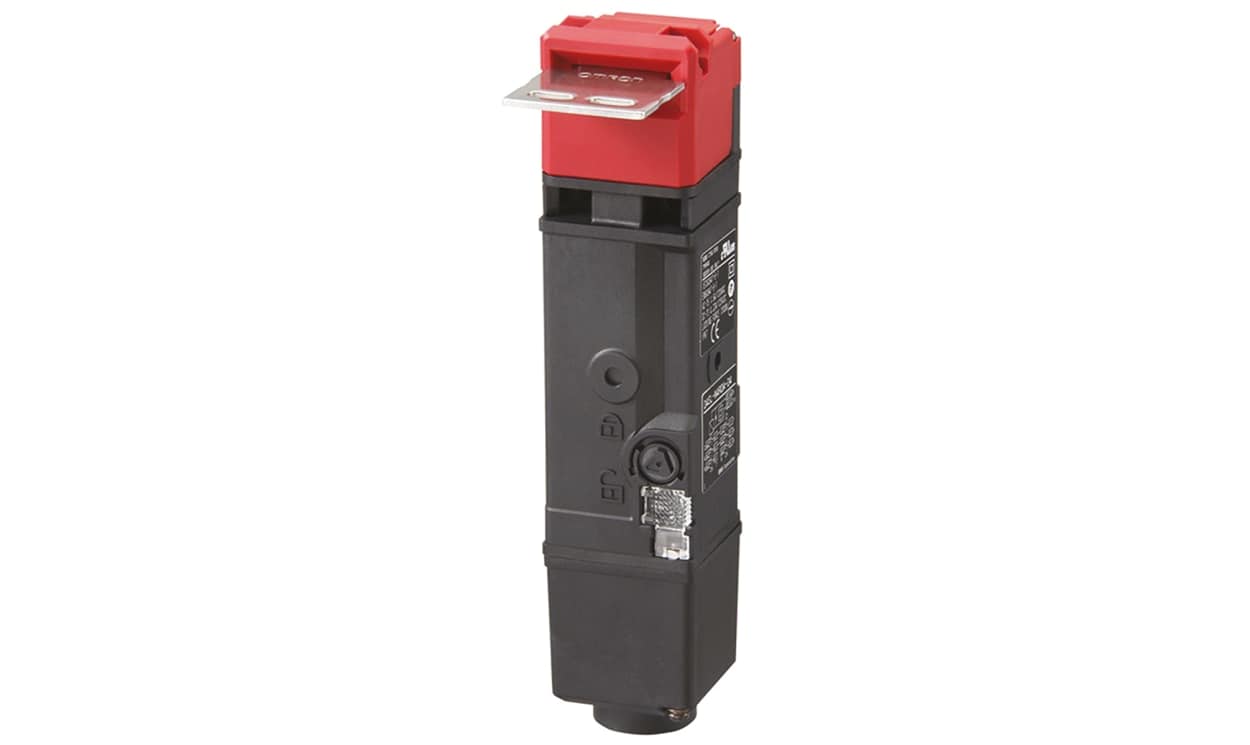

OMRON D4SL-N4RDA-D | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, 3NC Safety, 3NC Aux

Name: OMRON D4SL-N4RDA-D | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, 3NC Safety, 3NC Aux
Brand: OMRON
SKU: D4SL-N4RDA-D
Availability: InStock

Part Number : D4SL-N4RDA-D

Built with 3NC safety contacts plus 3NC auxiliary contacts, a 24 V DC supply and power-to-unlock operation, the OMRON D4SL-N4RDA-D is part of the D4SL-N series of solenoid interlock switches. For installation, note an M20 conduit entry, a metal housing rated IP67 and dimensions of 39 x 39 x 179.9 mm (L x W x D). The actuator is not included.

Locking: power to unlock
Supply voltage: 24 V DC
Safety contacts: 3NC
Auxiliary contacts: 3NC
Conduit entry: M20
Protection: IP67

Availability: low stock

Detailed Description
Specifications
Downloads

D4SL Safety Guard-lock Door Switch

The D4SL-N series from Omron is a small Class 6-contact Guard Lock Switch. The significantly reduced solenoid current of the D4SL-N contributes to reduced power supply costs. The safety-door switch also conforms to the following EC Directives: Machinery Directive, Low Voltage Directive, EMC Directive, EN1088, EN60204-1, GS-ET-19.

Reduced wiring time with one-touch attachment and removal
Two types of wiring method, terminal block or connector
Key holding force of 1300 N
Key insertion point can be changed without detaching the head
Drive solenoids directly from the controller
Both power to lock and power to unlock models available
Orange LED indicator (selected models)
Supply voltage 24 Vdc

Note

Actuators sold separately.

Standards

EN60947-5-1 (certified direct opening), UL508, CSA C22.2 No.14, GB14048.5, EN60947-5-1.

Approvals

TÜV SÜD , UL, CQC (CCC), KOSHA.

Brand	Omron
Power to Lock / Unlock	Power to Unlock
Supply Voltage	24V dc
Series	D4SL-N
Actuator Included	No
Safety Contacts	3NC
Conduit Entry	M20
Auxiliary Contacts	3NC
Housing Material	Metal
IP Rating	IP67
Length	39mm
Width	39mm
Depth	179.9mm

OMRON D4SL-N4RDA-D | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, 3NC Safety, 3NC Aux
