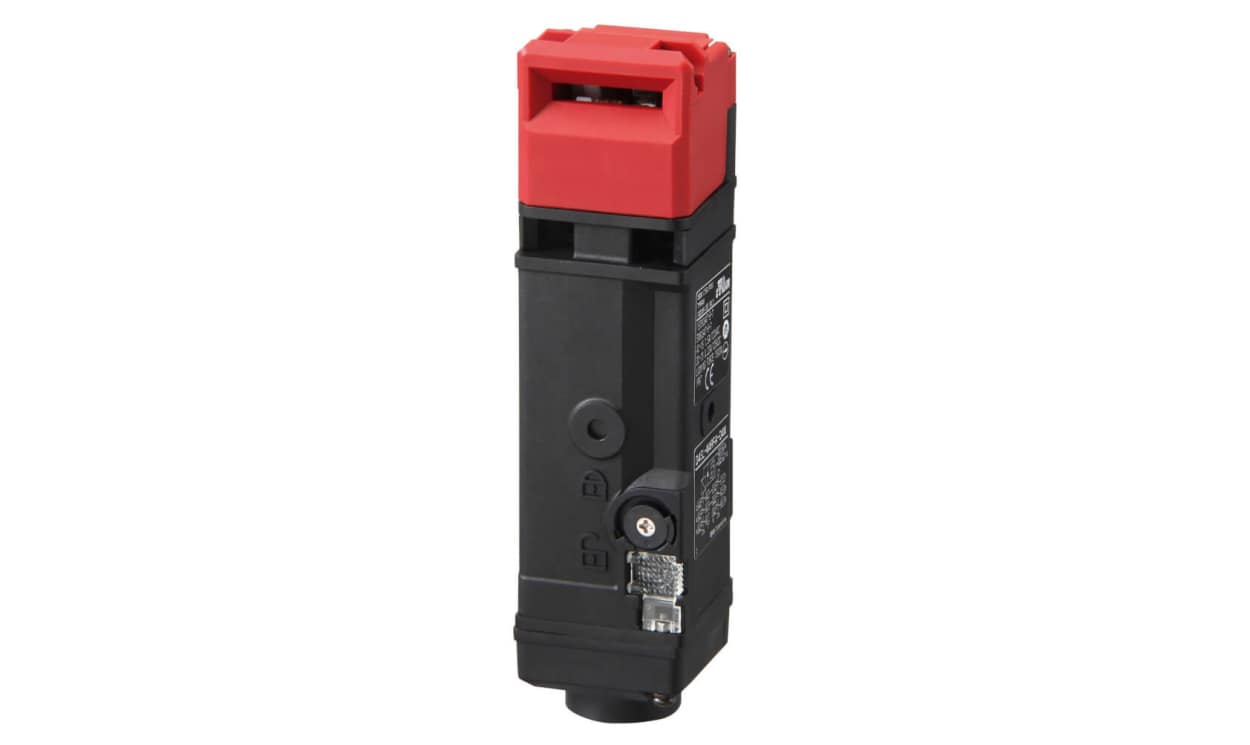

OMRON D4SLN4NDAD | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, NO/2NC Safety, 2NC/1NO Aux

Name: OMRON D4SLN4NDAD | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, NO/2NC Safety, 2NC/1NO Aux
Brand: OMRON
SKU: D4SLN4NDAD
Availability: InStock

Part Number : D4SLN4NDAD

Built with NO/2NC safety contacts plus 2NC/1NO auxiliary contacts, a 24 V DC supply and power-to-unlock operation, the OMRON D4SLN4NDAD is part of the D4SL-N series of solenoid interlock switches. Physical details include dimensions of 39 x 39 x 179.9 mm (L x W x D), an M20 conduit entry and a metal housing rated IP67. The actuator is not included.

Locking: power to unlock
Supply voltage: 24 V DC
Safety contacts: NO/2NC
Auxiliary contacts: 2NC/1NO
Standards: CE
Conduit entry: M20

Availability: low stock

Detailed Description
Specifications
Downloads

D4SL Safety Guard-lock Door Switch

The D4SL-N series from Omron is a small Class 6-contact Guard Lock Switch. The significantly reduced solenoid current of the D4SL-N contributes to reduced power supply costs. The safety-door switch also conforms to the following EC Directives: Machinery Directive, Low Voltage Directive, EMC Directive, EN1088, EN60204-1, GS-ET-19.

Reduced wiring time with one-touch attachment and removal
Two types of wiring method, terminal block or connector
Key holding force of 1300 N
Key insertion point can be changed without detaching the head
Drive solenoids directly from the controller
Both power to lock and power to unlock models available
Orange LED indicator (selected models)
Supply voltage 24 Vdc

Note

Actuators sold separately.

Standards

EN60947-5-1 (certified direct opening), UL508, CSA C22.2 No.14, GB14048.5, EN60947-5-1.

Approvals

TÜV SÜD , UL, CQC (CCC), KOSHA.

Omron D4SL-N Series Solenoid Interlock Switch, 24V DC Supply Voltage, IP67 - D4SLN4NDAD

The solenoid interlock switch is vital for safety in automated settings. It allows for secure locking and unlocking mechanisms in various industrial applications while providing dependable operation. Designed for control systems, this 24V DC interlock switch offers assurance in safety-critical situations.

Features & Benefits

• Metal housing improves durability, suitable for harsh environments
• IP67 rating ensures protection against dust and water ingress
• NO/2NC safety contacts support secure circuit configurations
• Auxiliary contacts enhance functionality for more complex systems
• Easy installation with M20 conduit entry for quick setup

Applications

• Utilised with machinery requiring secure access control
• Applied in assembly lines to boost operational safety
• Integrated into robotics to protect maintenance personnel
• Used in automated gates to enhance operational reliability
• Employed in conveyor systems where safety interlocks are essential

What is the power supply requirement for this switch?

The switch operates on a 24V DC power supply, making it suitable for numerous industrial applications.

How does this product ensure safety in automated systems?

It features NO/2NC safety contacts for secure machinery control and prevention of unintentional operation.

Can it be installed in damp environments?

Yes, the IP67 rating indicates protection against dust and the capability to withstand water immersion, making it suitable for wet conditions.

Is it compatible with other automation systems?

Yes, this product is designed to integrate effectively with various control systems, enhancing safety and functionality.

Brand	Omron
Power to Lock / Unlock	Power to Unlock
Supply Voltage	24V dc
Series	D4SL-N
Actuator Included	No
Safety Contacts	NO/2NC
Conduit Entry	M20
Auxiliary Contacts	2NC/1NO
Housing Material	Metal
IP Rating	IP67
Standards Met	CE
Width	39mm
Length	39mm
Depth	179.9mm

OMRON D4SLN4NDAD | D4SL-N Solenoid Interlock Switch | Power to Unlock, 24 V DC, NO/2NC Safety, 2NC/1NO Aux

DOWNLOAD CATALOG

D4SLN4NDAD Datasheet - D4SLN4NDAD A700000012229009

D4SLN4NDAD Selection Guide - Safety Components A700000012229031

D4SLN4NDAD Guide - Safety Solution A700000012229266

D4SLN4NDAD Brochure - Safety Interlock Switches A700000012229382
