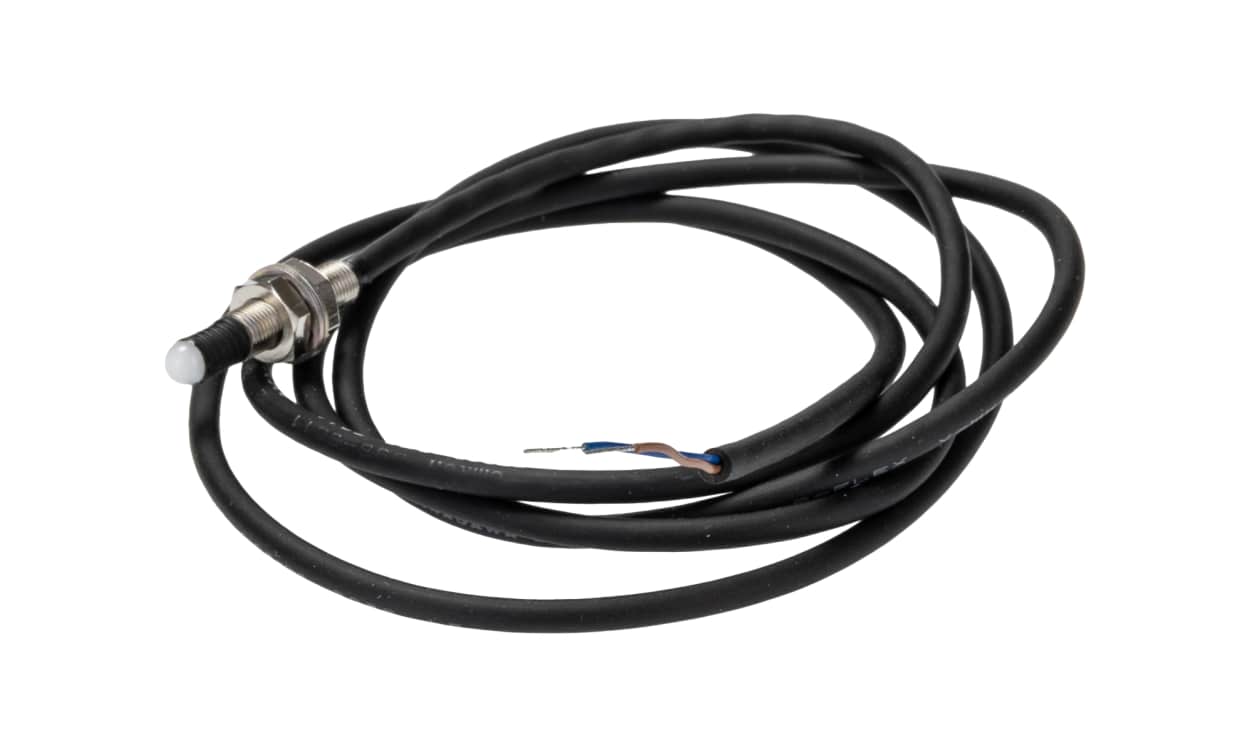

Omron D5B-5011, D5B Series Plunger Limit Switch, IP67, 30mA Max

Name: Omron D5B-5011, D5B Series Plunger Limit Switch, IP67, 30mA Max
Brand: OMRON
SKU: D5B-5011
Availability: InStock

Part Number : D5B-5011

Availability: low stock

Detailed Description
Specifications
Downloads

Omron D5B Series Limit Switch, 30mA Maximum Current - D5B-5011

This limit switch provides precise control and effective monitoring in a range of industrial settings. Tailored for automation and machinery applications, it promotes safe operation through its sturdy construction and high-performance specifications. The slow action mechanism, combined with the IP67 rating, makes this product suitable for severe environments where dust and moisture could pose safety concerns.

Features & Benefits

• Slow action design minimises unintended activations
• IP67 rating ensures performance in challenging conditions
• Plunger actuator delivers high sensitivity for precise operation
• Operates efficiently at a maximum current of 30 mA
• Endures up to 10 million mechanical cycles
• Suitable for back mounting, simplifying the installation process

Applications

• Used in automated assembly lines for accurate position detection
• Ideal for machine safety systems to prevent accidents
• Employed in conveyor systems for effective operational control
• Utilised in robotics for precise movement registration
• Essential for electrical equipment requiring reliable limit detection

How should it be installed for optimal performance?

It should be mounted in a position that ensures the actuator aligns directly with the moving component for accurate operation.

What is the maximum voltage it can handle?

It can manage a maximum DC voltage of 30V, suitable for various low-voltage applications.

How can I determine if it needs replacement?

Monitor for changes in operation, such as erratic responses or failure to activate, which may indicate a need for replacement.

Brand	Omron
Actuator Type	Plunger
IP Rating	IP67
Maximum Current	30mA
Maximum DC Voltage	30V
Series	D5B
Action Type	Slow Action
Length	24.5mm
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-10°C
Width	(Dia) 9.2mm
Mechanical Life	10000000Operations
Mounting Orientation	Back
Operating Force	1.96 N
