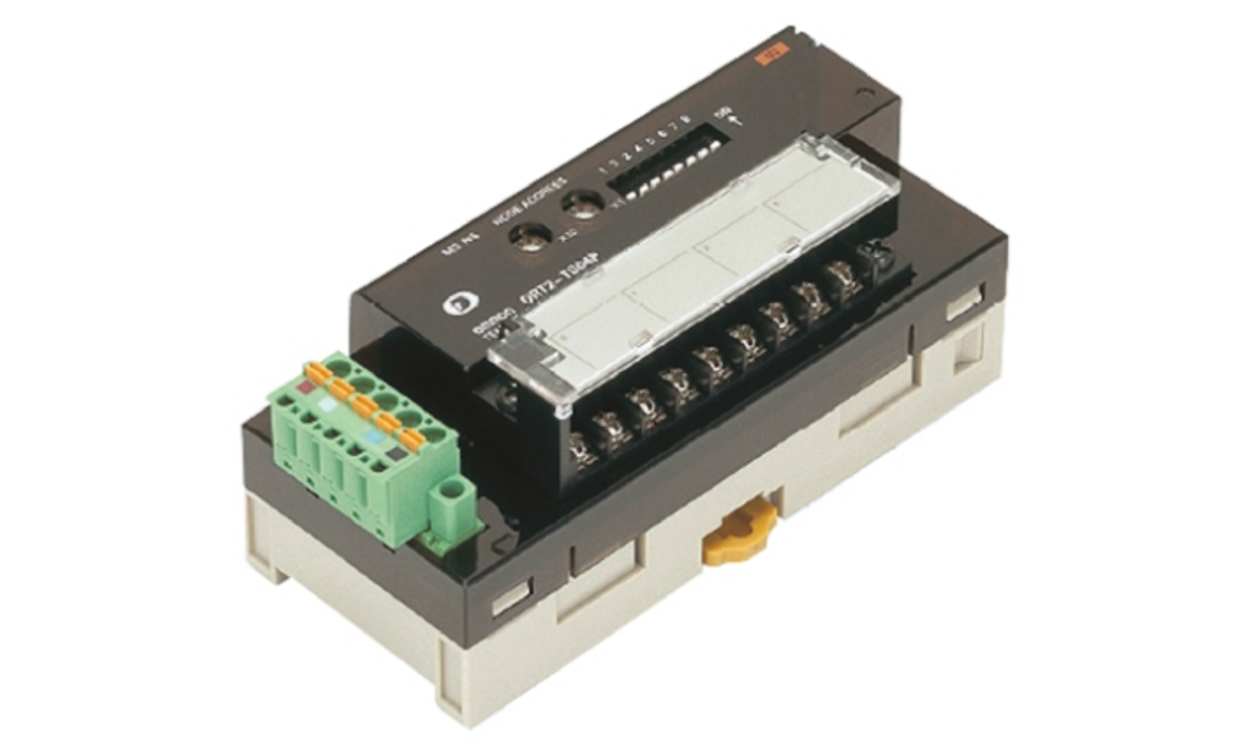

OMRON DRT2-TS04T | Thermocouple Input Unit | 4 Inputs, DRT2 Series
Part Number : DRT2-TS04T
With 4 thermocouple inputs, OMRON DRT2-TS04T is a PLC expansion module for the DRT2 Series, measuring 115 x 53.1 x 49.7 mm.
- Part number: DRT2-TS04T
- Number of inputs: 4
- Input type: Thermocouple
- For use with: DRT2 Series
- Dimensions: 115 x 53.1 x 49.7 mm
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
DRT2 Temperature Input Terminals
The Temperature Input Terminal can be used with almost the same functionality as an Analogue Input Terminal, such as with scaling and comparator functions
Enhanced performance is provided with functionality specific to the Temperature Input Terminal, such as the recording the operating time in a preset temperature range and temperature difference detection between input channels
Enhanced performance is provided with functionality specific to the Temperature Input Terminal, such as the recording the operating time in a preset temperature range and temperature difference detection between input channels
Omron DRT2 Temperature Input Terminals
| Brand | Omron |
| Accessory Type | PLC Expansion Module |
| Input Type | Thermocouple |
| Number of Inputs | 4 |
| For Use With | DRT2 Series |
| Dimensions | 115 x 53.1 x 49.7 mm |
OMRON DRT2-TS04T | Thermocouple Input Unit | 4 Inputs, DRT2 Series
