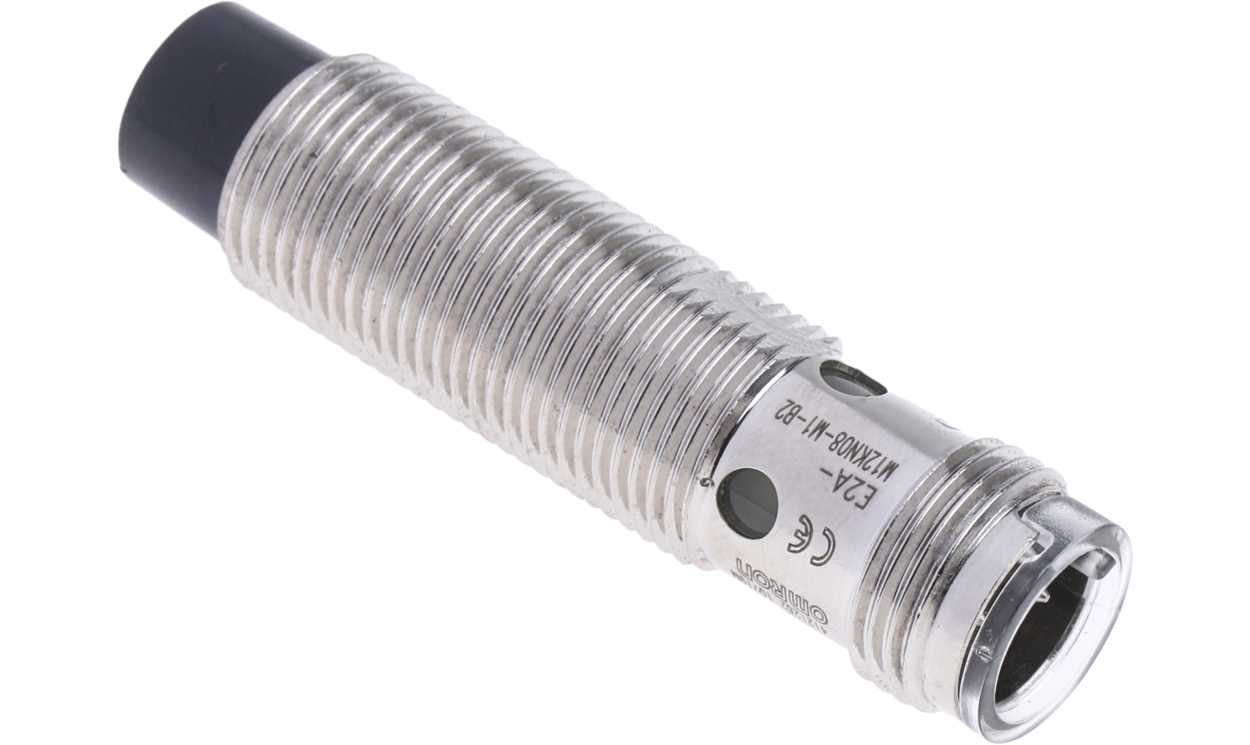

OMRON E2A-M12KN08-M1-B2 | Inductive Proximity Sensor | M12, 8 mm PNP NC, M12 Connector
Part Number : E2A-M12KN08-M1-B2
With an 8 mm detection range and a PNP NC output, the OMRON E2A-M12KN08-M1-B2 is an M12 inductive proximity sensor wired through an M12 connector and rated for 12 to 24 V DC.
- Non-flush mounting (unshielded), brass housing
- Output: PNP NC, 200 mA switching current
- Supply: 12 to 24 V DC, max. 32 V
- Switching frequency: 800 Hz
- Protection: IP67
- Minimum operating temperature: -40 °C
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
Omron E2A Series Proximity Sensor, NC Output Function, IP67 - E2A-M12KN08-M1-B2
This inductive proximity sensor is ideal for automation applications that require precise object detection. With an 8mm detection range, it operates reliably in demanding environments. The IP67 rating ensures protection against dust and water, making it suitable for industrial settings.
Features & Benefits
• Offers a larger sensing distance compared to standard sensors
• Inductive technology ensures consistent operation across various conditions
• Non-flush mount design simplifies installation in tight spaces
• PNP output configuration allows for easy integration with control systems
• Operating temperature range of -40°C to +70°C suits extreme environments
• Unshielded design enhances sensitivity to nearby targets
• Inductive technology ensures consistent operation across various conditions
• Non-flush mount design simplifies installation in tight spaces
• PNP output configuration allows for easy integration with control systems
• Operating temperature range of -40°C to +70°C suits extreme environments
• Unshielded design enhances sensitivity to nearby targets
Applications
• Utilised in assembly line machinery for object detection
• Deployed in conveyor systems to monitor product positioning
• Suitable for packaging automation that requires accurate sensing
• Used in robotic systems for precise movement control
• Appropriate for industrial requiring environmental resilience
• Deployed in conveyor systems to monitor product positioning
• Suitable for packaging automation that requires accurate sensing
• Used in robotic systems for precise movement control
• Appropriate for industrial requiring environmental resilience
What type of objects can be detected?
It effectively detects ferrous metal objects, making it suitable for various industrial applications.
How is it powered?
The sensor operates within a supply voltage range of 12 to 24V DC, ensuring compatibility with most industrial power sources.
What should be done if the sensor fails to detect objects?
Verify the wiring connections and ensure the sensor is correctly aligned with the target object for optimal performance.
Can this be integrated with existing automation systems?
Yes, its PNP output configuration allows for straightforward integration with standard control systems commonly used in automation.
| Brand | Omron |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 8 mm (0.315 in) |
| Output Function | NC |
| Connection Type | M12 |
| Supply Voltage | 12 → 24 V dc |
| Length | 34 mm (1.34 in) |
| IP Rating | IP67 |
| Digital Switching Output Type | PNP |
| Mounting Type | Non-Flush |
| Shielding | Unshielded |
| Thread Size | M12 |
| Switching Current | 200 mA |
| Switching Frequency | 800 Hz |
| Maximum DC Voltage | 32V |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Maximum Switching Frequency | 800Hz |
| Housing Material | Brass |
| Depth | 9.4 mm (0.370 in) |
OMRON E2A-M12KN08-M1-B2 | Inductive Proximity Sensor | M12, 8 mm PNP NC, M12 Connector
