OMRON E2A-M12KS04-M1-C2 | Inductive Proximity Sensor | M12, 4 mm NPN NC, M12 Connector

Name: OMRON E2A-M12KS04-M1-C2 | Inductive Proximity Sensor | M12, 4 mm NPN NC, M12 Connector
Brand: OMRON
SKU: E2A-M12KS04-M1-C2
Availability: InStock

Part Number : E2A-M12KS04-M1-C2

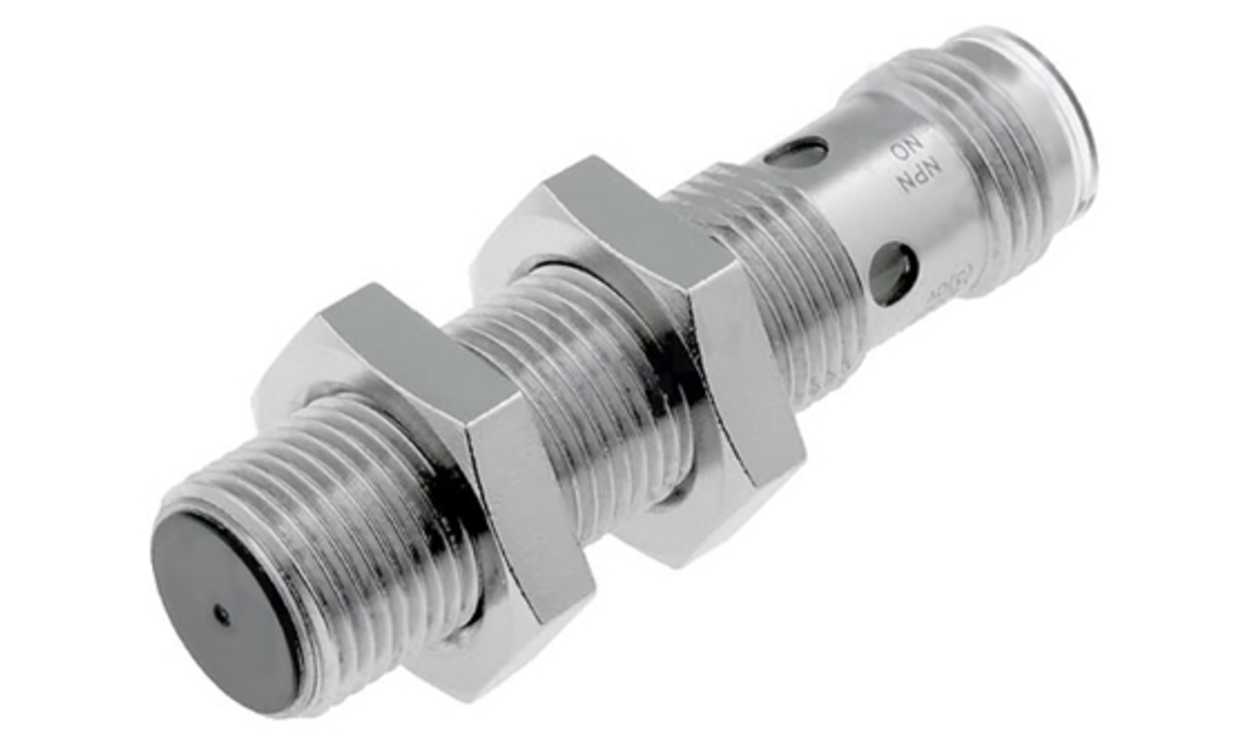

Built around an M12 threaded body, the OMRON E2A-M12KS04-M1-C2 inductive proximity sensor offers 4 mm of sensing range with an NPN NC output, connected by an M12 connector and powered from 12 to 24 V DC.

Flush mounting, brass housing
Output: NPN NC, 200 mA switching current
Supply: 12 to 24 V DC, max. 32 V
Switching frequency: 1 kHz
Protection: IP67
Operating temperature: -40 °C to +70 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2A Series Proximity Sensor, 4mm Detection Range, IP67 - E2A-M12KS04-M1-C2

This proximity sensor is designed for precision sensing applications within automation and mechanical industries. Its inductive technology allows for accurate detection of metallic objects at a sensing range of 4mm. The durable design and high-frequency capability make it suitable for industrial environments, ensuring consistent performance across a variety of applications.

Features & Benefits

• Robust brass housing enhances durability in challenging conditions
• IP67 rating provides protection against dust and water ingress
• Designed for flush mounting, facilitating installation and alignment
• Inductive technology enables non-contact sensing, reducing wear
• Protection against reverse polarity and overload enhances operational safety
• High switching frequency accommodates dynamic sensing requirements

Applications

• Utilised in assembly line automation for object detection
• Ideal for position sensing in CNC machines
• Employed in conveyor systems to improve operational efficiency
• Suitable for detecting metal in packaging processes
• Used in safety systems to ensure machinery functionality

What supply voltage is required for optimal operation?

The sensor operates effectively with a supply voltage between 12 to 24V DC.

Can it handle extreme temperatures?

Yes, it functions reliably in temperature ranges from -40 to +70°C.

How does this sensor protect against electrical issues?

It features short circuit and reverse polarity protection to safeguard functionality.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	NPN
Output Function	NC
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	34mm
Mounting Type	Flush
Housing Material	Brass
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
Switching Current	200 mA
Switching Frequency	1 kHz
Series	E2A
Maximum Switching Frequency	1kHz
