OMRON E2A-S08KN04-WP-B1 2M | Inductive Proximity Sensor | M8, 4 mm PNP NO, 2 m Cable

Name: OMRON E2A-S08KN04-WP-B1 2M | Inductive Proximity Sensor | M8, 4 mm PNP NO, 2 m Cable
Brand: OMRON
SKU: E2A-S08KN04-WP-B1 2M
Availability: InStock

Part Number : E2A-S08KN04-WP-B1 2M

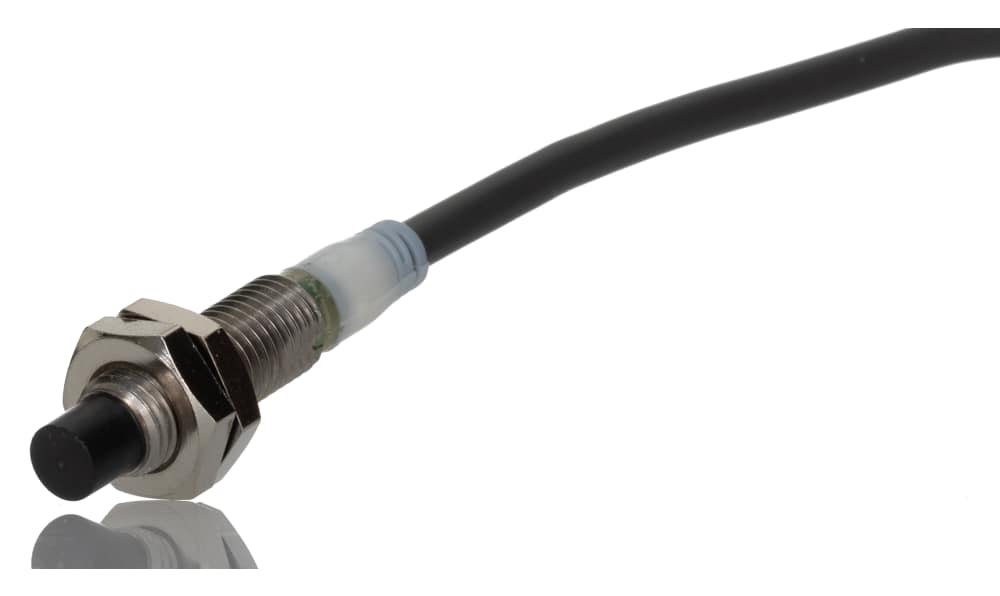

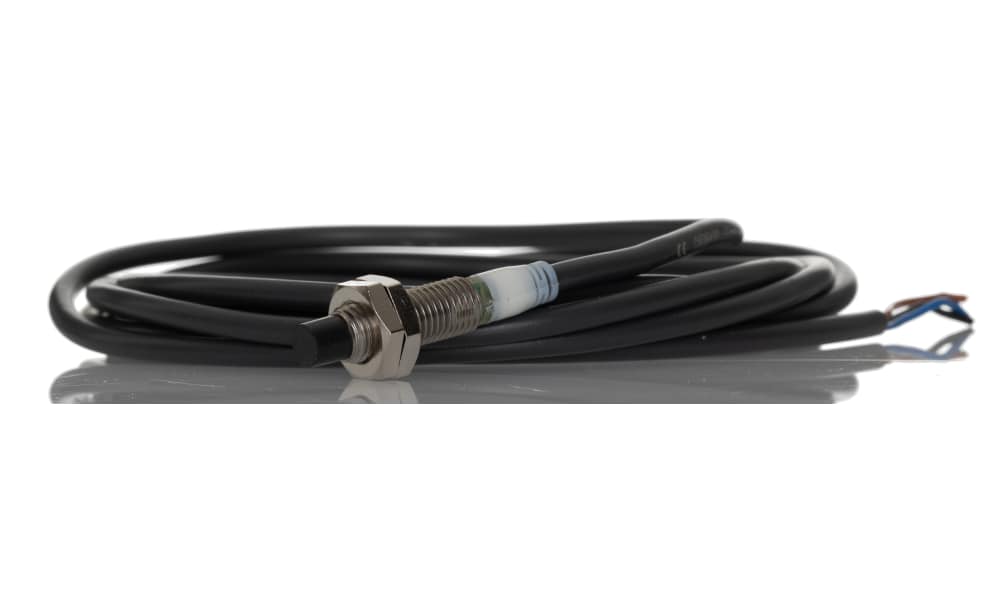

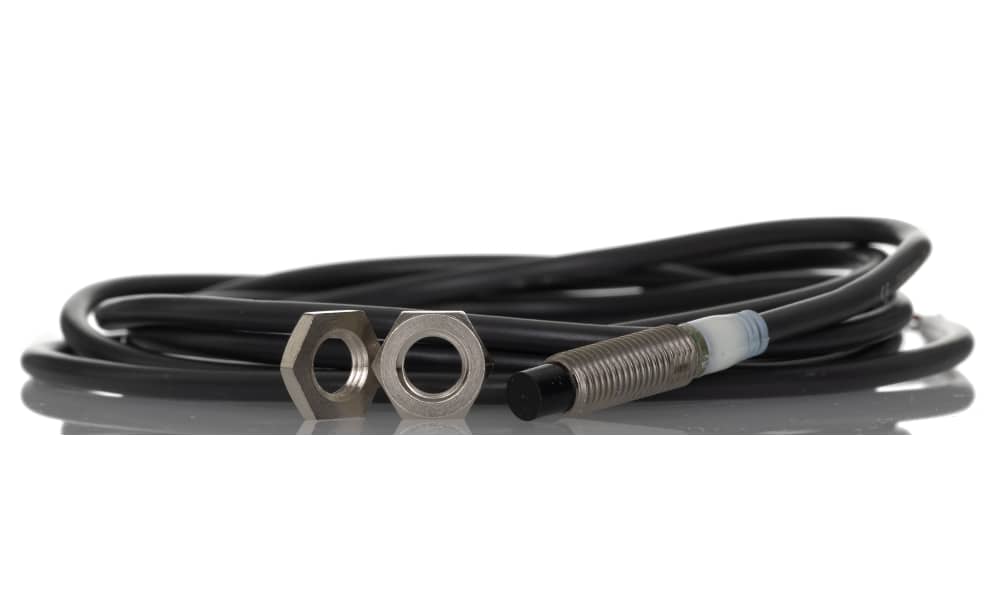

Built around an M8 threaded body, the OMRON E2A-S08KN04-WP-B1 2M inductive proximity sensor offers 4 mm of sensing range with a PNP NO output, connected by a 2 m pre-wired cable and powered from 12 to 24 V DC.

Non-flush mounting, stainless steel housing
Output: PNP NO
Supply: 12 to 24 V DC, max. 32 V
Switching frequency: 1 kHz
Protection: IP67, reverse polarity protection, short-circuit protection
Minimum operating temperature: -40 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2A Series Proximity Sensor, 4mm Detection Range, IP67 - E2AS08KN04WPB12M

This proximity sensor is designed for effective sensing in industrial environments. With a cylindrical shape and a threaded barrel, it achieves reliable detection at a distance of 4mm. Its robust stainless steel casing ensures longevity even in demanding settings. The sensor meets the IP67 protection standard, making it suitable for tough conditions.

Features & Benefits

• Detects objects up to 4mm away
• PNP output for straightforward integration with control systems
• High-speed switching frequency of 1kHz
• Durable stainless steel body for extended use
• IP67 rating for moisture and dust resistance

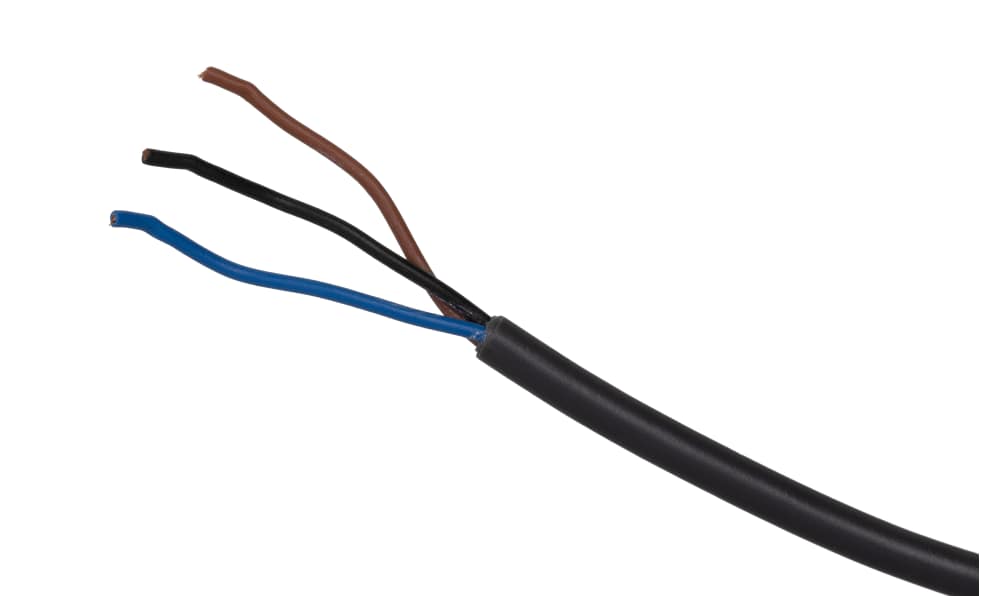

• Pre-cabled connection for simplified installation

Applications

• Used in automated assembly lines
• Suitable for packaging machinery
• Effective in robotics for precise positioning
• Employed in conveyor systems for object detection
• Ideal for detecting product presence in manufacturing

Can it operate in extreme temperatures?

Yes, it functions between -40°C to +70°C.

Will it work in a dusty environment?

Yes, it has an IP67 rating for resistance to dust and moisture.

Is it capable of high-speed operation?

Yes, it supports a maximum frequency of 1kHz.

Can it be easily integrated into existing systems?

Yes, it features a PNP output for straightforward integration.

Does it require special mounting techniques?

It can be mounted non-flush for flexible installation.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
Length	40mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Maximum Switching Frequency	1kHz
Short Circuit Overload Protection	Yes
Depth	5.8mm
Reverse Polarity Protection	Yes
