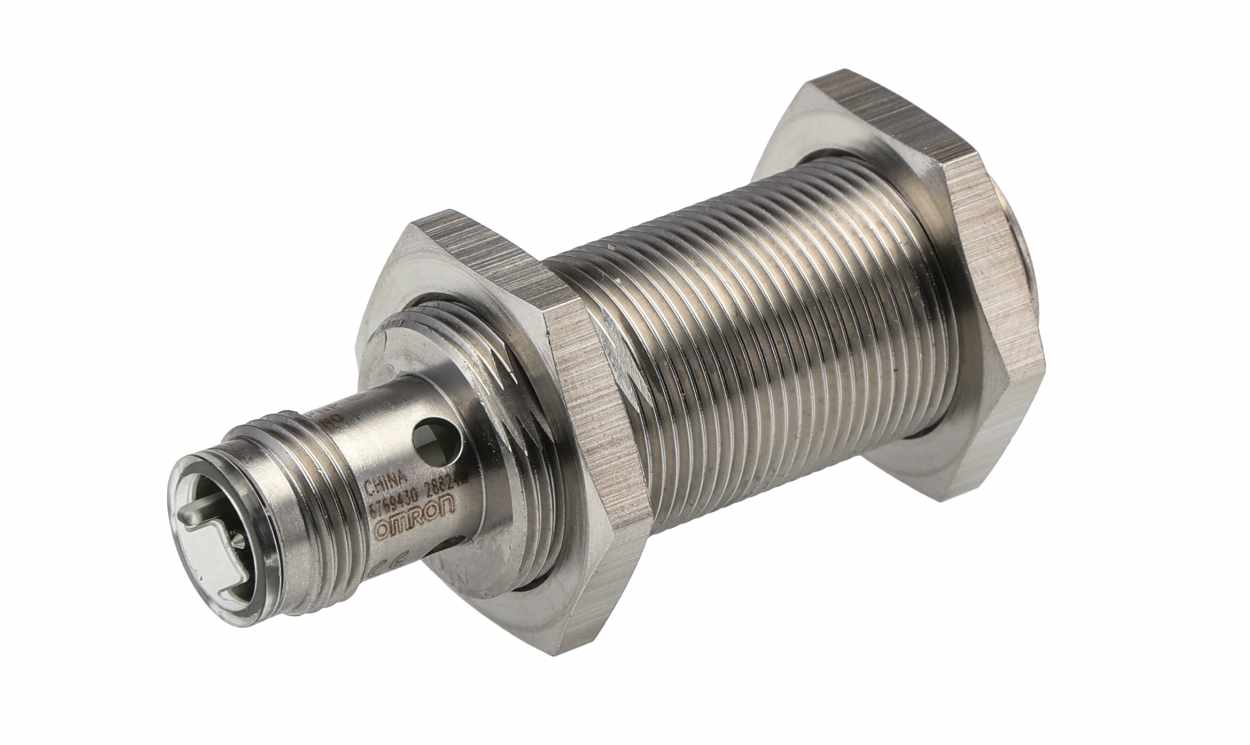

OMRON E2A-S18KS08-M1-B1 | Inductive Proximity Sensor | M18, 8 mm PNP NO, M12 Connector

Name: OMRON E2A-S18KS08-M1-B1 | Inductive Proximity Sensor | M18, 8 mm PNP NO, M12 Connector
Brand: OMRON
SKU: E2A-S18KS08-M1-B1
Availability: InStock

Part Number : E2A-S18KS08-M1-B1

With an 8 mm detection range and a PNP NO output, the OMRON E2A-S18KS08-M1-B1 is an M18 inductive proximity sensor wired through an M12 connector and rated for 12 to 24 V DC.

Flush mounting, stainless steel housing
Output: PNP NO, 200 mA switching current
Supply: 12 to 24 V DC, max. 32 V
Switching frequency: 500 Hz
Protection: IP67, short-circuit protection
Minimum operating temperature: -40 °C

Availability: low stock

Detailed Description
Specifications
Downloads

E2A Short Body Stainless Steel

PBTP sensing face material
LED indication
Current consumption 15mA
Maximum switching current 200mA
Short circuit and reverse polarity protection

Omron E2A Series Proximity Sensor, 8mm Detection Range, Inductive Technology - E2A-S18KS08-M1-B1

This inductive proximity sensor is designed for applications requiring precise detection and reliable performance. With an M18 threaded barrel construction, it offers a compact length of 53mm and operates in demanding environments. This sensor is suited for automation and industrial applications, featuring a robust stainless steel housing that ensures durability.

Features & Benefits

• Detects objects within an 8mm sensing range
• Equipped with a PNP output for easy integration
• IP67 rated for superior dust and water protection
• Supports a wide supply voltage range of 12 to 24V DC
• Flush mount design for seamless installation in machinery
• Short circuit overload and reverse polarity protection enhance reliability

Applications

• Ideal for use in automated assembly lines
• Suitable for position detection in packaging machinery
• Effective in controlling access for industrial equipment
• Utilised in robotics for object detection and avoidance

How does the design support installation flexibility in various setups?

The flush mount design allows for easy integration into equipment, reducing space requirements and enhancing aesthetics. Its versatile M18 thread also accommodates different mounting scenarios.

What electrical specifications should be taken into account when incorporating this sensor?

It operates with a supply voltage between 12 to 24V DC, making it compatible with a variety of control systems that specify PNP output, while providing up to 200 mA of switching current.

What operational temperatures can this sensor withstand in an industrial setting?

It functions effectively in a temperature range from -40 °C to +70 °C, making it suitable for both extreme cold and heat typical in industrial conditions.

What protections are built into the sensor to enhance its operational safety?

It features short circuit overload protection and reverse polarity protection, ensuring longevity and consistent performance even in fluctuating electrical environments.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	53mm
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Maximum Switching Frequency	500Hz
Short Circuit Overload Protection	Yes
Switching Current	200 mA
Series	E2A
Switching Frequency	500 Hz

OMRON E2A-S18KS08-M1-B1 | Inductive Proximity Sensor | M18, 8 mm PNP NO, M12 Connector

DOWNLOAD CATALOG

E2A-S18KS08-M1-B1 Brochure - Inductive Proximity Sensors A700000013143142
