Omron E2B-M12KN08-M1-C1, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, NPN NO, 10 → 30 V dc

Part Number : E2B-M12KN08-M1-C1

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, unshielded, 8 mm, DC, 3-wire, NPN-NO, M12 plug-in

Availability: Sold out

Detailed Description
Specifications
Features

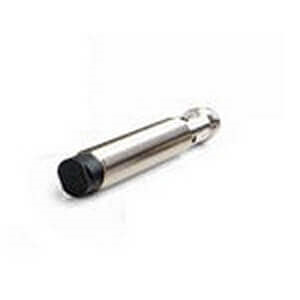

Omron E2B Series Proximity Sensor, 8mm Detection Range, Threaded Barrel Body Style - E2B-M12KN08-M1-C1

This inductive proximity sensor is designed to provide precise detection capabilities in various industrial applications. With its M12 threaded barrel design, it offers an 8mm detection range, making it suitable for compact installations. The sensor operates within a supply voltage of 10 to 30 V DC and features a robust brass housing, ensuring durability in challenging environments.

Features & Benefits

• Inductive technology allows for non-contact detection of metallic objects
• NPN output function provides reliable signal transmission
• Short circuit overload protection enhances operational safety
• Operating temperature range from -25°C to +70°C for versatility

Applications

• Used in automated machinery for part detection
• Effective in assembly lines for quality control
• Suitable for packaging equipment to detect lids or containers
• Used in robotics for object recognition in conveyor systems

What are the benefits of the NPN output function?

The NPN output function enables the sensor to provide a low signal when detecting an object, facilitating direct compatibility with various control systems without additional components, streamlining integration.

How does the IP67 rating affect performance?

An IP67 rating ensures that the sensor is fully dust-tight and can withstand immersion in water up to 1 metre for 30 minutes, making it reliable in harsh conditions and suitable for outdoor use.

What mounting options are available for installation?

The non-flush mounting design allows for easy installation in tight spaces, ensuring that the sensor can be securely fixed to various surfaces without the need for complex modifications.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	51mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Series	E2B
Switching Frequency	800 Hz
Switching Current	200 mA
Maximum Switching Frequency	800Hz
Shielding	Unshielded

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, unshielded, 8 mm, DC, 3-wire, NPN-NO, M12 plug-in
