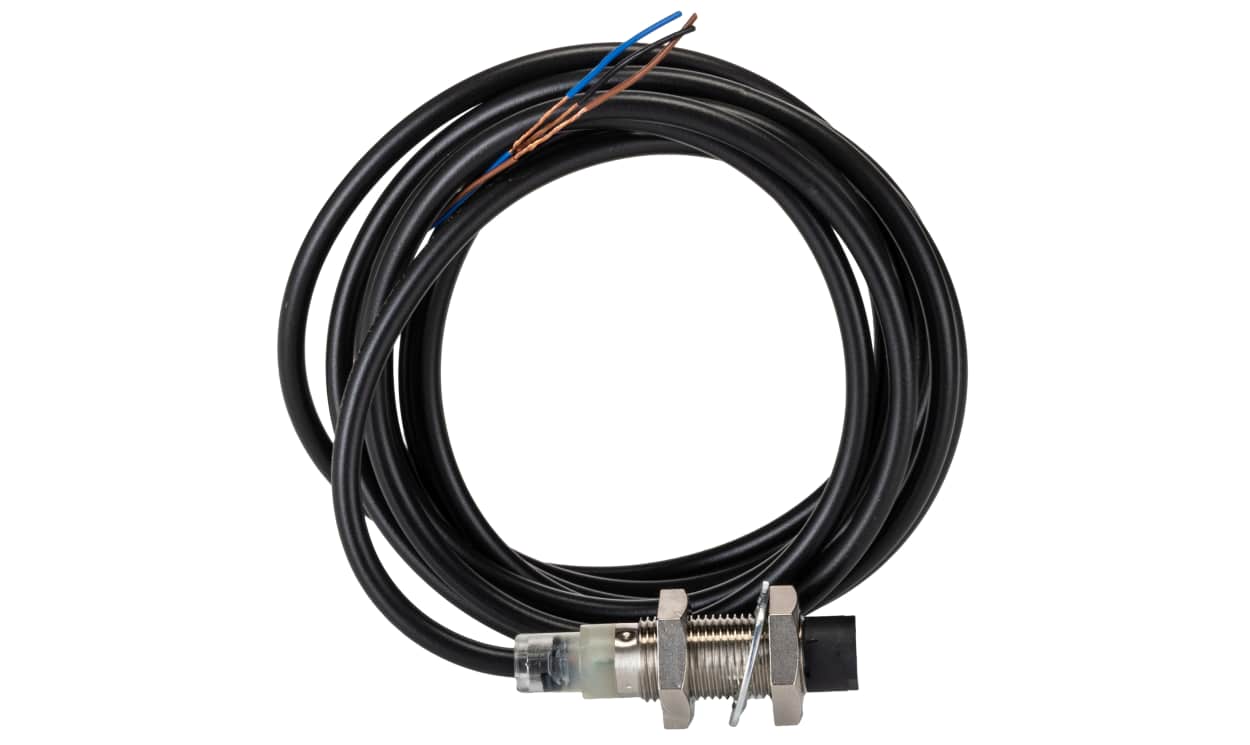

OMRON E2B-M12KN08-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M12, 8 mm, PNP NC, 2 m Cable

Name: OMRON E2B-M12KN08-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M12, 8 mm, PNP NC, 2 m Cable
Brand: OMRON
SKU: E2B-M12KN08-WP-B2 2M
Availability: InStock

Part Number : E2B-M12KN08-WP-B2 2M

OMRON E2B-M12KN08-WP-B2 2M: M12, 8 mm range, PNP-NC inductive threaded-barrel proximity sensor. Wiring is by pre-wired 2 m cable, with a 12 to 24 V DC supply. It is listed as part of the E2B LITE range.

Type: DC, 3-wire
Mounting: non-flush, unshielded
Switching frequency: 800 Hz
Switching current: 200 mA
Housing length: 47 mm (short body)
Housing material: nickel-plated brass

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, 8mm Detection Range, IP67 - E2B-M12KN08-WP-B2 2M

This cylindrical proximity sensor is designed for detecting the presence of objects in industrial settings. Its brass threaded barrel ensures durability and consistent performance in standard environments. With an 8mm detection range and compact dimensions of 47mm in length and 10.5mm in depth, it is suited for various automation applications. The sensor has an IP67 rating, making it effective in challenging conditions.

Features & Benefits

• PNP digital switching sensor for efficient output
• NC output proximity sensor for enhanced control flexibility
• 2m pre-cabled connection for quick installation
• Non-flush mounting facilitates alignment
• IP67 rated for dust and moisture resistance
• Unshielded design appropriate for basic environments

Applications

• Compatible with factory automation systems
• Suitable for material handling and assembly lines
• Employed in packaging machinery for accurate sensing
• Utilised in robotics for position detection
• Appropriate for harsh manufacturing environments

Can it operate in extreme temperatures?

Yes, it functions between -25 and +70°C.

Will it work with non-metallic surfaces?

It is tailored for ferrous metals

the sensing distance reduces with non-ferrous materials.

How does the sensor offer reliable performance?

The sensor offers 360º visibility as well as good visibility in dark locations making it easy to mount it in any direction and still get accuracy.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	47mm
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Frequency	800 Hz
Series	E2B
Switching Current	200 mA
Reverse Polarity Protection	Yes

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, unshielded, 8 mm, DC, 3-wire, PNP-NC, 2 m cable

OMRON E2B-M12KN08-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M12, 8 mm, PNP NC, 2 m Cable

DOWNLOAD CATALOG

E2B-M12KN08-WP-B2 2M Brochure - Inductive Proximity Sensors A700000012598389

E2B-M12KN08-WP-B2 2M Instruction Sheet - E2B Series A700000012598735
