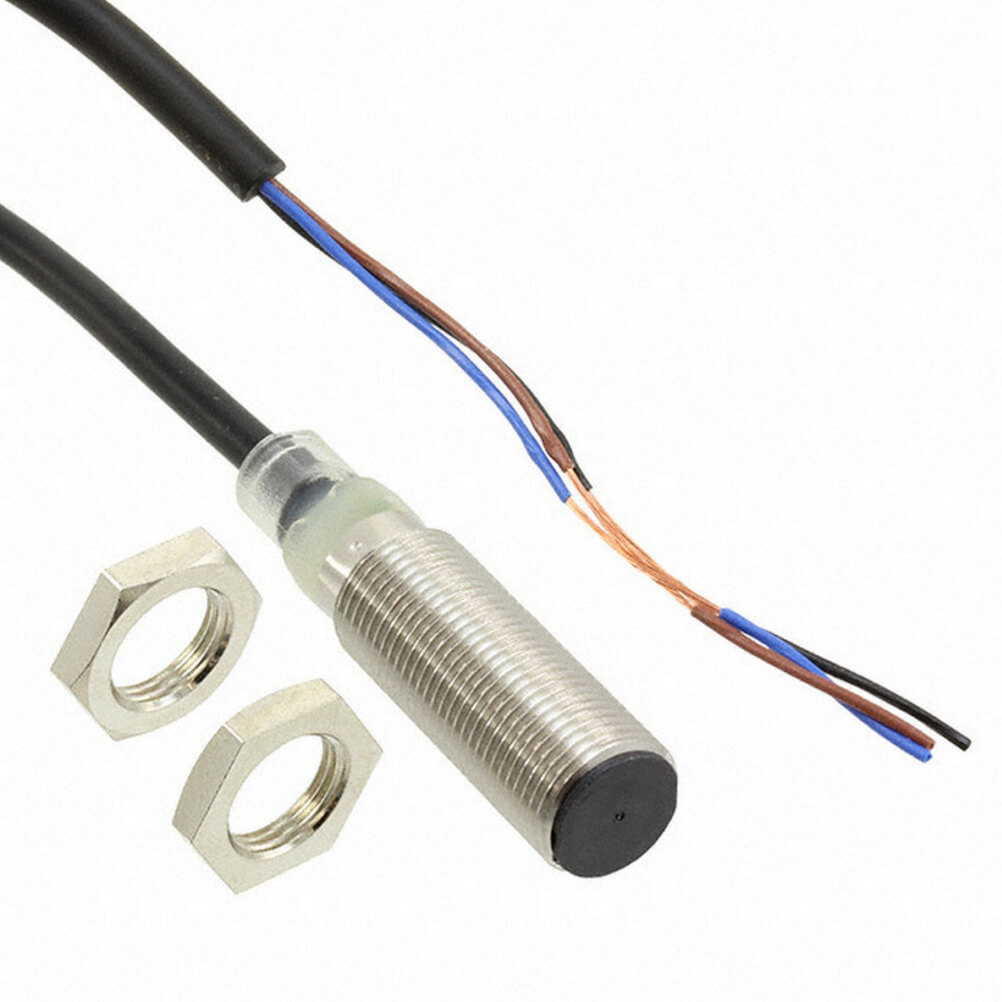

Name: Omron E2B-M12KS04-WP-C1 2M, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, NPN NO, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M12KS04-WP-C1 2M
Availability: OutOfStock

Omron E2B-M12KS04-WP-C1 2M, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, NPN NO, 12 → 24 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E2B-M12KS04-WP-C1 2M, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, NPN NO, 12 → 24 V dc

Part Number : E2B-M12KS04-WP-C1 2M

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, NPN-NO, 2 m cable

Availability: Sold out

Detailed Description
Specifications
Features

Omron E2B Series Proximity Sensor, NO Output Function, IP67 - E2B-M12KS04-WP-C1 2M

This proximity sensor is optimised for precise object detection across various automation and industrial applications. Utilising inductive sensing technology, it detects metal objects at a distance of 4mm. The sensor's robust brass housing enables installation in demanding environments while maintaining functionality.

Features & Benefits

• Employs inductive technology for precise metal detection
• Provides NPN output for smooth integration with systems
• Compact M12 design allows for installation in tight spaces
• IP67 rating offers protection against dust and moisture
• Supplied with a 2m cable for versatile installation options
• Operates within a wide voltage range of 12 to 24V DC

Applications

• Detects metal components in assembly lines
• Monitors item presence in conveyor systems
• Enhances positioning accuracy in robotic automation
• Controls objects in packaging machinery
• Suitable for automotive requiring precise detection

What is the operating temperature range for this device?

The sensor functions effectively between -25°C and +70°C.

How does the reverse polarity protection feature assist during installation?

It prevents damage from incorrect wiring, ensuring durability and performance.

Is this sensor suitable for use in wet environments?

Yes, the IP67 rating provides protection against moisture and dust.

What maintenance does this sensor require?

It requires minimal maintenance

periodic cleaning may be sufficient.

Can it be used with controllers from different manufacturers?

Yes, it is compatible with various controllers that accept NPN output signals.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	30mm
Mounting Type	Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Reverse Polarity Protection	Yes
Short Circuit Overload Protection	Yes
Maximum Switching Frequency	1kHz

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, NPN-NO, 2 m cable
