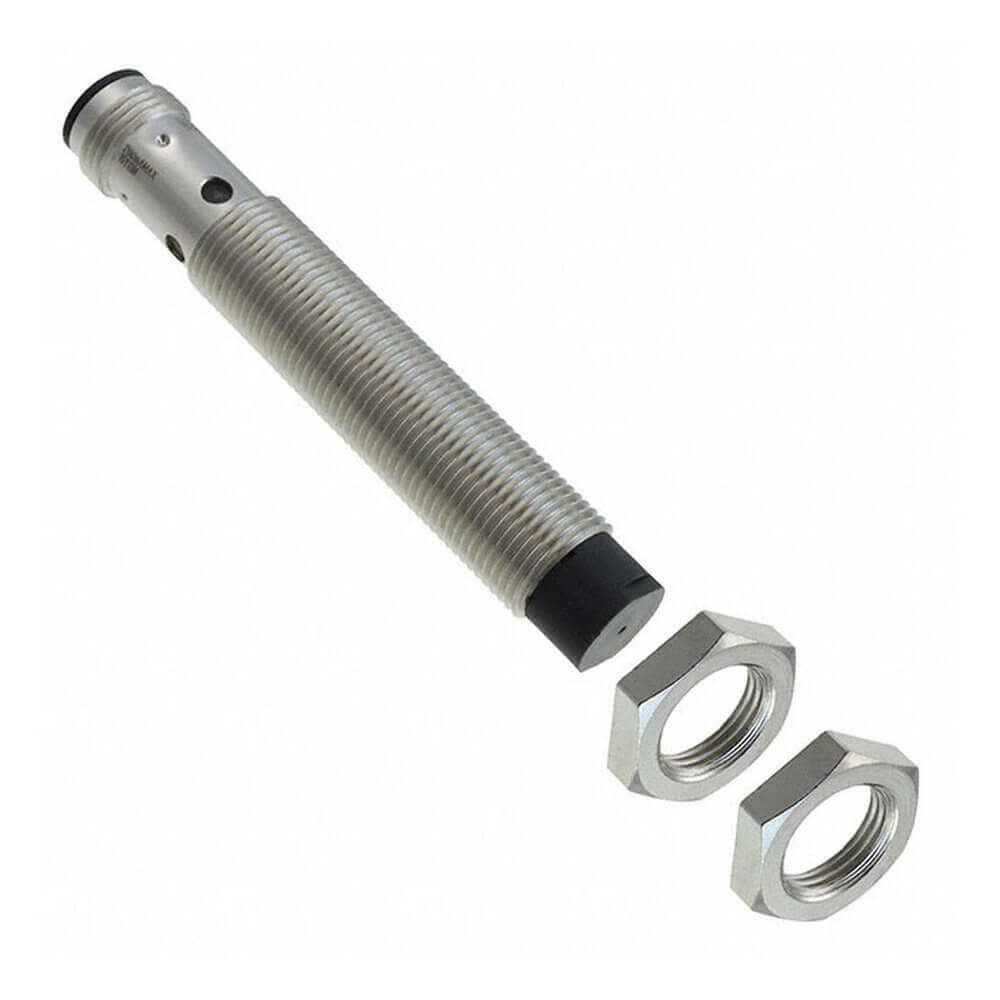

Omron E2B-M12LN08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NC, 12 → 24 V dc

Name: Omron E2B-M12LN08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NC, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M12LN08-M1-B2
Availability: OutOfStock

Part Number : E2B-M12LN08-M1-B2

Proximity sensor, LITE, inductive, nickel-brass, long body, M12, unshielded, 8 mm, DC, 3-wire, PNP-NC, M12 plug-in

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, Inductive Sensor Technology, 8mm Detection Range - E2B-M12LN08-M1-B2

This proximity sensor is an inductive sensing device designed for precise object detection within industrial environments. The brass body construction ensures durability, while its compact dimensions of 54mm in length and 10.5mm in depth enhance versatility in mounting applications. With a robust IP67 rating, this sensor is well shielded against dust and moisture, making it optimal for various operational contexts.

Features & Benefits

• PNP output type enables seamless integration with various systems
• 8mm detection range suited for short-distance sensing applications
• Non-flush body style provides reliable and stable mounting options
• High-frequency response at 800Hz allows for quick detection
• Short circuit overload protection enhances safety and reliability
• Reverse polarity protection ensures reliable performance in various installations

Applications

• Used with machinery for precise positioning
• Ideal for monitoring product presence on conveyor belts
• Utilised in packaging processes to detect object proximity
• Recommended for in harsh environments requiring a moisture-resistant sensor
• Commonly implemented in robotics for detecting parts during assembly

What is the operational temperature range for this sensor?

The sensor operates effectively within a temperature range of -25°C to +70°C, making it suitable for diverse environments.

How does the sensor handle short-circuit conditions?

It is equipped with short circuit overload protection, which allows it to effectively safeguard itself in case of electrical faults, preserving its functionality.

What mounting options are available for this sensor?

The non-flush mounting style allows for flexible installation in various configurations, ensuring stable and secure placement in industrial settings.

Can the sensor be used in wet conditions?

Yes, with an IP67 rating, it is designed to withstand exposure to water and dust, providing reliable performance in humid or wet environments.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	M12
Cable Length	2m
Supply Voltage	12 → 24 V dc
Length	54mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Switching Current	200 mA
Depth	10.5mm
Standards Met	CE, IEC 60529

Proximity sensor, LITE, inductive, nickel-brass, long body, M12, unshielded, 8 mm, DC, 3-wire, PNP-NC, M12 plug-in

Omron E2B-M12LN08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NC, 12 → 24 V dc

DOWNLOAD CATALOG

E2B-M12LN08-M1-B2 Brochure - Perfect for Your Specific Needs A700000013017909

E2B-M12LN08-M1-B2 Instruction Sheet - E2B Series A700000013018881
