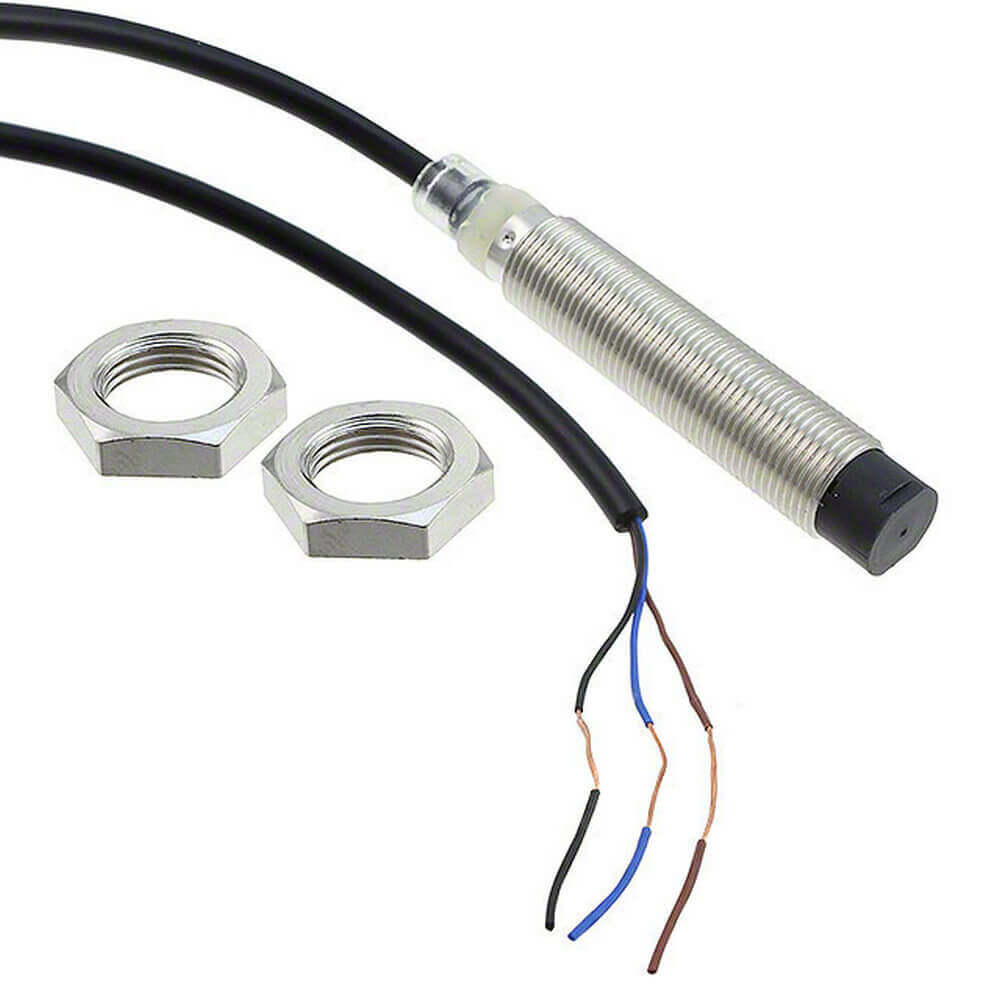

OMRON E2B-M12LN08-WP-B1 2M | Inductive Threaded Barrel Proximity Sensor | M12, 8 mm, PNP NO, 2 m Cable
With a sensing distance of 8 mm, the OMRON E2B-M12LN08-WP-B1 2M is an inductive threaded-barrel proximity sensor in an M12 housing. This version has a PNP normally open (NO) output and a pre-wired 2 m cable. It is listed as part of the E2B LITE range.
- Type: DC, 3-wire
- Supply voltage: 12 to 24 V DC (maximum 30 V DC)
- Mounting: non-flush, unshielded
- Switching current: 200 mA
- Housing length: 53 mm (long body)
- Housing material: nickel-plated brass
- Detailed Description
- Specifications
- Features
- Downloads
Omron E2B Series Proximity Sensor, PNP Output, 8mm Detection Range - E2B-M12LN08-WP-B1 2M
Features & Benefits
• PNP output ensures versatility in signal transmission
• Non-flush mount design facilitates installation in confined spaces
• 2m cable length allows flexible positioning within setups
• Operating temperature range from -25 to +70°C for dependable use
• Unshielded configuration minimises noise interference in controlled environments
Applications
• Employed in conveyor systems for object tracking
• Utilised in automated assembly lines for quality control checks
• Suitable for integration in safety and security systems
• Applicable in various control tasks within industrial automation
What is the best way to install it in a machine?
Can it be used in a humid environment?
How might it perform with different metal types?
Is there guidance for extending the cable?
Does it require any specific maintenance?
| Brand | Omron |
| Series | E2B |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 8 mm (0.315 in) |
| Output Function | NO |
| Connection Type | Pre-Cabled |
| Supply Voltage | 12 → 24 V dc |
| Length | 53 mm (2.09 in) |
| IP Rating | IP67 |
| Digital Switching Output Type | PNP |
| Mounting Type | Non-Flush |
| Thread Size | M12 |
| Switching Current | 200 mA |
| Cable Length | 2 m (6.56 ft) |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Brass |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
Proximity sensor, LITE, inductive, nickel-brass, long body, M12, unshielded, 8 mm, DC, 3-wire, PNP-NO, 2 m cable
