OMRON E2B-M18KN16-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, PNP NO, M12 Connector

Name: OMRON E2B-M18KN16-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, PNP NO, M12 Connector
Brand: OMRON
SKU: E2B-M18KN16-M1-B1
Availability: InStock

Part Number : E2B-M18KN16-M1-B1

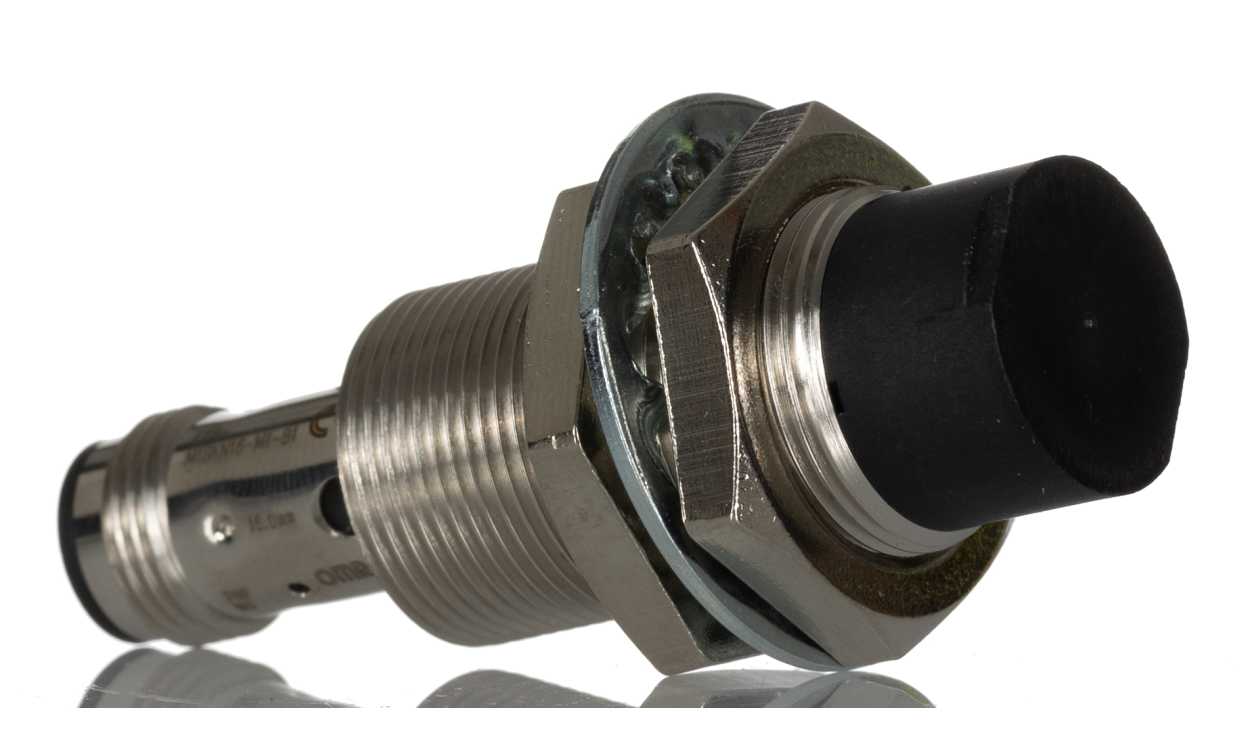

Supplied with an M12 plug-in connector, the OMRON E2B-M18KN16-M1-B1 is an inductive threaded-barrel proximity sensor that detects targets up to 16 mm away. It has an M18 threaded body and a PNP normally open (NO) output. It is listed as part of the E2B LITE range.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: non-flush, unshielded
Switching frequency: 400 Hz
Housing length: 39 mm (short body)
Housing material: nickel-plated brass

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron Proximity Sensor, PNP Output, 12 to 24V DC Supply Voltage - E2B-M18KN16-M1-B1

This Omron proximity sensor is a reliable and high-quality device designed for various industrial applications. With its inductive sensor technology and brass housing, it offers precise detection capabilities in harsh environments. The IP67 rating ensures durability, while the non-flush mounting design provides flexibility in installation. With a PNP output and a 16mm detection range, this sensor is ideal for accurate proximity detection in a wide range of settings.

Features & Benefits

• Utilises inductive sensor technology for accurate proximity detection
• Durable brass housing for reliable performance in harsh conditions
• IP67 rating ensures protection against dust and water ingress
• Non-flush mounting design allows for easy installation in various settings
• PNP output for seamless integration with other systems
• 16mm detection range for precise object detection
• M18 threaded for secure mounting in industrial environments
• High switching frequency of 400 Hz for fast response times

Applications

• Conveyor belt monitoring
• Material handling equipment
• Machine safety systems

Can it detect objects in dusty environments?

Yes, the IP67-rated Omron proximity sensor is designed to withstand dust and water ingress, making it suitable for dusty environments.

Will it work in extreme temperatures?

The Omron proximity sensor has a wide operating temperature range of -25°C to +70°C, ensuring reliable performance in extreme temperature conditions.

Is it easy to install?

With its non-flush mounting design and M18 threading, this sensor is easy to install in a variety of industrial settings, providing flexibility in installation options.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	16 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	39mm
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Series	E2B
Short Circuit Overload Protection	Yes
Switching Frequency	400 Hz
Depth	16.4mm
Reverse Polarity Protection	Yes

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, PNP-NO, M12 plug-in
