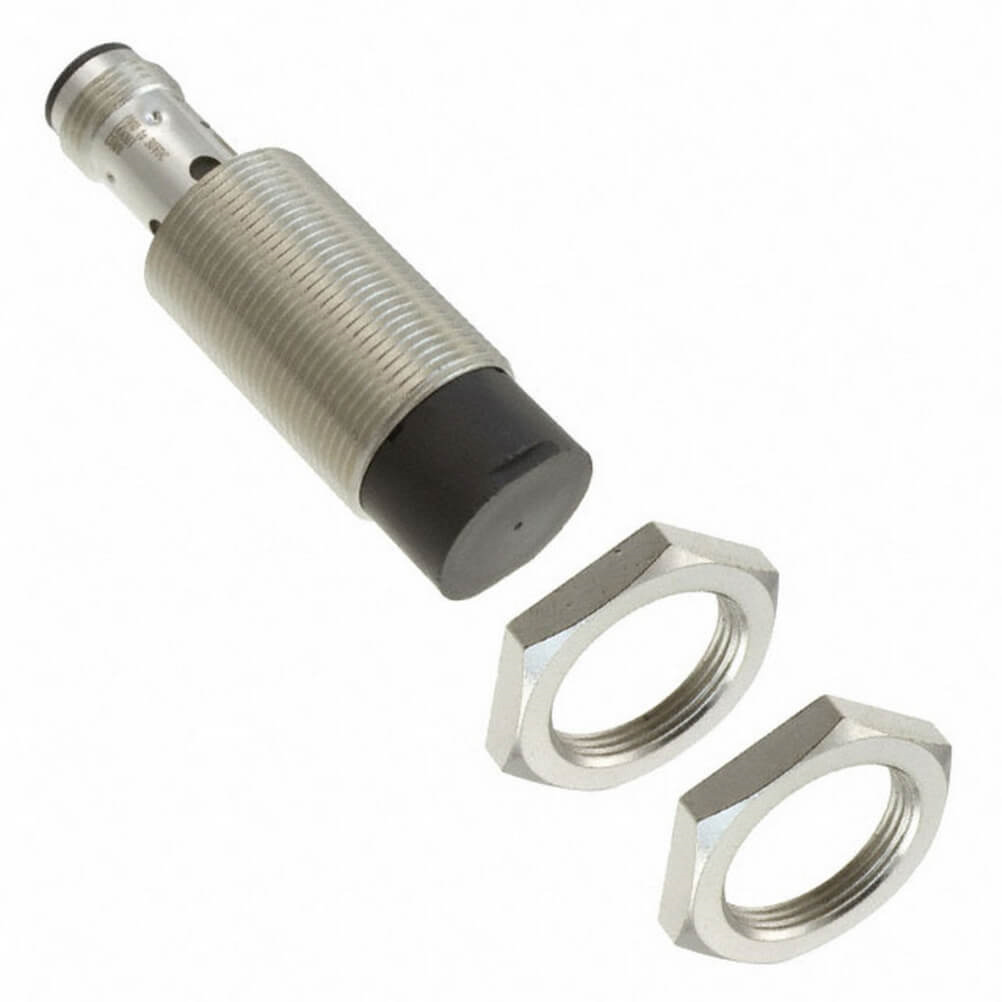

OMRON E2B-M18KN16-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NO, M12 Connector
The OMRON E2B-M18KN16-M1-C1 is an inductive threaded-barrel proximity sensor with an M18 thread and a 16 mm sensing distance. It has an NPN normally open (NO) output and connects via an M12 plug-in connector. It is listed as part of the E2B LITE range.
- Type: DC, 3-wire
- Supply voltage: 10 to 30 V DC
- Switching frequency: 400 Hz
- Housing length: 59 mm (short body)
- Housing material: nickel-plated brass
- Protection rating: IP67
- Detailed Description
- Specifications
- Features
- Downloads
Omron E2B Series Proximity Sensor, 16mm Detection Range, M18 Thread size - E2B-M18KN16-M1-C1
Features & Benefits
• Brass body enhances durability and withstands harsh environments
• Operates within a supply voltage range of 10 to 30 V DC
• Shielded construction minimises signal interference for reliable readings
Applications
• Useful in conveyor systems for object positioning
• Effective in packaging machines for product counting
• Effective for communication in industrial automation setups
• Suitable for non-flush mounting in equipment controls
What operating temperature range can be maintained for this sensor?
How does the brass body contribute to the sensor’s longevity?
What kind of output signal does this sensor generate?
Can this sensor be used in environments with high humidity?
| Brand | Omron |
| Series | E2B |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 16 mm (0.630 in) |
| Output Function | NO |
| Connection Type | M12 |
| Supply Voltage | 10 → 30 V dc |
| Length | 59 mm (2.32 in) |
| IP Rating | IP67 |
| Digital Switching Output Type | NPN |
| Mounting Type | Non-Flush |
| Shielding | Shielded |
| Thread Size | M18 |
| Switching Frequency | 400 Hz |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Housing Material | Brass |
| Depth | 16.4 mm (0.646 in) |
Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, NPN-NO, M12 plug-in
