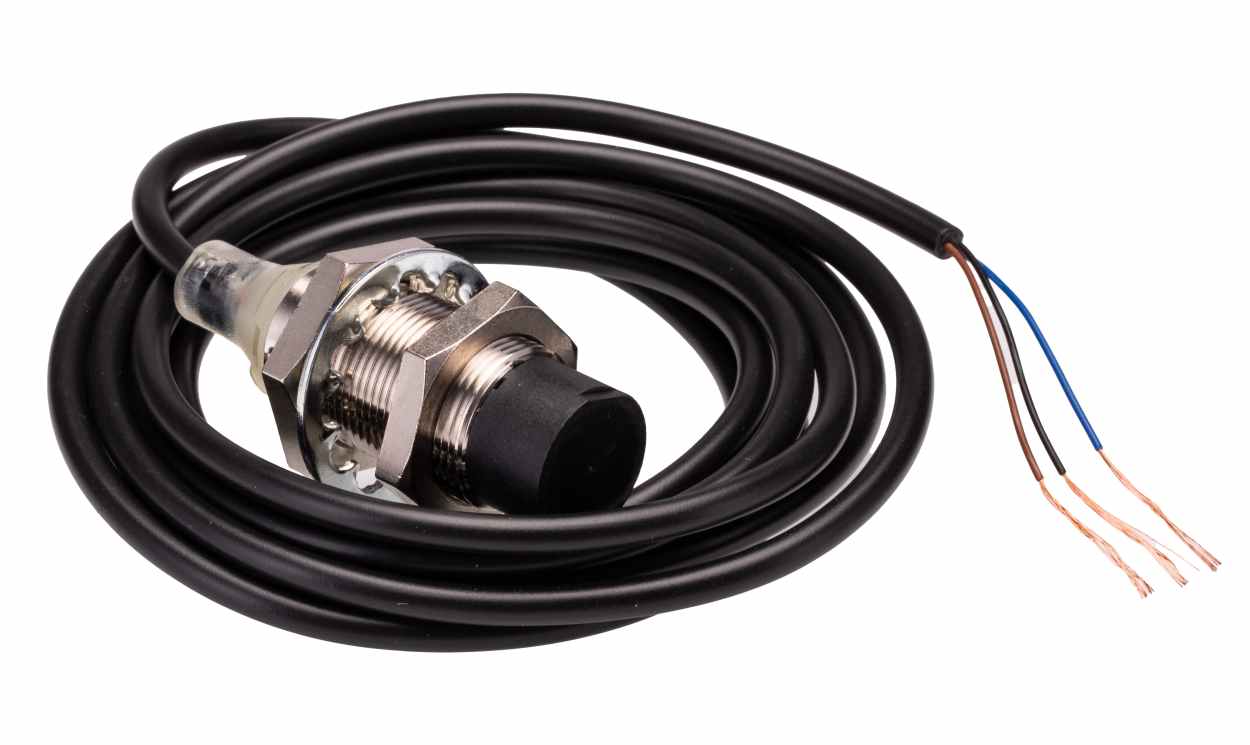

Omron E2B-M18KN16-WP-B2 2M, Inductive Threaded Barrel Proximity Sensor, M18, 16 mm Detection, PNP NC, 12 → 24 V dc

Name: Omron E2B-M18KN16-WP-B2 2M, Inductive Threaded Barrel Proximity Sensor, M18, 16 mm Detection, PNP NC, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M18KN16-WP-B2 2M
Availability: OutOfStock

Part Number : E2B-M18KN16-WP-B2 2M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2B Series Proximity Sensor, 12 to 24V DC Supply Voltage, IP67 - E2B-M18KN16-WP-B2 2M

This inductive proximity sensor enhances automation across various industries. With a robust brass housing and an IP67 rating, it provides durability in challenging environments. It offers a detection range of 16mm, facilitating efficient object monitoring. The non-flush mounted design ensures ease of integration into different applications.

Features & Benefits

• Waterproof design minimises maintenance risks in harsh settings
• Operates effectively in extreme temperatures from -25°C to +70°C
• Long 2m cable simplifies installation and placement

Applications

• Used in automated assembly lines for object detection
• Utilised in conveyor systems to prevent product jams
• Suitable for detecting presence in manufacturing workflows
• Ideal for electronic safety systems ensuring operational efficiency

What is the connection method for this sensor?

The sensor features a pre-cabled connection type for easy installation and integration.

Can this sensor be used in outdoor environments?

Yes, the IP67 rating protects against dust and water immersion, making it suitable for outdoor applications.

What is the maximum load current this sensor can handle?

It can handle a maximum switching current of 200mA, allowing control of various devices.

Is this sensor suitable for high-temperature environments?

Yes, it operates within a temperature range of -25°C to +70°C, suitable for various industrial settings.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	16 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	56mm
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Depth	16.4mm
Maximum Operating Temperature	+70°C
Short Circuit Overload Protection	Yes
Series	E2B

Omron E2B-M18KN16-WP-B2 2M, Inductive Threaded Barrel Proximity Sensor, M18, 16 mm Detection, PNP NC, 12 → 24 V dc

DOWNLOAD CATALOG

E2B-M18KN16-WP-B2 2M Brochure - Inductive Proximity Sensors A700000012779280

E2B-M18KN16-WP-B2 2M Instruction Sheet - E2B Series A700000012781086
